Description

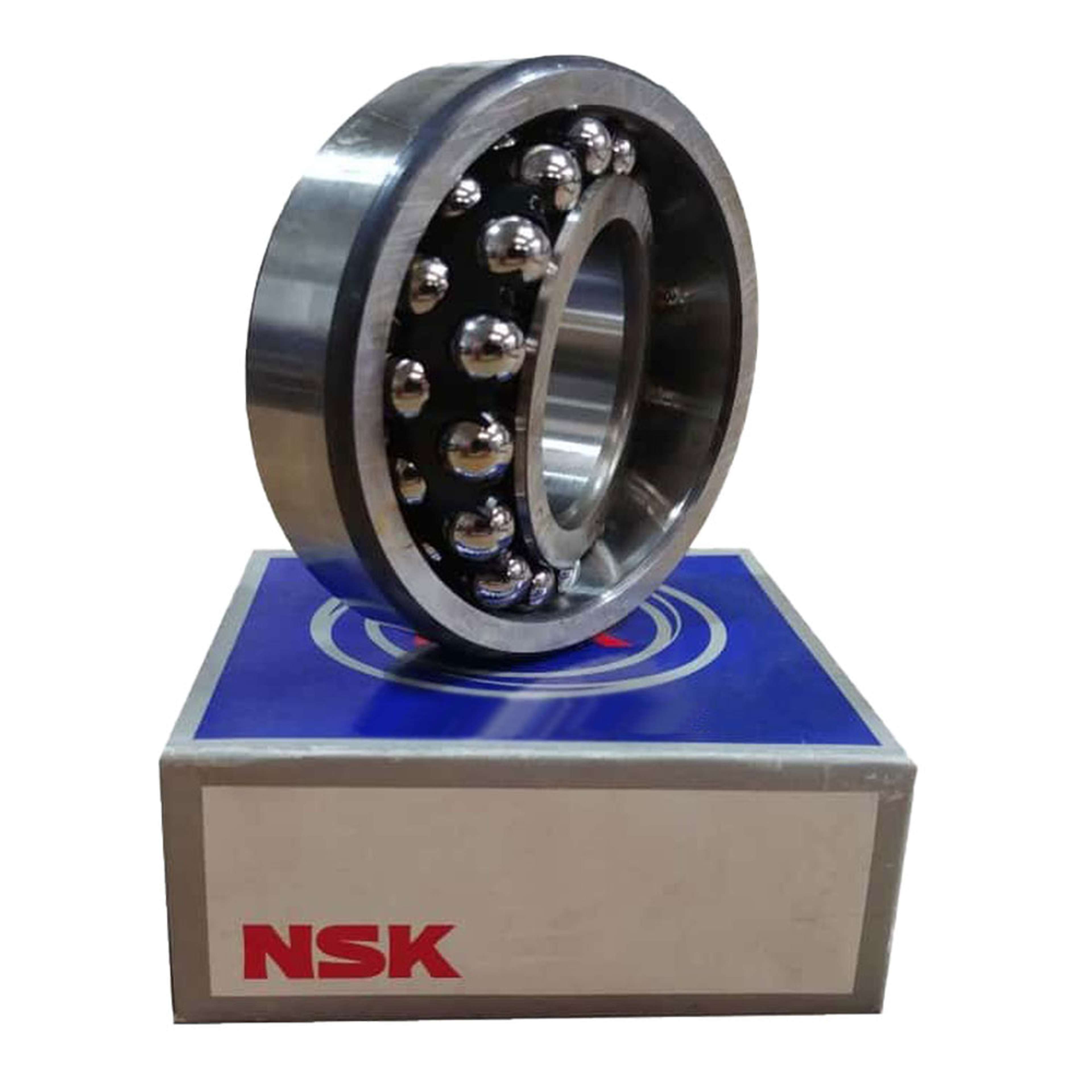

This 1309KTNC3 bearing is a double row, narrow series, metric self aligning bearing with a 1:12 tapered bore, a polyamide cage and a larger than normal radial internal clearance. The bearing's dimensions are 45x100x25.
| 13 | 09 | k | tn | c3 | |
|---|---|---|---|---|---|
| Narrow | Bore Size - 45mm | Tapered Bore (1:12 on Diameter) | PA66 Cage, Ball Centred | Radial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm):
45mm
Outside Diameter (mm):
100mm
Width (mm):
25mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
C3
Dynamic Load Rating (kN):
38.5
Static Load Rating (kN):
12.7
Grease Limiting Speed (r/min):
6000
Oil Limiting Speed (r/min):
7500
DescriptionThis 1309KTNC3 bearing is a double row, narrow series, metric self aligning bearing with a 1:12 tapered bore, a polyamide cage and a larger than normal radial internal clearance. The bearing's dimensions are 45x100x25.
Product InformationBRAND: SKU:1309ktnc3-rhp AVAILABILITY:In Stock ✅ WEIGHT:0.955 kg Technical DataInside Diameter (mm):45mm Outside Diameter (mm):100mm Width (mm):25mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:C3 Dynamic Load Rating (kN):38.5 Static Load Rating (kN):12.7 Grease Limiting Speed (r/min):6000 Oil Limiting Speed (r/min):7500 | ||||||||||||
