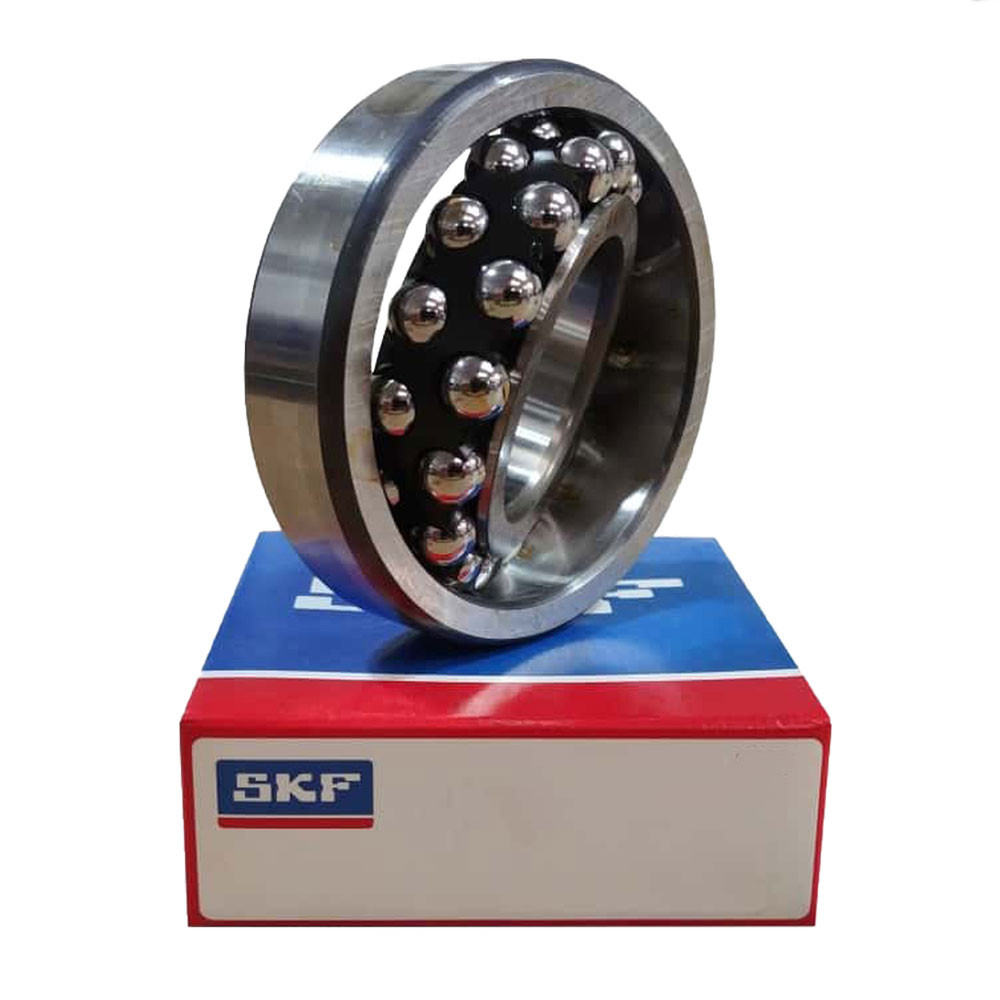

1310EKTN9 - SKF Double Row Self-Aligning Bearing - 50x110x27
SKU: 1310ektn9-skf
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
This 1310EKTN9 bearing is a double row, narrow series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a 1:12 tapered bore, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 50x110x27.
| 13 | 10 | e | k | tn9 | |
|---|---|---|---|---|---|
| Narrow | Bore Size - 50mm | Extra Capacity | Tapered Bore (1:12 on Diameter) | Glass Fibre Reinforced PA66 Cage, Ball Centred | Normal Radial Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm):
50mm
Outside Diameter (mm):
110mm
Width (mm):
27mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
Standard
Dynamic Load Rating (kN):
43.6
Static Load Rating (kN):
14
Fatigue Load Rating (kN):
0.72
Reference Speed Rating (r/min):
12000
Limiting Speed Rating (r/min):
8000
DescriptionThis 1310EKTN9 bearing is a double row, narrow series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a 1:12 tapered bore, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 50x110x27.
Product InformationBRAND: SKU:1310ektn9-skf AVAILABILITY:In Stock ✅ WEIGHT:1.2 kg Technical DataInside Diameter (mm):50mm Outside Diameter (mm):110mm Width (mm):27mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):43.6 Static Load Rating (kN):14 Fatigue Load Rating (kN):0.72 Reference Speed Rating (r/min):12000 Limiting Speed Rating (r/min):8000 | ||||||||||||
