Description

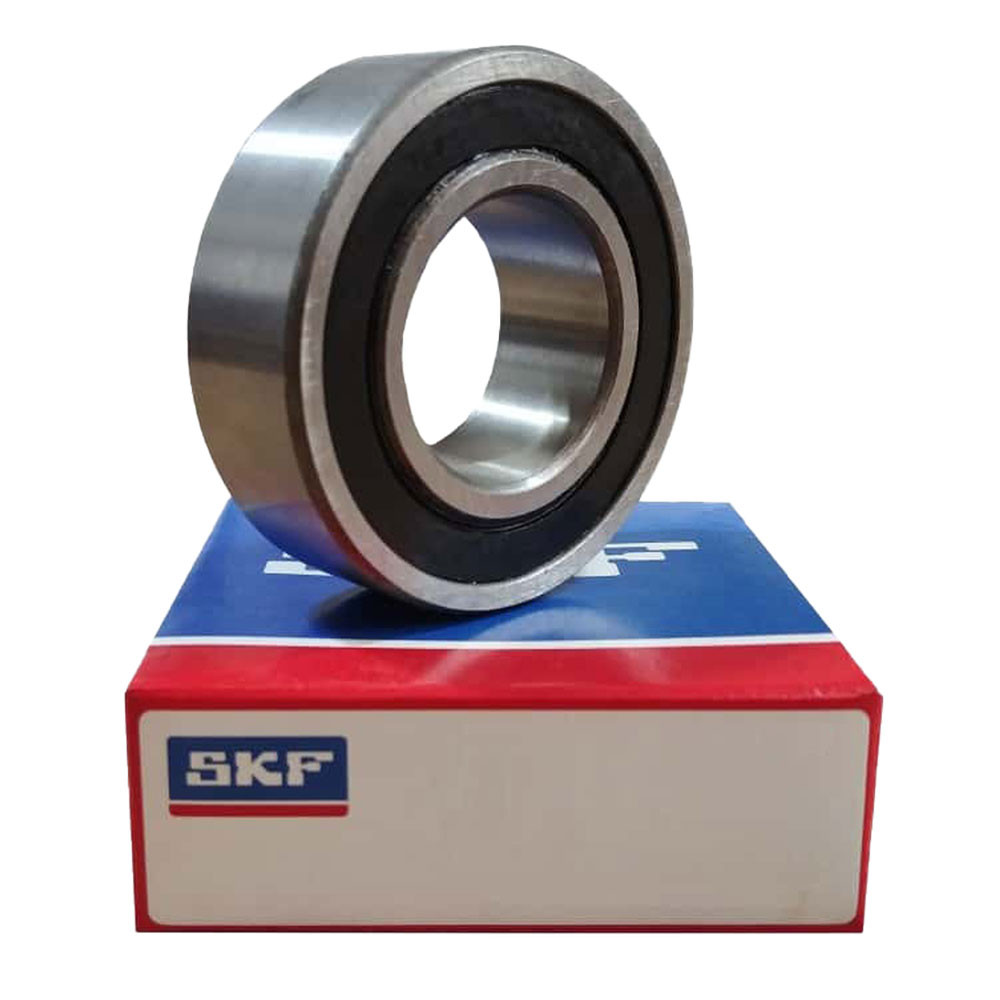

This 2205EKTN9/C3 bearing is a double row, wide series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a 1:12 tapered bore, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 25x52x18.
| 22 | 05 | e | k | tn9 | c3 |
|---|---|---|---|---|---|
| Wide | Bore Size - 25mm | Extra Capacity | Tapered Bore (1:12 on Diameter) | Glass Fibre Reinforced PA66 Cage, Ball Centred | Radial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm):
25mm
Outside Diameter (mm):
52mm
Width (mm):
18mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
C3
Dynamic Load Rating (kN):
16.8
Static Load Rating (kN):
4.4
Fatigue Load Rating (kN):
0.23
Reference Speed Rating (r/min):
26000
Limiting Speed Rating (r/min):
18000
DescriptionThis 2205EKTN9/C3 bearing is a double row, wide series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a 1:12 tapered bore, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 25x52x18.
Product InformationBRAND: SKU:2205ektn9/c3-skf AVAILABILITY:In Stock ✅ WEIGHT:0.16 kg Technical DataInside Diameter (mm):25mm Outside Diameter (mm):52mm Width (mm):18mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:C3 Dynamic Load Rating (kN):16.8 Static Load Rating (kN):4.4 Fatigue Load Rating (kN):0.23 Reference Speed Rating (r/min):26000 Limiting Speed Rating (r/min):18000 | ||||||||||||
