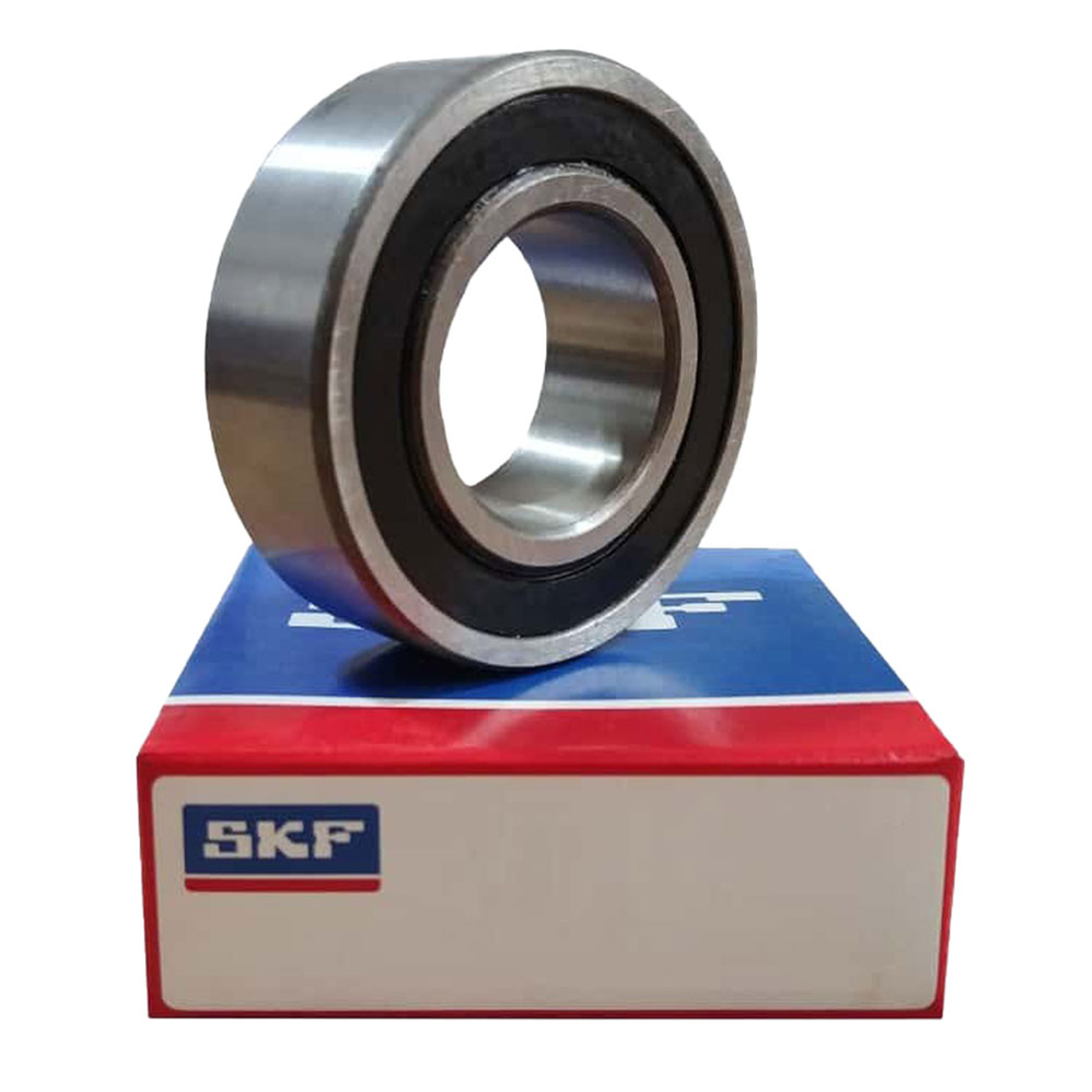

2209EKTN9/C3 - SKF Double Row Self-Aligning Bearing - 45x85x23

Name: 2209EKTN9/C3 - SKF Double Row Self-Aligning Bearing - 45x85x23
Brand: SKF
SKU: 2209ektn9/c3-skf
Availability: InStock

SKU: 2209ektn9/c3-skf

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

C$114.77

2209EKTN9/C3 - SKF Double Row Self-Aligning Bearing - 45x85x23

Description

This 2209EKTN9/C3 bearing is a double row, wide series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a 1:12 tapered bore, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 45x85x23.

22	09	e	k	tn9	c3
Wide	Bore Size - 45mm	Extra Capacity	Tapered Bore (1:12 on Diameter)	Glass Fibre Reinforced PA66 Cage, Ball Centred	Radial Internal Clearance Greater than Normal

Product Information

BRAND:

SKU:2209ektn9/c3-skf

AVAILABILITY:In Stock ✅

WEIGHT:0.55 kg

Technical Data

Inside Diameter (mm):

45mm

Outside Diameter (mm):

85mm

Width (mm):

23mm

Cage Type:

Plastic

Seals Or Shields:

Open Type

Clearance:

Dynamic Load Rating (kN):

32.5

Static Load Rating (kN):

10.6

Fatigue Load Rating (kN):

0.54

Reference Speed Rating (r/min):

15000

Limiting Speed Rating (r/min):

10000

Description

22	09	e	k	tn9	c3
Wide	Bore Size - 45mm	Extra Capacity	Tapered Bore (1:12 on Diameter)	Glass Fibre Reinforced PA66 Cage, Ball Centred	Radial Internal Clearance Greater than Normal

Product Information

BRAND:

SKU:2209ektn9/c3-skf

AVAILABILITY:In Stock ✅

WEIGHT:0.55 kg

Technical Data

Inside Diameter (mm):

45mm

Outside Diameter (mm):

85mm

Width (mm):

23mm

Cage Type:

Plastic

Seals Or Shields:

Open Type

Clearance:

Dynamic Load Rating (kN):

32.5

Static Load Rating (kN):

10.6

Fatigue Load Rating (kN):

0.54

Reference Speed Rating (r/min):

15000

Limiting Speed Rating (r/min):

10000
