FAG

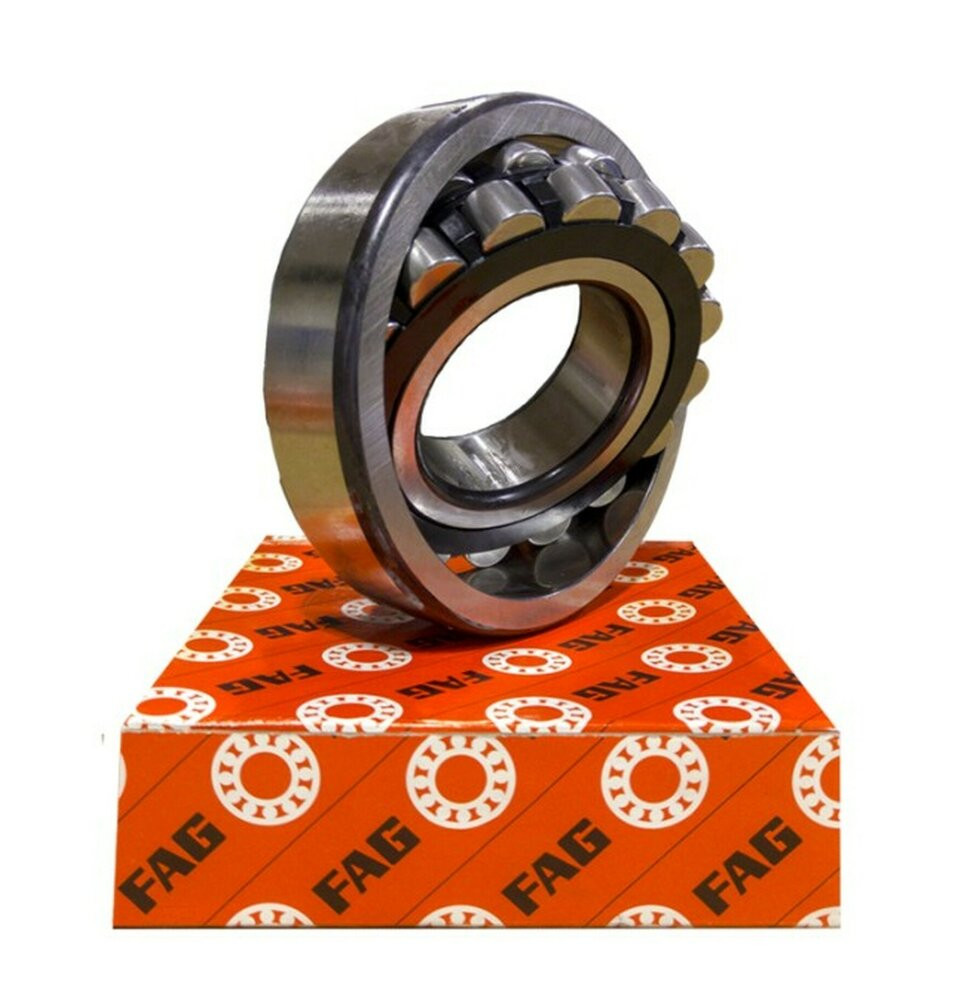

23026-E1-TVPB FAG Spherical Roller Bearing-130x200x52mm

Name: 23026-E1-TVPB FAG Spherical Roller Bearing-130x200x52mm
Brand: FAG
SKU: 23026-e1-tvpb-fag
Availability: InStock

SKU: 23026-e1-tvpb-fag

Availability: In Stock ✅

BULK PRICING:

$891.55

Description

This 23026-E1-TVPB bearing is a Spherical Roller Bearing with an optimized internal design, a glass fibre reinforced cage and a normal radial internal clearance. The bearing's dimensions are 130x200x52.

230	26	E1		TVPB
Light	130mm - Bore Size	High Capacity Internal Design	Cylindrical Bore	Glass Fiber Reinforced Polyamide Cage		Standard Clearance	-

Product Information

BRAND:

SKU:23026-e1-tvpb-fag

AVAILABILITY:In Stock ✅

WEIGHT:5.61 kg

Technical Data

Inside Diameter (mm):

130mm

Outside Diameter (mm):

200mm

Width (mm):

52mm

Clearance:

Standard

Seals Or Shields:

Open Type

Cage Type:

Plastic

Dynamic Load Rating (kN):

540

Fatigue Load Rating (kN):

Limiting Speed Rating (r/min):

3600

Static Load Rating (kN):

730

Reference Speed Rating (r/min):

2600

Description

230	26	E1		TVPB
Light	130mm - Bore Size	High Capacity Internal Design	Cylindrical Bore	Glass Fiber Reinforced Polyamide Cage		Standard Clearance	-

Product Information

BRAND:

SKU:23026-e1-tvpb-fag

AVAILABILITY:In Stock ✅

WEIGHT:5.61 kg

Technical Data

Inside Diameter (mm):

130mm

Outside Diameter (mm):

200mm

Width (mm):

52mm

Clearance:

Standard

Seals Or Shields:

Open Type

Cage Type:

Plastic

Dynamic Load Rating (kN):

540

Fatigue Load Rating (kN):

Limiting Speed Rating (r/min):

3600

Static Load Rating (kN):

730

Reference Speed Rating (r/min):

2600
