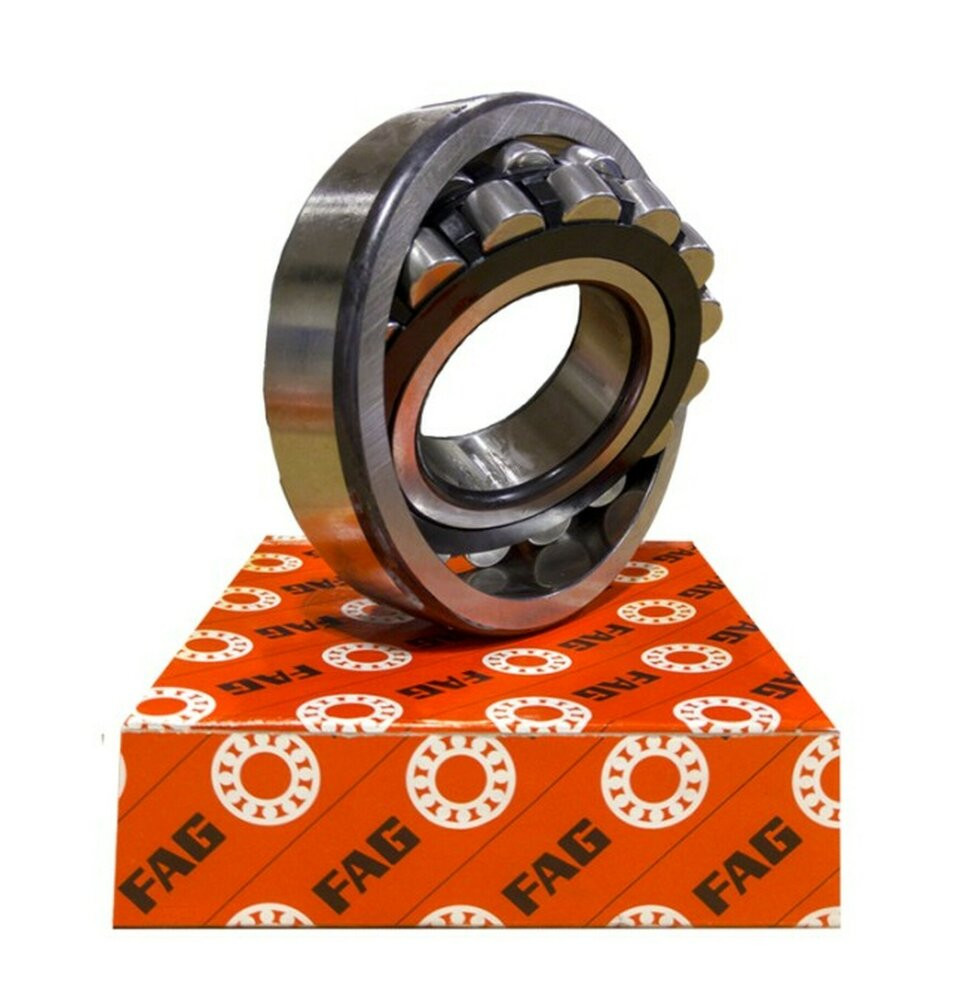

23038-E1-TVPB FAG Spherical Roller Bearing-190x290x75mm

Name: 23038-E1-TVPB FAG Spherical Roller Bearing-190x290x75mm
Brand: FAG
SKU: 23038-e1-tvpb-fag
Availability: InStock

SKU: 23038-e1-tvpb-fag

Availability: In Stock ✅

BULK PRICING:

$2,198.34

Description

This 23038-E1-TVPB bearing is a Spherical Roller Bearing with an optimized internal design, a glass fibre reinforced cage and a normal radial internal clearance. The bearing's dimensions are 190x290x75.

230	38	E1		TVPB
Light	190mm - Bore Size	High Capacity Internal Design	Cylindrical Bore	Glass Fiber Reinforced Polyamide Cage		Standard Clearance	-

Product Information

BRAND:

SKU:23038-e1-tvpb-fag

AVAILABILITY:In Stock ✅

WEIGHT:17.2 kg

Technical Data

Inside Diameter (mm):

190mm

Outside Diameter (mm):

290mm

Width (mm):

75mm

Clearance:

Standard

Seals Or Shields:

Open Type

Cage Type:

Plastic

Dynamic Load Rating (kN):

1080

Fatigue Load Rating (kN):

180

Limiting Speed Rating (r/min):

2400

Static Load Rating (kN):

1550

Reference Speed Rating (r/min):

1660
