Description

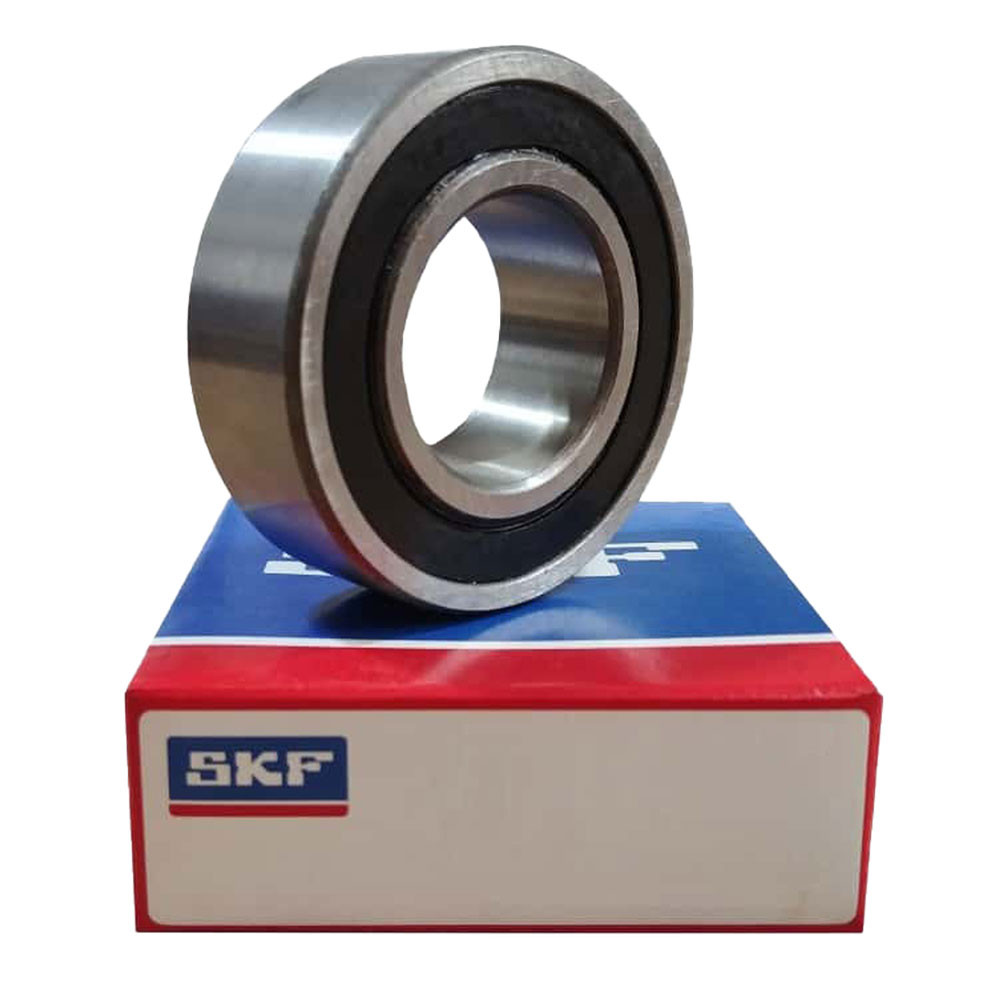

This 2309E-2RS1TN9/W64 bearing is a double row, extra wide series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a rubber seal on both sides of the bearing, a glass fibre reinforced PA66 cage, solid oil and a larger than normal radial internal clearance. The bearing's dimensions are 45x100x36.
| 23 | 09 | e | 2rs1 | tn9 | w64 | |
|---|---|---|---|---|---|---|
| Extra Wide | Bore Size - 45mm | Extra Capacity | Double Contact Seal | Glass Fibre Reinforced PA66 Cage, Ball Centred | Normal Radial Internal Clearance | Solid oil |
Product Information
Technical Data
Inside Diameter (mm):
45mm
Outside Diameter (mm):
100mm
Width (mm):
36mm
Cage Type:
Plastic
Seals Or Shields:
Two Rubber Seals
Clearance:
Standard
Dynamic Load Rating (kN):
63.7
Static Load Rating (kN):
19.3
Fatigue Load Rating (kN):
1
Limiting Speed Rating (r/min):
4500
DescriptionThis 2309E-2RS1TN9/W64 bearing is a double row, extra wide series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a rubber seal on both sides of the bearing, a glass fibre reinforced PA66 cage, solid oil and a larger than normal radial internal clearance. The bearing's dimensions are 45x100x36.
Product InformationBRAND: SKU:2309e-2rs1tn9/w64-skf AVAILABILITY:In Stock ✅ WEIGHT:1.25 kg Technical DataInside Diameter (mm):45mm Outside Diameter (mm):100mm Width (mm):36mm Cage Type:Plastic Seals Or Shields:Two Rubber Seals Clearance:Standard Dynamic Load Rating (kN):63.7 Static Load Rating (kN):19.3 Fatigue Load Rating (kN):1 Limiting Speed Rating (r/min):4500 | ||||||||||||||
