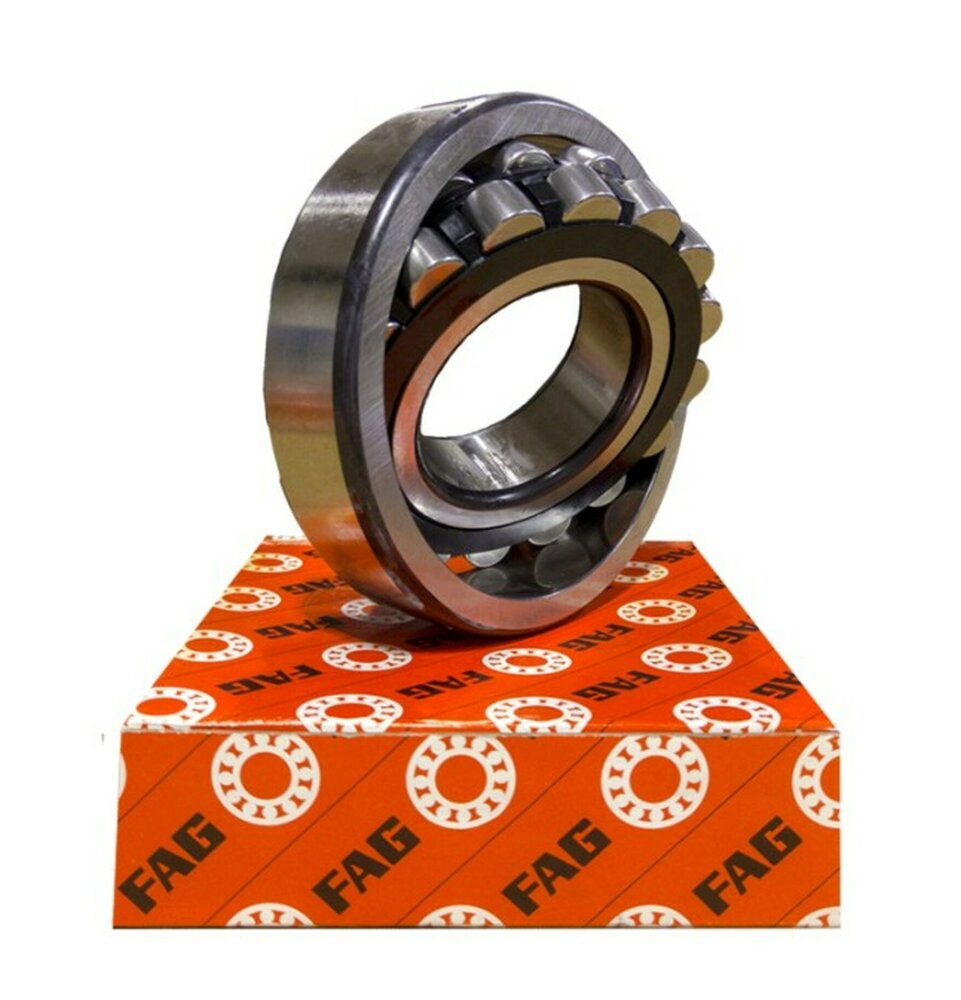

23220-E1-TVPB FAG Spherical Roller Bearing-100x180x60.3mm

Name: 23220-E1-TVPB FAG Spherical Roller Bearing-100x180x60.3mm
Brand: FAG
SKU: 23220-e1-tvpb-fag
Availability: InStock

SKU: 23220-e1-tvpb-fag

Availability: In Stock ✅

BULK PRICING:

$838.42

Description

This 23220-E1-TVPB bearing is a Spherical Roller Bearing with an optimized internal design, a glass fibre reinforced cage and a normal radial internal clearance. The bearing's dimensions are 100x180x60.3.

232	20	E1		TVPB
Heavy, Wide	100mm - Bore Size	High Capacity Internal Design	Cylindrical Bore	Glass Fiber Reinforced Polyamide Cage		Standard Clearance	-

Product Information

BRAND:

SKU:23220-e1-tvpb-fag

AVAILABILITY:In Stock ✅

WEIGHT:6.32 kg

Technical Data

Inside Diameter (mm):

100mm

Outside Diameter (mm):

180mm

Width (mm):

60.3mm

Clearance:

Standard

Seals Or Shields:

Open Type

Cage Type:

Plastic

Dynamic Load Rating (kN):

550

Fatigue Load Rating (kN):

Limiting Speed Rating (r/min):

3600

Static Load Rating (kN):

660

Reference Speed Rating (r/min):

2410

Description

232	20	E1		TVPB
Heavy, Wide	100mm - Bore Size	High Capacity Internal Design	Cylindrical Bore	Glass Fiber Reinforced Polyamide Cage		Standard Clearance	-

Product Information

BRAND:

SKU:23220-e1-tvpb-fag

AVAILABILITY:In Stock ✅

WEIGHT:6.32 kg

Technical Data

Inside Diameter (mm):

100mm

Outside Diameter (mm):

180mm

Width (mm):

60.3mm

Clearance:

Standard

Seals Or Shields:

Open Type

Cage Type:

Plastic

Dynamic Load Rating (kN):

550

Fatigue Load Rating (kN):

Limiting Speed Rating (r/min):

3600

Static Load Rating (kN):

660

Reference Speed Rating (r/min):

2410
