Description

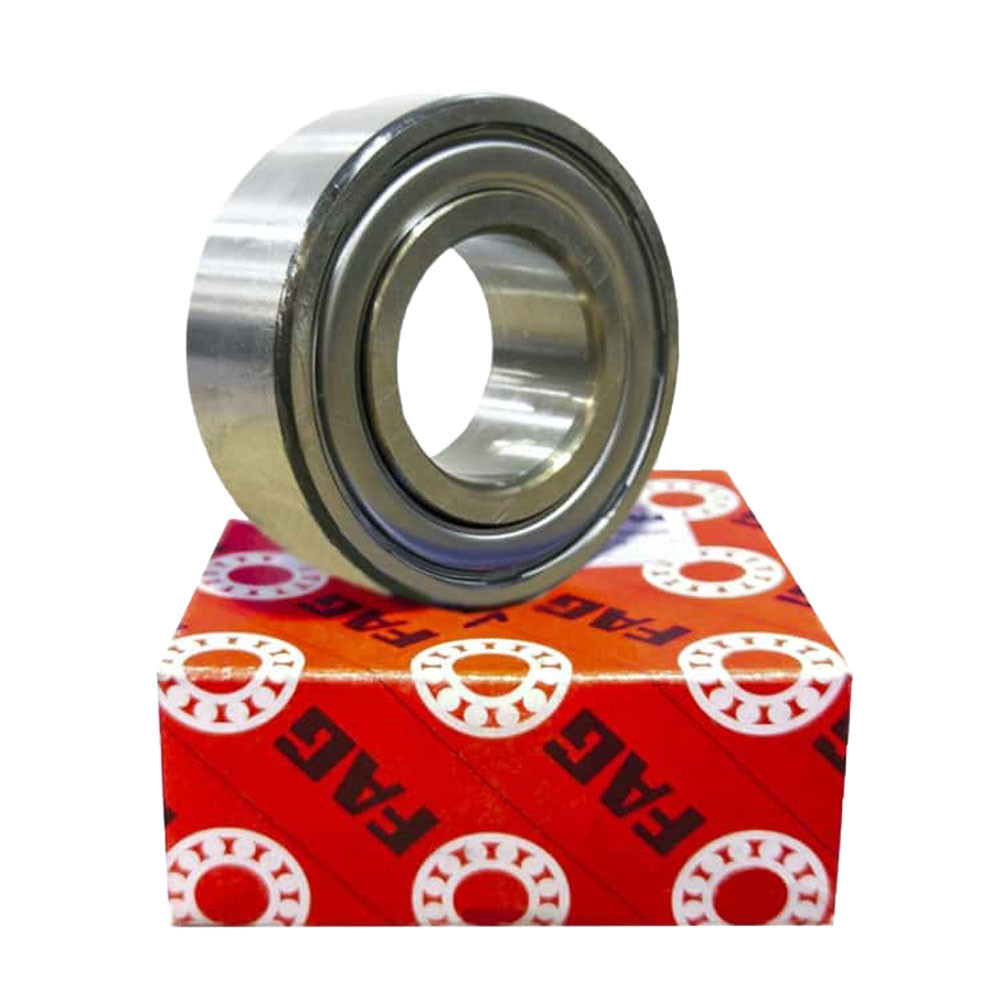

This 3200-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 10x30x14mm.
| 32 | 00 | B | 2Z | TVH | |
|---|---|---|---|---|---|
| Maximum Capacity, Light Series | 10mm - Bore Size | Modified Internal Construction | Gap Seals on Both Sides | Solid Polyamide Snap Cage, Ball Guided | Normal Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm):
10mm
Outside Diameter (mm):
30mm
Width (mm):
14mm
Cage Type:
Plastic
Seals Or Shields:
Two Metal Shields
Clearance:
Standard
Dynamic Load Rating (kN):
7.8
Static Load Rating (kN):
4.55
Fatigue Load Rating (kN):
0.223
Reference Speed Rating (r/min):
19300
Limiting Speed Rating (r/min):
16000
DescriptionThis 3200-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 10x30x14mm.
Product InformationBRAND: SKU:3200-b-2z-tvh-fag AVAILABILITY:In Stock ✅ WEIGHT:0.051 kg Technical DataInside Diameter (mm):10mm Outside Diameter (mm):30mm Width (mm):14mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:Standard Dynamic Load Rating (kN):7.8 Static Load Rating (kN):4.55 Fatigue Load Rating (kN):0.223 Reference Speed Rating (r/min):19300 Limiting Speed Rating (r/min):16000 | ||||||||||||
