Koyo

32009XA - Koyo Metric Taper Roller Bearing - 45x75x20mm

Name: 32009XA - Koyo Metric Taper Roller Bearing - 45x75x20mm
Brand: Koyo
SKU: 32009xa-koyo
Availability: InStock

SKU: 32009xa-koyo

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

C$50.97

Description

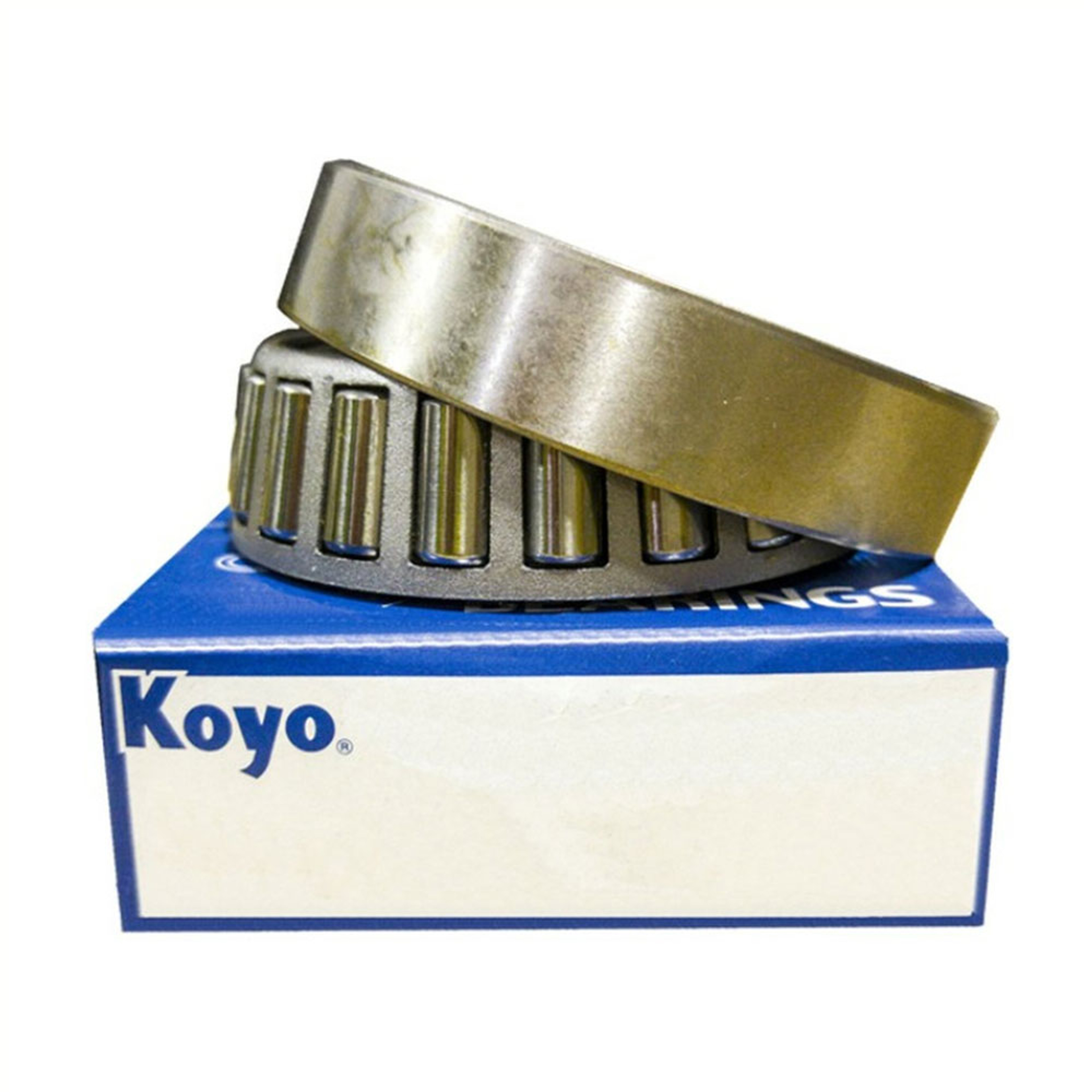

This 32009XA bearing is a metric taper roller bearing. The bearing's dimensions are 45x75x20mm

3	20	09	XA
Tapered Roller	Very Light Series, Wide	45mm - Bore Size	ISO bearing with same boundary dimensions as basic part number but with different internal geometry, yielding increased rating.

Product Information

BRAND:

SKU:32009xa-koyo

AVAILABILITY:In Stock ✅

WEIGHT:0.354 kg

Technical Data

Inside Diameter (mm):

45mm

Outside Diameter (mm):

75mm

Width (mm):

20mm

Cage Type:

Steel

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

78.8

Static Load Rating (kN):

86.5

Fatigue Load Rating (kN):

12.6

Grease Limiting Speed (r/min):

5000

Oil Limiting Speed (r/min):

6600
