Description

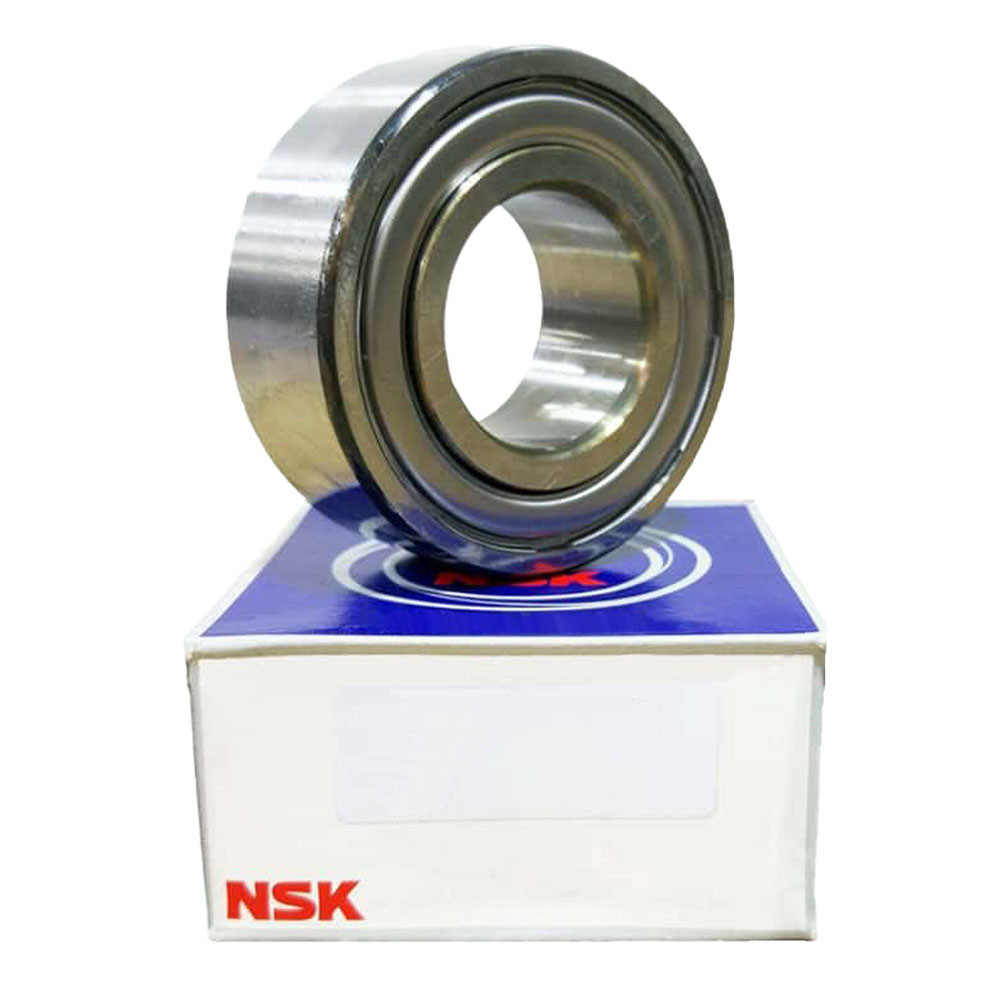

This 3201B-2ZTNC3 bearing is a metric double row angular contact bearing with a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage, and a larger than normal radial internal clearance. The bearing's dimensions are 12x32x15.9mm.
| 32 | 01 | B | 2Z | TN | C3 | |
|---|---|---|---|---|---|---|
| Light Series | 12mm - Bore Size | 25° Contact Angle and No Filling Slot | Metal Shields on Both Sides | Polyamide Cage | Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm):
12mm
Outside Diameter (mm):
32mm
Width (mm):
15.9mm
Cage Type:
Plastic
Seals Or Shields:
Two Metal Shields
Clearance:
C3
Dynamic Load Rating (kN):
11.1
Grease Limiting Speed (r/min):
15000
Oil Limiting Speed (r/min):
20000
Static Load Rating (kN):
5.65
DescriptionThis 3201B-2ZTNC3 bearing is a metric double row angular contact bearing with a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage, and a larger than normal radial internal clearance. The bearing's dimensions are 12x32x15.9mm.
Product InformationBRAND: SKU:3201b-2ztnc3-nsk AVAILABILITY:In Stock ✅ WEIGHT:0.069 kg Technical DataInside Diameter (mm):12mm Outside Diameter (mm):32mm Width (mm):15.9mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:C3 Dynamic Load Rating (kN):11.1 Grease Limiting Speed (r/min):15000 Oil Limiting Speed (r/min):20000 Static Load Rating (kN):5.65 | ||||||||||||||
