FAG
SKU: 3202-b-tvh-fag
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

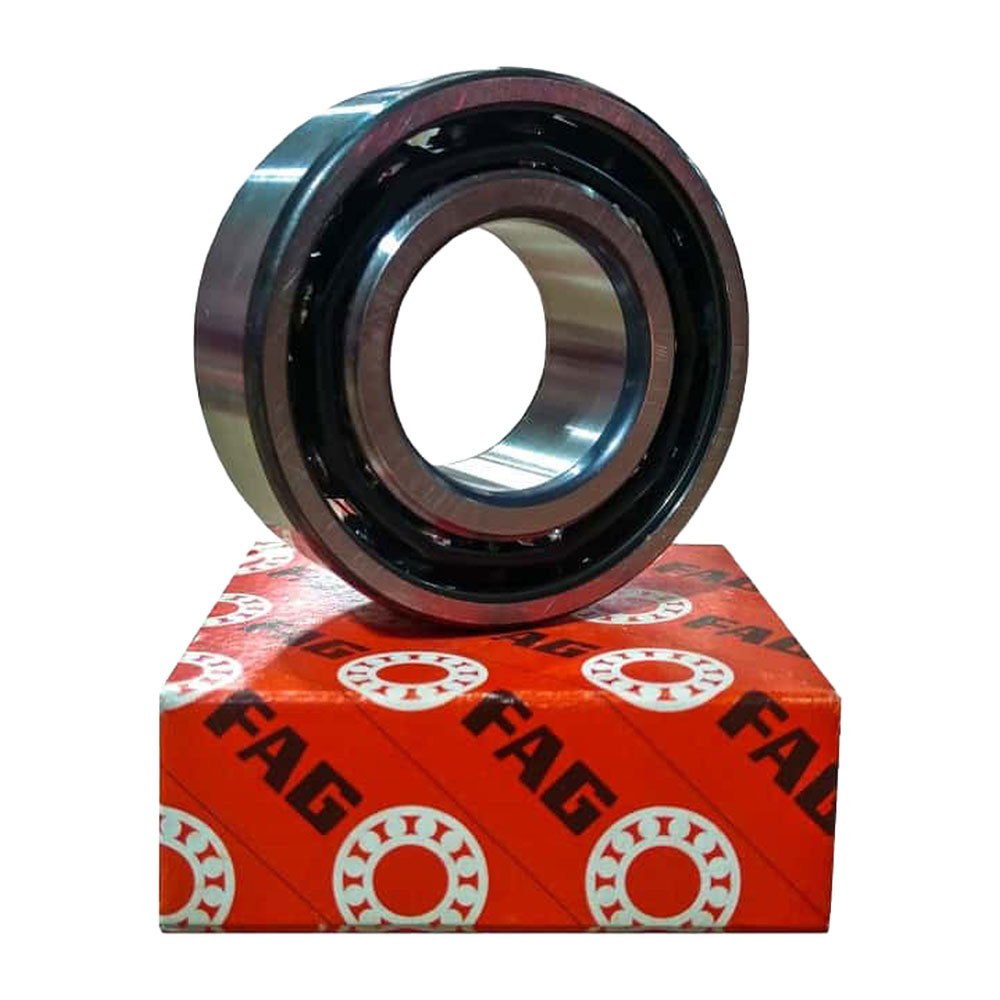

This 3202-B-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a solid cage made from glass fibre reinforced polyamide and a normal radial internal clearance. The bearing's dimensions are 15x35x15.9mm.
| 32 | 02 | B | TVH | ||
|---|---|---|---|---|---|
| Maximum Capacity, Light Series | 15mm - Bore Size | Modified Internal Construction | Open Type | Solid Polyamide Snap Cage, Ball Guided | Normal Internal Clearance |
15mm
35mm
15.9mm
Plastic
Open Type
Standard
11.8
7.1
0.36
17100
19000
DescriptionThis 3202-B-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a solid cage made from glass fibre reinforced polyamide and a normal radial internal clearance. The bearing's dimensions are 15x35x15.9mm.
Product InformationBRAND: SKU:3202-b-tvh-fag AVAILABILITY:In Stock ✅ WEIGHT:0.065 kg Technical DataInside Diameter (mm):15mm Outside Diameter (mm):35mm Width (mm):15.9mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):11.8 Static Load Rating (kN):7.1 Fatigue Load Rating (kN):0.36 Reference Speed Rating (r/min):17100 Limiting Speed Rating (r/min):19000 | ||||||||||||
