Description

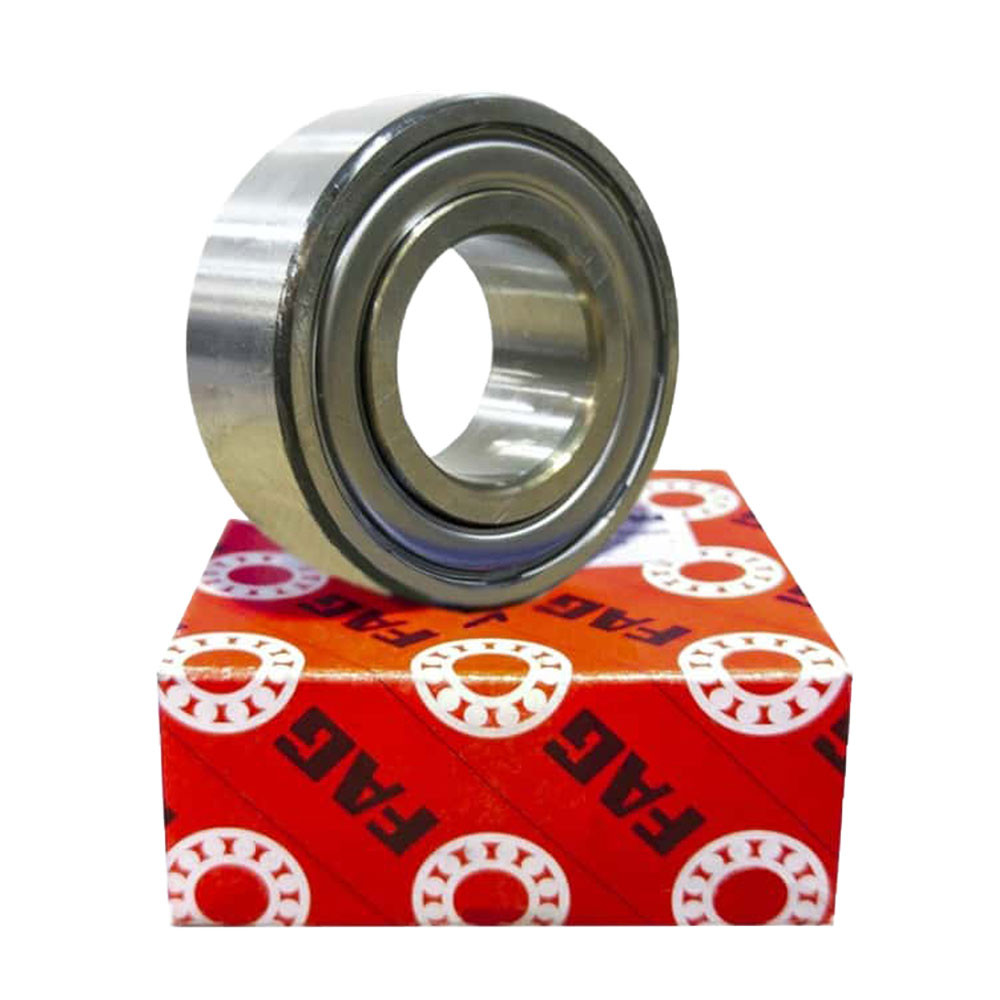

This 3203-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 17x40x17.5mm.
| 32 | 03 | B | 2Z | TVH | |
|---|---|---|---|---|---|
| Maximum Capacity, Light Series | 17mm - Bore Size | Modified Internal Construction | Gap Seals on Both Sides | Solid Polyamide Snap Cage, Ball Guided | Normal Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm):
17mm
Outside Diameter (mm):
40mm
Width (mm):
17.5mm
Cage Type:
Plastic
Seals Or Shields:
Two Metal Shields
Clearance:
Standard
Dynamic Load Rating (kN):
14.6
Static Load Rating (kN):
9
Fatigue Load Rating (kN):
0.42
Reference Speed Rating (r/min):
15500
Limiting Speed Rating (r/min):
12000
DescriptionThis 3203-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 17x40x17.5mm.
Product InformationBRAND: SKU:3203-b-2z-tvh-fag AVAILABILITY:In Stock ✅ WEIGHT:0.095 kg Technical DataInside Diameter (mm):17mm Outside Diameter (mm):40mm Width (mm):17.5mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:Standard Dynamic Load Rating (kN):14.6 Static Load Rating (kN):9 Fatigue Load Rating (kN):0.42 Reference Speed Rating (r/min):15500 Limiting Speed Rating (r/min):12000 | ||||||||||||
