NSK
SKU: 3205b-2znrtnc3-nsk
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

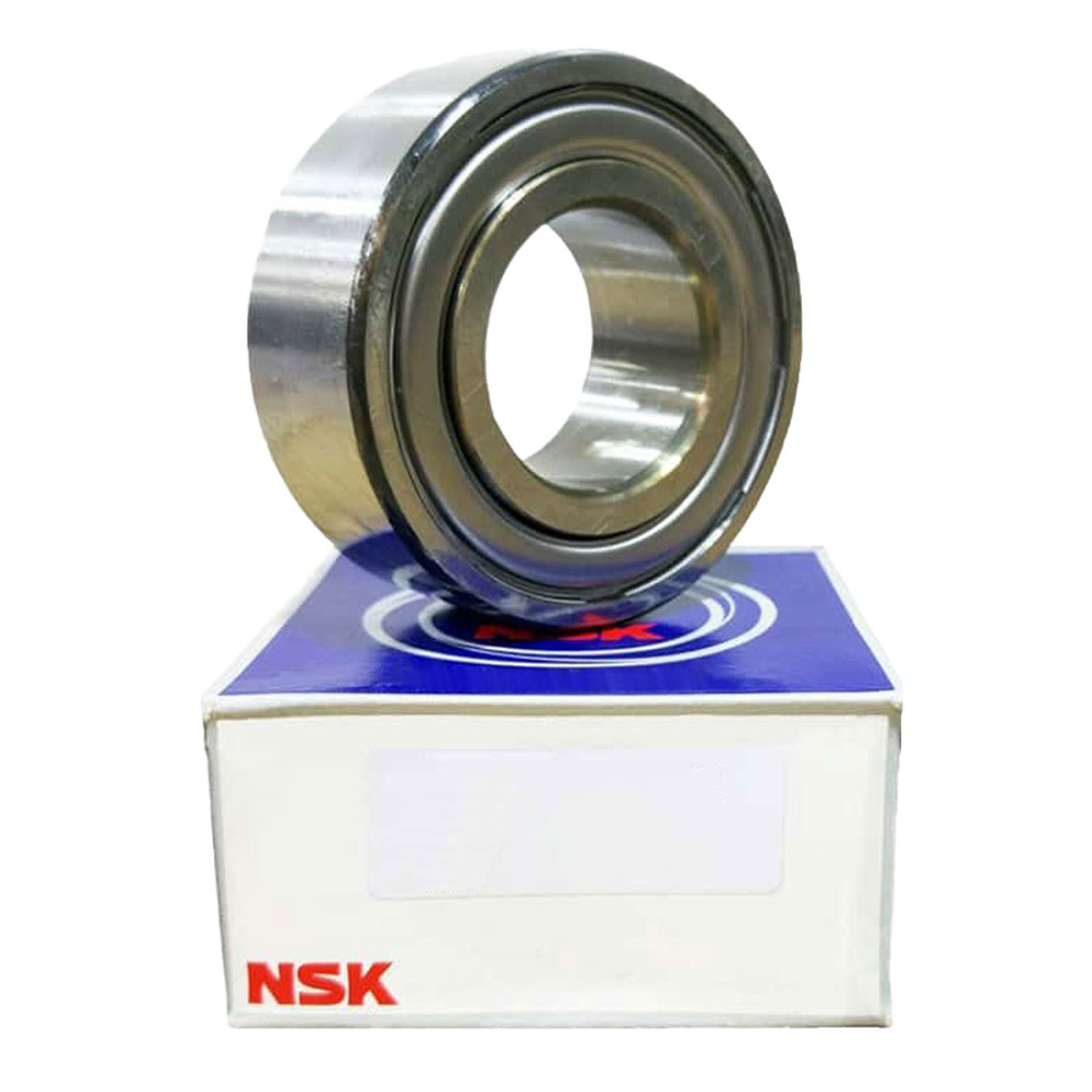

This 3205B 2ZNRTNC3 bearing is a metric double row angular contact bearing with a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage, a snap ring groove in the outer ring with appropriate snap ring and a larger than normal radial internal clearance. The bearing's dimensions are 25x52x20.6.
| 32 | 05 | B | 2Z | NR | TN | C3 |
|---|---|---|---|---|---|---|
| Light Series | 25mm - Bore Size | 25° Contact Angle and No Filling Slot | Metal Shields on Both Sides | Snap Ring Groove with Snap Ring | Polyamide Cage | Internal Clearance Greater than Normal |
25mm
52mm
20.6mm
Plastic
Two Metal Shields
C3
20.9
14.1
8000
11000
DescriptionThis 3205B 2ZNRTNC3 bearing is a metric double row angular contact bearing with a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage, a snap ring groove in the outer ring with appropriate snap ring and a larger than normal radial internal clearance. The bearing's dimensions are 25x52x20.6.
Product InformationBRAND: SKU:3205b-2znrtnc3-nsk AVAILABILITY:In Stock ✅ WEIGHT:0.194 kg Technical DataInside Diameter (mm):25mm Outside Diameter (mm):52mm Width (mm):20.6mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:C3 Dynamic Load Rating (kN):20.9 Static Load Rating (kN):14.1 Grease Limiting Speed (r/min):8000 Oil Limiting Speed (r/min):11000 | ||||||||||||||
