Description

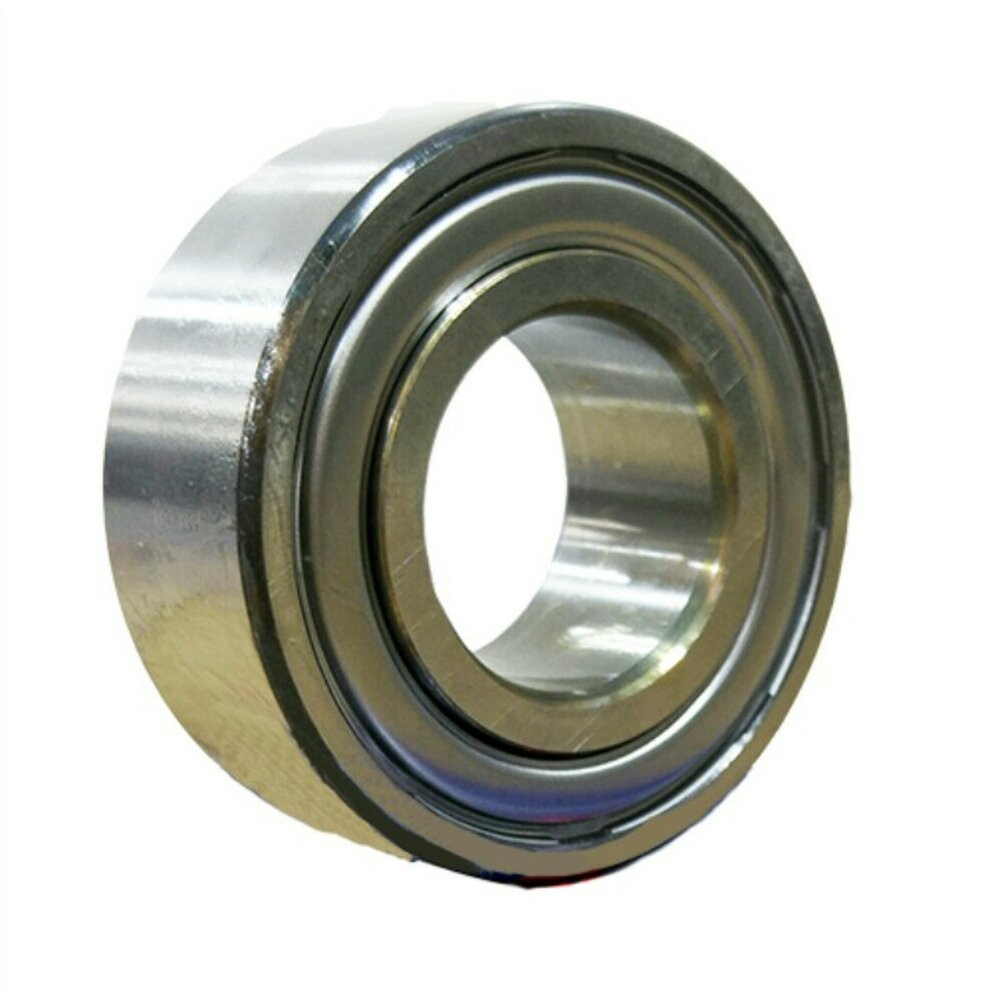

This 3206B 2ZNRTN bearing is a metric double row angular contact bearing with a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage, a snap ring groove in the outer ring with appropriate snap ring and a normal radial internal clearance. The bearing's dimensions are 30x62x23.8.
| 32 | 06 | B | 2Z | NR | TN | |
|---|---|---|---|---|---|---|
| Light Series | 30mm - Bore Size | 25° Contact Angle and No Filling Slot | Metal Shields on Both Sides | Snap Ring Groove with Snap Ring | Polyamide Cage | Standard Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm):
30mm
Outside Diameter (mm):
62mm
Width (mm):
23.8mm
Cage Type:
Plastic
Seals Or Shields:
Two Metal Shields
Clearance:
Standard
Dynamic Load Rating (kN):
29.1
Static Load Rating (kN):
20.1
Grease Limiting Speed (r/min):
7100
Oil Limiting Speed (r/min):
9000
DescriptionThis 3206B 2ZNRTN bearing is a metric double row angular contact bearing with a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage, a snap ring groove in the outer ring with appropriate snap ring and a normal radial internal clearance. The bearing's dimensions are 30x62x23.8.
Product InformationBRAND: SKU:3206b-2znrtn-nsk AVAILABILITY:In Stock ✅ WEIGHT:0.316 kg Technical DataInside Diameter (mm):30mm Outside Diameter (mm):62mm Width (mm):23.8mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:Standard Dynamic Load Rating (kN):29.1 Static Load Rating (kN):20.1 Grease Limiting Speed (r/min):7100 Oil Limiting Speed (r/min):9000 | ||||||||||||||
