Description

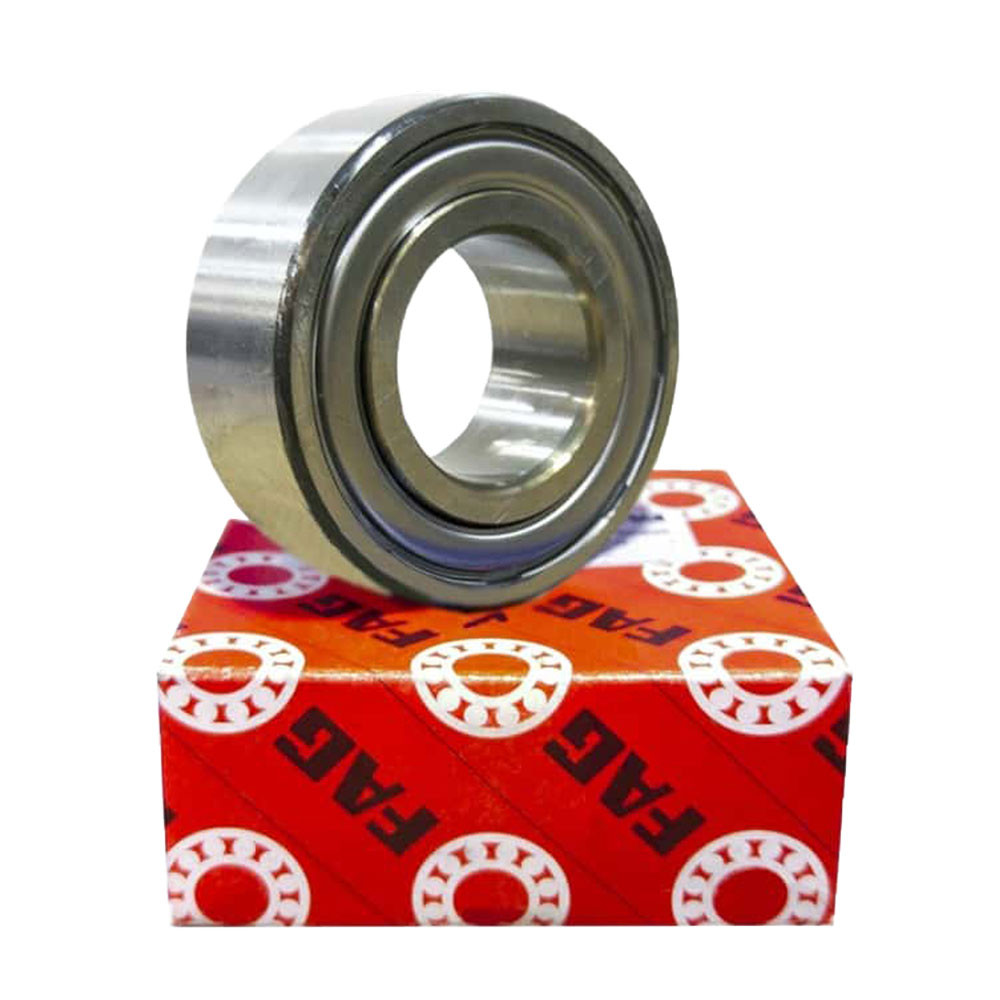

This 3207-B-2Z-TVH-C3 bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 35x72x27mm.
| 32 | 07 | B | 2Z | TVH | C3 |
|---|---|---|---|---|---|
| Maximum Capacity, Light Series | 35mm - Bore Size | Modified Internal Construction | Gap Seals on Both Sides | Solid Polyamide Snap Cage, Ball Guided | Axial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm) :
35mm
Outside Diameter (mm) :
72mm
Width (mm) :
27mm
Cage Type :
Plastic
Seals Or Shields :
Two Metal Shields
Clearance :
C3
Dynamic Load Rating (kN) :
39
Static Load Rating (kN) :
28.5
Fatigue Load Rating (kN) :
1.37
Reference Speed Rating (r/min) :
9200
Limiting Speed Rating (r/min) :
6300
DescriptionThis 3207-B-2Z-TVH-C3 bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 35x72x27mm.
Product InformationBRAND: SKU:3207-b-2z-tvh-c3-fag AVAILABILITY:In Stock ✅ WEIGHT:0.454 kg Technical DataInside Diameter (mm) :35mm Outside Diameter (mm) :72mm Width (mm) :27mm Cage Type :Plastic Seals Or Shields :Two Metal Shields Clearance :C3 Dynamic Load Rating (kN) :39 Static Load Rating (kN) :28.5 Fatigue Load Rating (kN) :1.37 Reference Speed Rating (r/min) :9200 Limiting Speed Rating (r/min) :6300 | ||||||||||||
