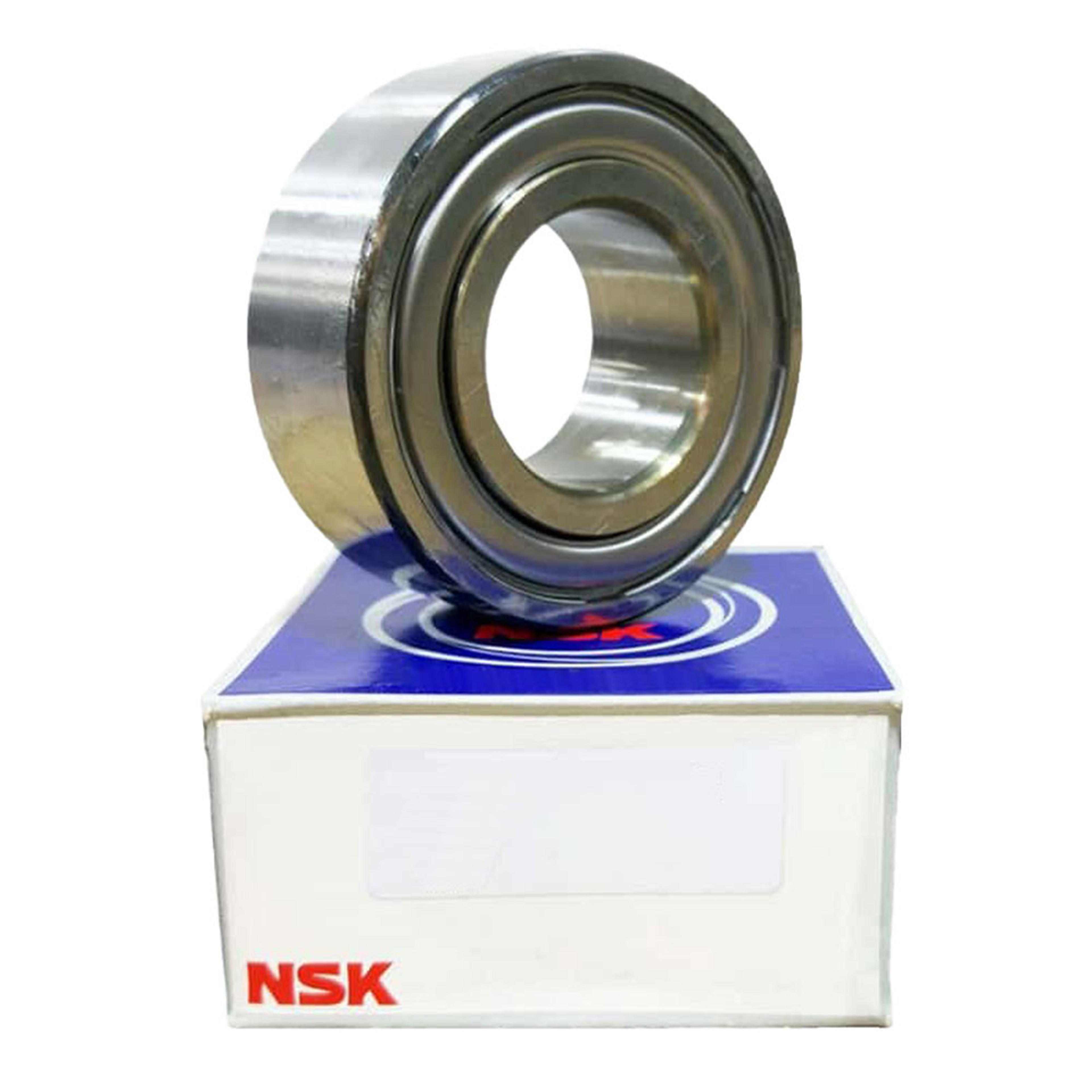

3209J - NSK Double Row Angular Contact Bearing - 45x85x30.2

Name: 3209J - NSK Double Row Angular Contact Bearing - 45x85x30.2
Brand: NSK
SKU: 3209j-nsk
Availability: InStock

SKU: 3209j-nsk

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

$158.93

Description

This 3209J bearing is a metric double row angular contact bearing with a stamped steel cage, ball centred and a normal radial internal clearance. The bearing's dimensions are 45x85x30.2.

32	09				J
Light Series	45mm - Bore Size	32° Contact Angle with Filling Slot			Steel Cage	Standard Internal Clearance

Product Information

BRAND:

SKU:3209j-nsk

AVAILABILITY:In Stock ✅

WEIGHT:0.709 kg

Technical Data

Inside Diameter (mm):

45mm

Outside Diameter (mm):

85mm

Width (mm):

30.2mm

Cage Type:

Steel

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

47.5

Static Load Rating (kN):

35.4

Grease Limiting Speed (r/min):

4500

Oil Limiting Speed (r/min):

5400

Description

This 3209J bearing is a metric double row angular contact bearing with a stamped steel cage, ball centred and a normal radial internal clearance. The bearing's dimensions are 45x85x30.2.

32	09				J
Light Series	45mm - Bore Size	32° Contact Angle with Filling Slot			Steel Cage	Standard Internal Clearance

Product Information

BRAND:

SKU:3209j-nsk

AVAILABILITY:In Stock ✅

WEIGHT:0.709 kg

Technical Data

Inside Diameter (mm):

45mm

Outside Diameter (mm):

85mm

Width (mm):

30.2mm

Cage Type:

Steel

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

47.5

Static Load Rating (kN):

35.4

Grease Limiting Speed (r/min):

4500

Oil Limiting Speed (r/min):

5400
