Description

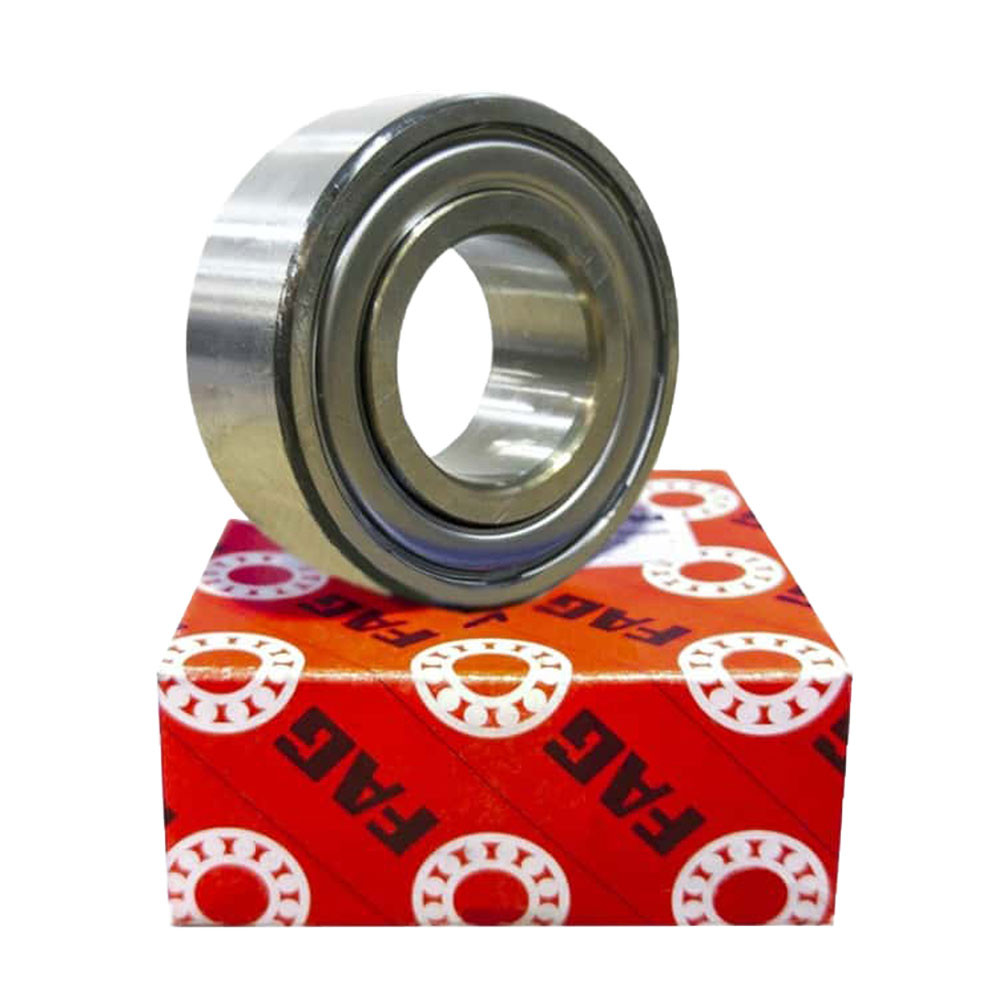

This 3210-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 50x90x30.2mm.
| 32 | 10 | B | 2Z | TVH | |
|---|---|---|---|---|---|
| Maximum Capacity, Light Series | 50mm - Bore Size | Modified Internal Construction | Gap Seals on Both Sides | Solid Polyamide Snap Cage, Ball Guided | Normal Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm):
50mm
Outside Diameter (mm):
90mm
Width (mm):
30.2mm
Cage Type:
Plastic
Seals Or Shields:
Two Metal Shields
Clearance:
Standard
Dynamic Load Rating (kN):
51
Static Load Rating (kN):
42.5
Fatigue Load Rating (kN):
2.12
Reference Speed Rating (r/min):
7100
Limiting Speed Rating (r/min):
4800
DescriptionThis 3210-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 50x90x30.2mm.
Product InformationBRAND: SKU:3210-b-2z-tvh-fag AVAILABILITY:In Stock ✅ WEIGHT:0.692 kg Technical DataInside Diameter (mm):50mm Outside Diameter (mm):90mm Width (mm):30.2mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:Standard Dynamic Load Rating (kN):51 Static Load Rating (kN):42.5 Fatigue Load Rating (kN):2.12 Reference Speed Rating (r/min):7100 Limiting Speed Rating (r/min):4800 | ||||||||||||
