FAG

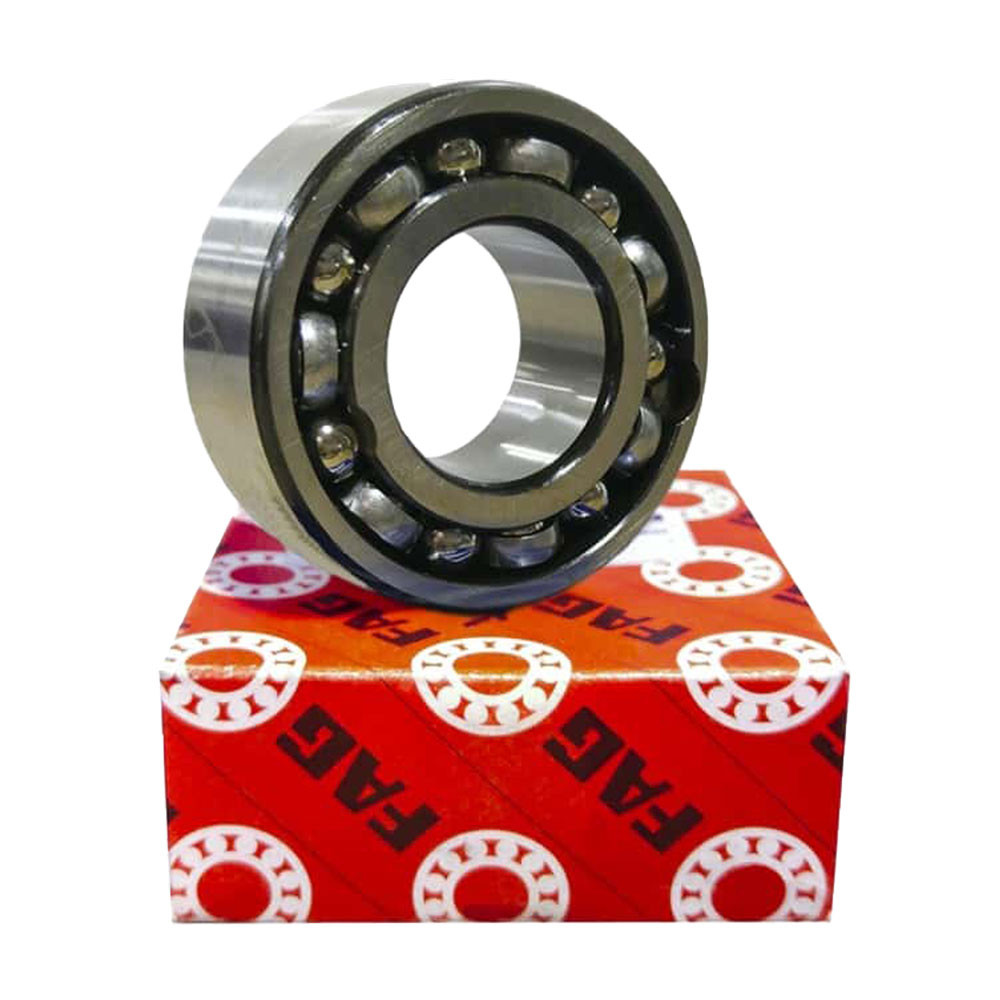

3222-M-C3 - FAG Double Row Angular Contact - 110x200x69.8mm

Name: 3222-M-C3 - FAG Double Row Angular Contact - 110x200x69.8mm
Brand: FAG
SKU: 3222-m-c3-fag
Availability: InStock

SKU: 3222-m-c3-fag

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

$1,792.23

Description

This 3222-M-C3 bearing is a metric double row angular contact bearing with a brass cage and a larger than standard radial internal clearance. The bearing's dimensions are 110x200x69.8mm.

32	22			M	C3
Maximum Capacity, Light Series	110mm - Bore Size		Open Type	Solid Brass Cage, Ball Guided	Axial Internal Clearance Greater than Normal

Product Information

BRAND:

SKU:3222-m-c3-fag

AVAILABILITY:In Stock ✅

WEIGHT:9.23 kg

Technical Data

Inside Diameter (mm):

110mm

Outside Diameter (mm):

200mm

Width (mm):

69.8mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Dynamic Load Rating (kN):

204

Static Load Rating (kN):

280

Fatigue Load Rating (kN):

11.9

Reference Speed Rating (r/min):

3800

Limiting Speed Rating (r/min):

3000

Description

This 3222-M-C3 bearing is a metric double row angular contact bearing with a brass cage and a larger than standard radial internal clearance. The bearing's dimensions are 110x200x69.8mm.

32	22			M	C3
Maximum Capacity, Light Series	110mm - Bore Size		Open Type	Solid Brass Cage, Ball Guided	Axial Internal Clearance Greater than Normal

Product Information

BRAND:

SKU:3222-m-c3-fag

AVAILABILITY:In Stock ✅

WEIGHT:9.23 kg

Technical Data

Inside Diameter (mm):

110mm

Outside Diameter (mm):

200mm

Width (mm):

69.8mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Dynamic Load Rating (kN):

204

Static Load Rating (kN):

280

Fatigue Load Rating (kN):

11.9

Reference Speed Rating (r/min):

3800

Limiting Speed Rating (r/min):

3000
