Description

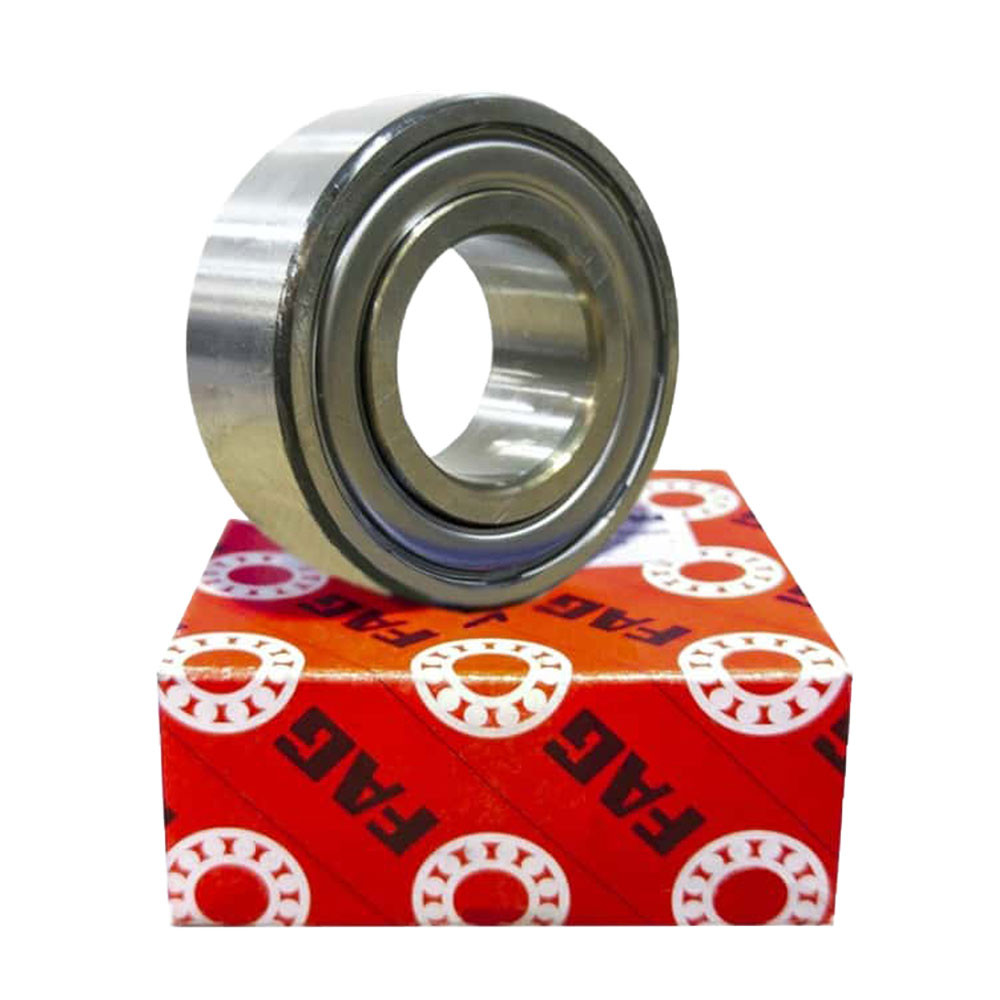

This 3305-B-2Z-TVH-C3 bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 25x62x25.4mm.
| 33 | 05 | B | 2Z | TVH | C3 |
|---|---|---|---|---|---|
| Maximum Capacity, Medium Series | 25mm - Bore Size | Modified Internal Construction | Gap Seals on Both Sides | Solid Polyamide Snap Cage, Ball Guided | Axial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm):
25mm
Outside Diameter (mm):
62mm
Width (mm):
25.4mm
Cage Type:
Plastic
Seals Or Shields:
Two Metal Shields
Clearance:
C3
Dynamic Load Rating (kN):
30
Static Load Rating (kN):
20
Fatigue Load Rating (kN):
0.9
Reference Speed Rating (r/min):
8600
Limiting Speed Rating (r/min):
7500
DescriptionThis 3305-B-2Z-TVH-C3 bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 25x62x25.4mm.
Product InformationBRAND: SKU:3305-b-2z-tvh-c3-fag AVAILABILITY:In Stock ✅ WEIGHT:0.359 kg Technical DataInside Diameter (mm):25mm Outside Diameter (mm):62mm Width (mm):25.4mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:C3 Dynamic Load Rating (kN):30 Static Load Rating (kN):20 Fatigue Load Rating (kN):0.9 Reference Speed Rating (r/min):8600 Limiting Speed Rating (r/min):7500 | ||||||||||||
