Description

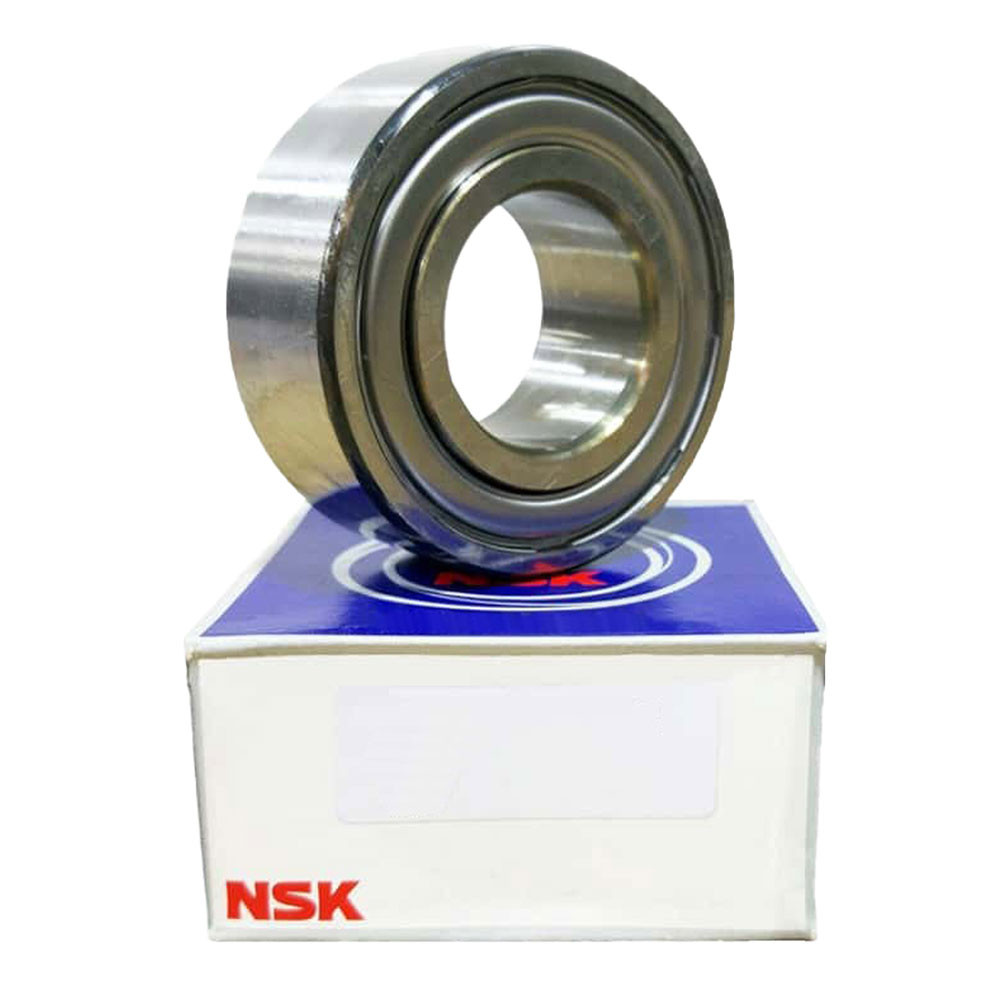

This 3307B-2ZNRTNC3 bearing is a metric double row angular contact bearing with a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage, a snap ring groove in the outer ring with appropriate snap ring and a larger than normal radial internal clearance. The bearing's dimensions are 35x80x34.9mm.
| 33 | 07 | B | 2Z | NR | TN | C3 |
|---|---|---|---|---|---|---|
| Medium Series | 35mm - Bore Size | 25° Contact Angle and No Filling Slot | Metal Shields on Both Sides | Snap Ring Groove with Snap Ring | Polyamide Cage | Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm):
35mm
Outside Diameter (mm):
80mm
Width (mm):
34.9mm
Cage Type:
Plastic
Seals Or Shields:
Two Metal Shields
Clearance:
C3
Dynamic Load Rating (kN):
51.2
Static Load Rating (kN):
33.2
Grease Limiting Speed (r/min):
5100
Oil Limiting Speed (r/min):
6500
DescriptionThis 3307B-2ZNRTNC3 bearing is a metric double row angular contact bearing with a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage, a snap ring groove in the outer ring with appropriate snap ring and a larger than normal radial internal clearance. The bearing's dimensions are 35x80x34.9mm.
Product InformationBRAND: SKU:3307b-2znrtnc3-nsk AVAILABILITY:In Stock ✅ WEIGHT:0.816 kg Technical DataInside Diameter (mm):35mm Outside Diameter (mm):80mm Width (mm):34.9mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:C3 Dynamic Load Rating (kN):51.2 Static Load Rating (kN):33.2 Grease Limiting Speed (r/min):5100 Oil Limiting Speed (r/min):6500 | ||||||||||||||
