Description

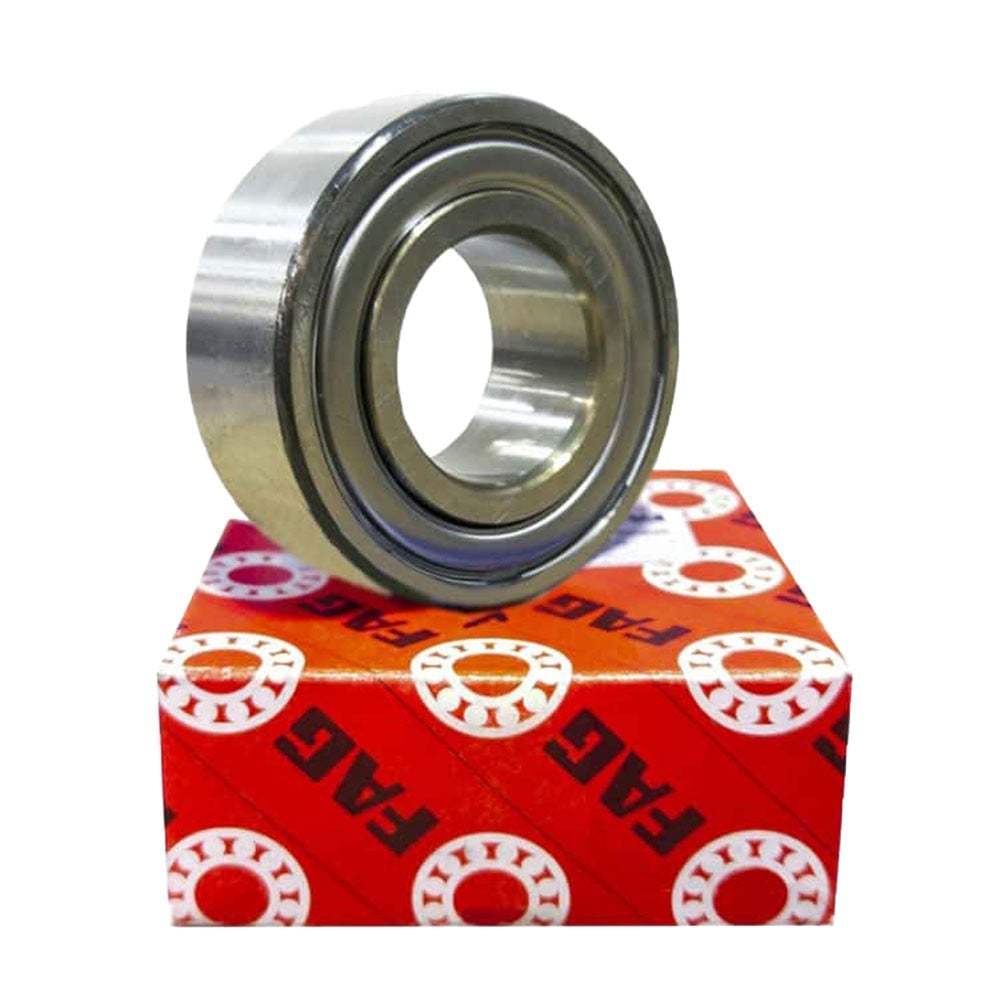

This 3308-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 40x90x36.5mm.
| 33 | 08 | B | 2Z | TVH | |
|---|---|---|---|---|---|
| Maximum Capacity, Medium Series | 40mm - Bore Size | Modified Internal Construction | Gap Seals on Both Sides | Solid Polyamide Snap Cage, Ball Guided | Normal Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm):
40mm
Outside Diameter (mm):
90mm
Width (mm):
36.5mm
Cage Type:
Plastic
Seals Or Shields:
Two Metal Shields
Clearance:
Standard
Dynamic Load Rating (kN):
62
Static Load Rating (kN):
45
Fatigue Load Rating (kN):
2.5
Reference Speed Rating (r/min):
6400
Limiting Speed Rating (r/min):
5000
DescriptionThis 3308-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 40x90x36.5mm.
Product InformationBRAND: SKU:3308-b-2z-tvh-fag AVAILABILITY:In Stock ✅ WEIGHT:0.998 kg Technical DataInside Diameter (mm):40mm Outside Diameter (mm):90mm Width (mm):36.5mm Cage Type:Plastic Seals Or Shields:Two Metal Shields Clearance:Standard Dynamic Load Rating (kN):62 Static Load Rating (kN):45 Fatigue Load Rating (kN):2.5 Reference Speed Rating (r/min):6400 Limiting Speed Rating (r/min):5000 | ||||||||||||
