NSK

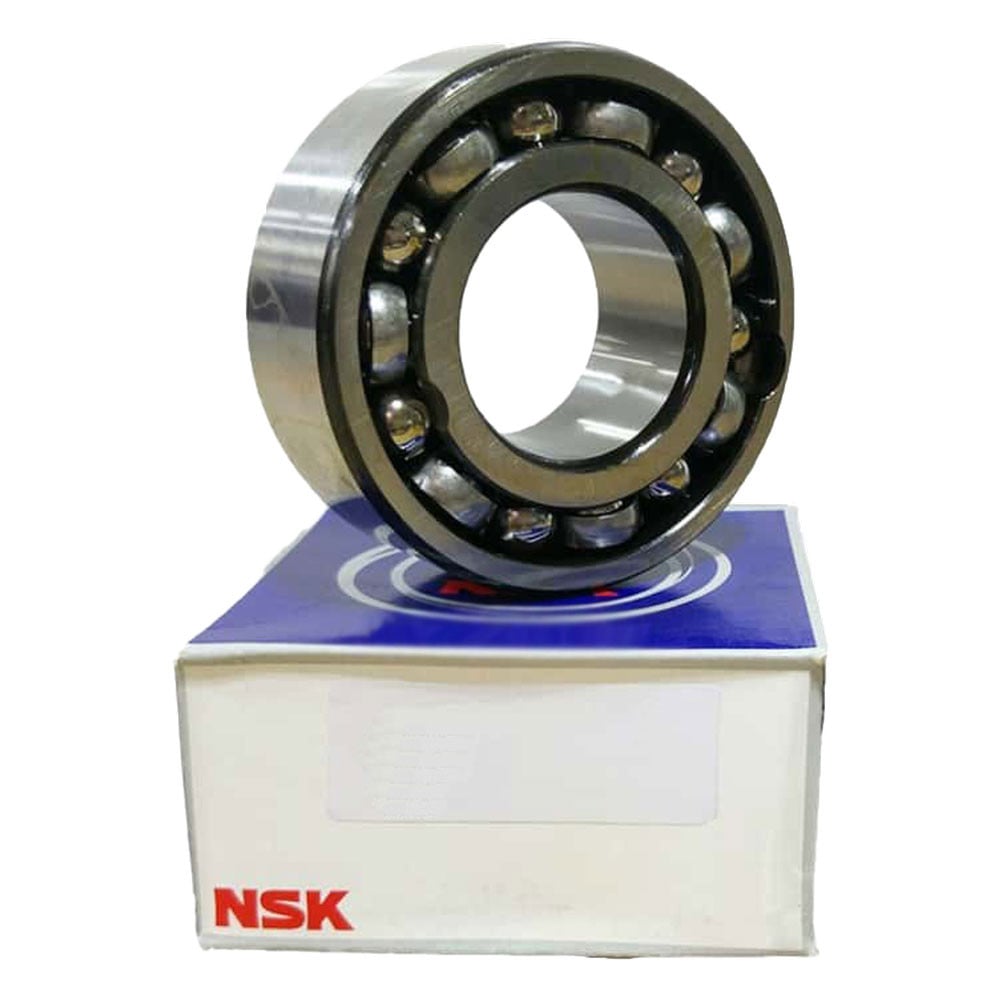

3309BNRTNC3 - NSK Double Row Angular Contact Bearing - 45x100x39.7mm
SKU: 3309bnrtnc3-nsk
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
This 3309BNRTNC3 bearing is a metric double row angular contact bearing with a modified internal construction, a glass fibre reinforced PA66 cage, a snap ring groove in the outer ring with appropriate snap ring and a larger than normal radial internal clearance. The bearing's dimensions are 45x100x39.7mm.
| 33 | 09 | B | NR | TN | C3 | |
|---|---|---|---|---|---|---|
| Medium Series | 45mm - Bore Size | 25° Contact Angle and No Filling Slot | Snap Ring Groove with Snap Ring | Polyamide Cage | Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm):
45mm
Outside Diameter (mm):
100mm
Width (mm):
39.7mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
C3
Dynamic Load Rating (kN):
71.1
Static Load Rating (kN):
51.1
Grease Limiting Speed (r/min):
4500
Oil Limiting Speed (r/min):
6000
DescriptionThis 3309BNRTNC3 bearing is a metric double row angular contact bearing with a modified internal construction, a glass fibre reinforced PA66 cage, a snap ring groove in the outer ring with appropriate snap ring and a larger than normal radial internal clearance. The bearing's dimensions are 45x100x39.7mm.
Product InformationBRAND: SKU:3309bnrtnc3-nsk AVAILABILITY:In Stock ✅ WEIGHT:1.42 kg Technical DataInside Diameter (mm):45mm Outside Diameter (mm):100mm Width (mm):39.7mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:C3 Dynamic Load Rating (kN):71.1 Static Load Rating (kN):51.1 Grease Limiting Speed (r/min):4500 Oil Limiting Speed (r/min):6000 | ||||||||||||||
