Description

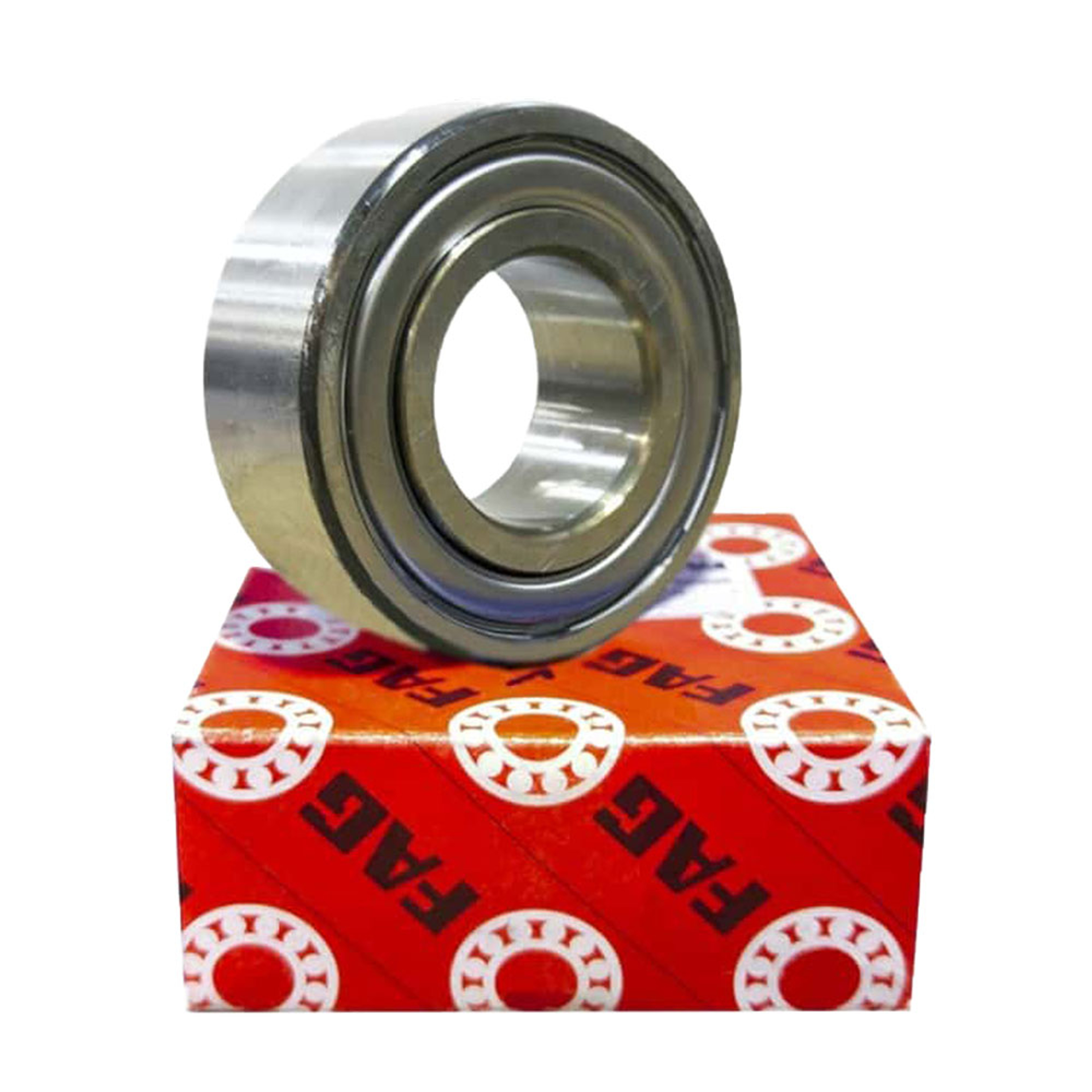

This 3310-B-2Z-TVH-C3 bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 50x110x44.4mm.
| 33 | 10 | B | 2Z | TVH | C3 |
|---|---|---|---|---|---|
| Maximum Capacity, Medium Series | 50mm - Bore Size | Modified Internal Construction | Gap Seals on Both Sides | Solid Polyamide Snap Cage, Ball Guided | Axial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm) :
50mm
Outside Diameter (mm) :
110mm
Width (mm) :
44.4mm
Cage Type :
Plastic
Seals Or Shields :
Two Metal Shields
Clearance :
C3
Dynamic Load Rating (kN) :
81.5
Static Load Rating (kN) :
62
Fatigue Load Rating (kN) :
3.45
Reference Speed Rating (r/min) :
5800
Limiting Speed Rating (r/min) :
4000
DescriptionThis 3310-B-2Z-TVH-C3 bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 50x110x44.4mm.
Product InformationBRAND: SKU:3310-b-2z-tvh-c3-fag AVAILABILITY:In Stock ✅ WEIGHT:1.82 kg Technical DataInside Diameter (mm) :50mm Outside Diameter (mm) :110mm Width (mm) :44.4mm Cage Type :Plastic Seals Or Shields :Two Metal Shields Clearance :C3 Dynamic Load Rating (kN) :81.5 Static Load Rating (kN) :62 Fatigue Load Rating (kN) :3.45 Reference Speed Rating (r/min) :5800 Limiting Speed Rating (r/min) :4000 | ||||||||||||
