FAG

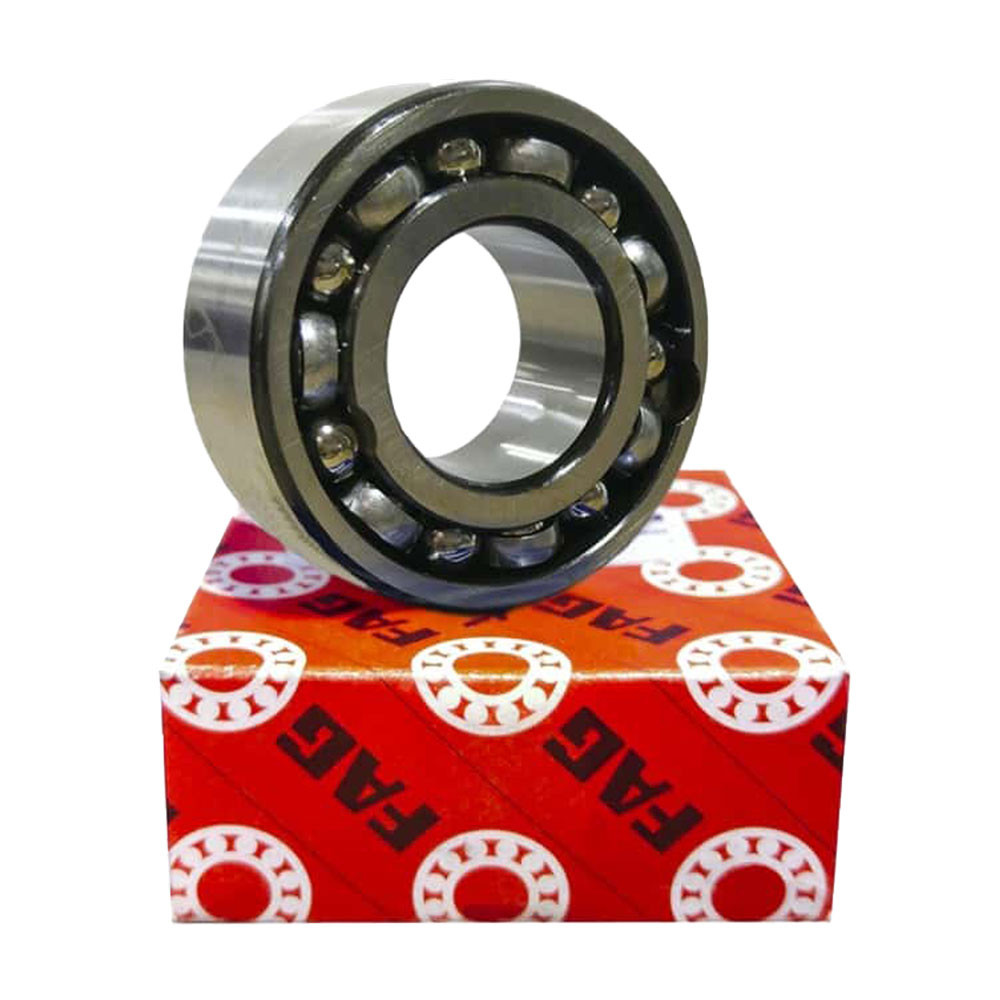

3317-M - FAG Double Row Angular Contact - 85x180x73mm

Name: 3317-M - FAG Double Row Angular Contact - 85x180x73mm
Brand: FAG
SKU: 3317-m-fag
Availability: InStock

SKU: 3317-m-fag

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

$1,225.24

Description

This 3317-M bearing is a metric double row angular contact bearing with a brass cage and a standard radial internal clearance. The bearing's dimensions are 85x180x73mm.

33	17			M
Maximum Capacity, Medium Series	85mm - Bore Size		Open Type	Solid Brass Cage, Ball Guided	Normal Internal Clearance

Product Information

BRAND:

SKU:3317-m-fag

AVAILABILITY:In Stock ✅

WEIGHT:8.78 kg

Technical Data

Inside Diameter (mm):

85mm

Outside Diameter (mm):

180mm

Width (mm):

73mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

190

Static Load Rating (kN):

228

Fatigue Load Rating (kN):

11.1

Reference Speed Rating (r/min):

3750

Limiting Speed Rating (r/min):

3400

Description

This 3317-M bearing is a metric double row angular contact bearing with a brass cage and a standard radial internal clearance. The bearing's dimensions are 85x180x73mm.

33	17			M
Maximum Capacity, Medium Series	85mm - Bore Size		Open Type	Solid Brass Cage, Ball Guided	Normal Internal Clearance

Product Information

BRAND:

SKU:3317-m-fag

AVAILABILITY:In Stock ✅

WEIGHT:8.78 kg

Technical Data

Inside Diameter (mm):

85mm

Outside Diameter (mm):

180mm

Width (mm):

73mm

Cage Type:

Brass

Seals Or Shields:

Open Type

Clearance:

Standard

Dynamic Load Rating (kN):

190

Static Load Rating (kN):

228

Fatigue Load Rating (kN):

11.1

Reference Speed Rating (r/min):

3750

Limiting Speed Rating (r/min):

3400
