FAG

61903-2Z - FAG Thin Section - 17x30x7mm

Name: 61903-2Z - FAG Thin Section - 17x30x7mm
Brand: FAG
SKU: 61903-2z-fag
Availability: InStock

SKU: 61903-2z-fag

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

C$39.36

Description

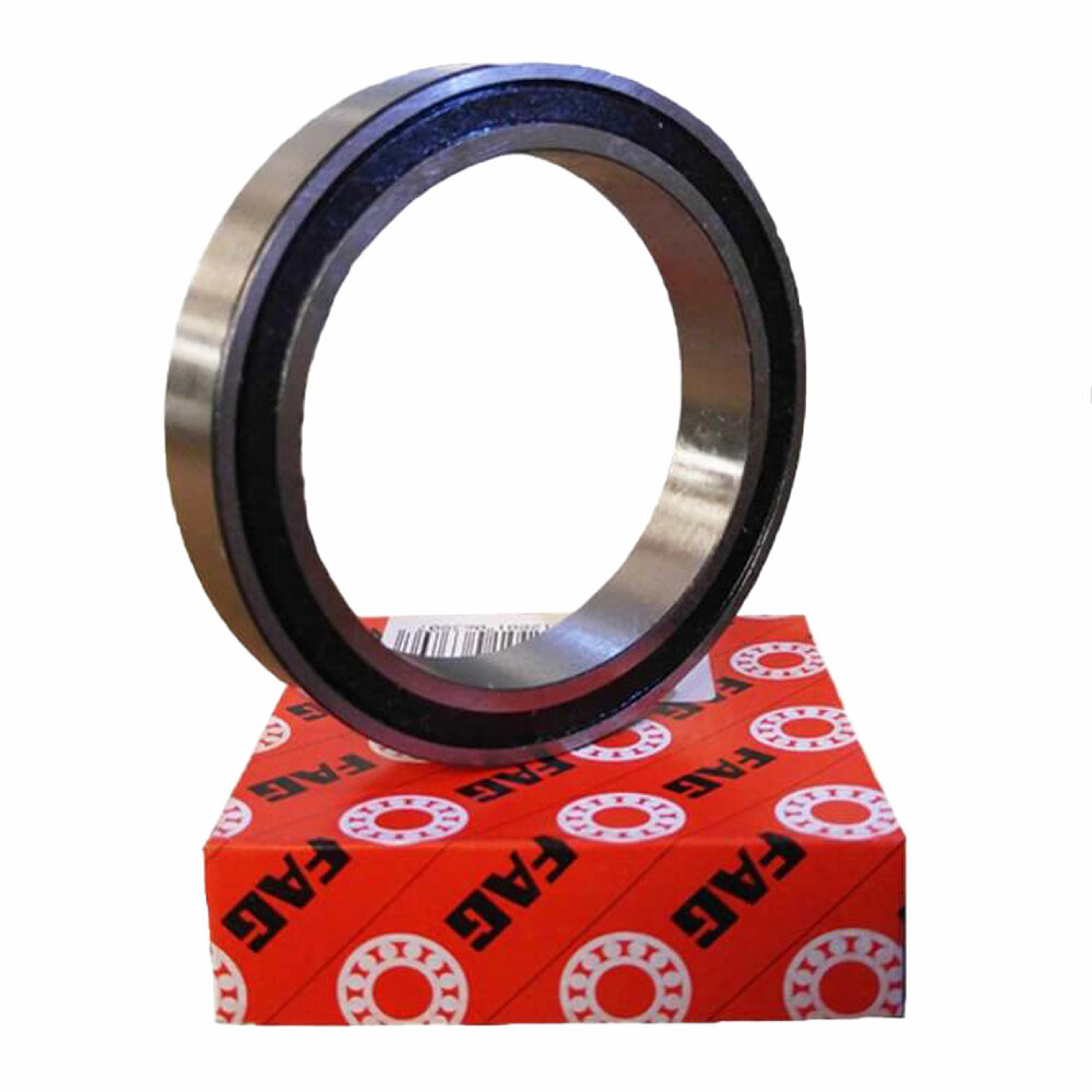

This 61903-2Z bearing is a Shielded Thin Section Deep Groove Radial Ball Bearing with a standard radial internal clearance. The bearing's dimensions are 17x30x7.

619	03	2Z
Metric, Very Thin Section	17mm - Bore Size	Gap Seals on Both Sides	Normal Radial Internal Clearance

Product Information

BRAND:

SKU:61903-2z-fag

AVAILABILITY:In Stock ✅

WEIGHT:0.019 kg

Technical Data

Inside Diameter (mm):

17mm

Outside Diameter (mm):

30mm

Width (mm):

7mm

Cage Type:

Steel

Seals Or Shields:

Two Metal Shields

Clearance:

Standard

Dynamic Load Rating (kN):

4.6

Static Load Rating (kN):

2.55

Fatigue Load Rating (kN):

0.135

Reference Speed Rating (r/min):

18500

Limiting Speed Rating (r/min):

22000

Description

This 61903-2Z bearing is a Shielded Thin Section Deep Groove Radial Ball Bearing with a standard radial internal clearance. The bearing's dimensions are 17x30x7.

619	03	2Z
Metric, Very Thin Section	17mm - Bore Size	Gap Seals on Both Sides	Normal Radial Internal Clearance

Product Information

BRAND:

SKU:61903-2z-fag

AVAILABILITY:In Stock ✅

WEIGHT:0.019 kg

Technical Data

Inside Diameter (mm):

17mm

Outside Diameter (mm):

30mm

Width (mm):

7mm

Cage Type:

Steel

Seals Or Shields:

Two Metal Shields

Clearance:

Standard

Dynamic Load Rating (kN):

4.6

Static Load Rating (kN):

2.55

Fatigue Load Rating (kN):

0.135

Reference Speed Rating (r/min):

18500

Limiting Speed Rating (r/min):

22000
