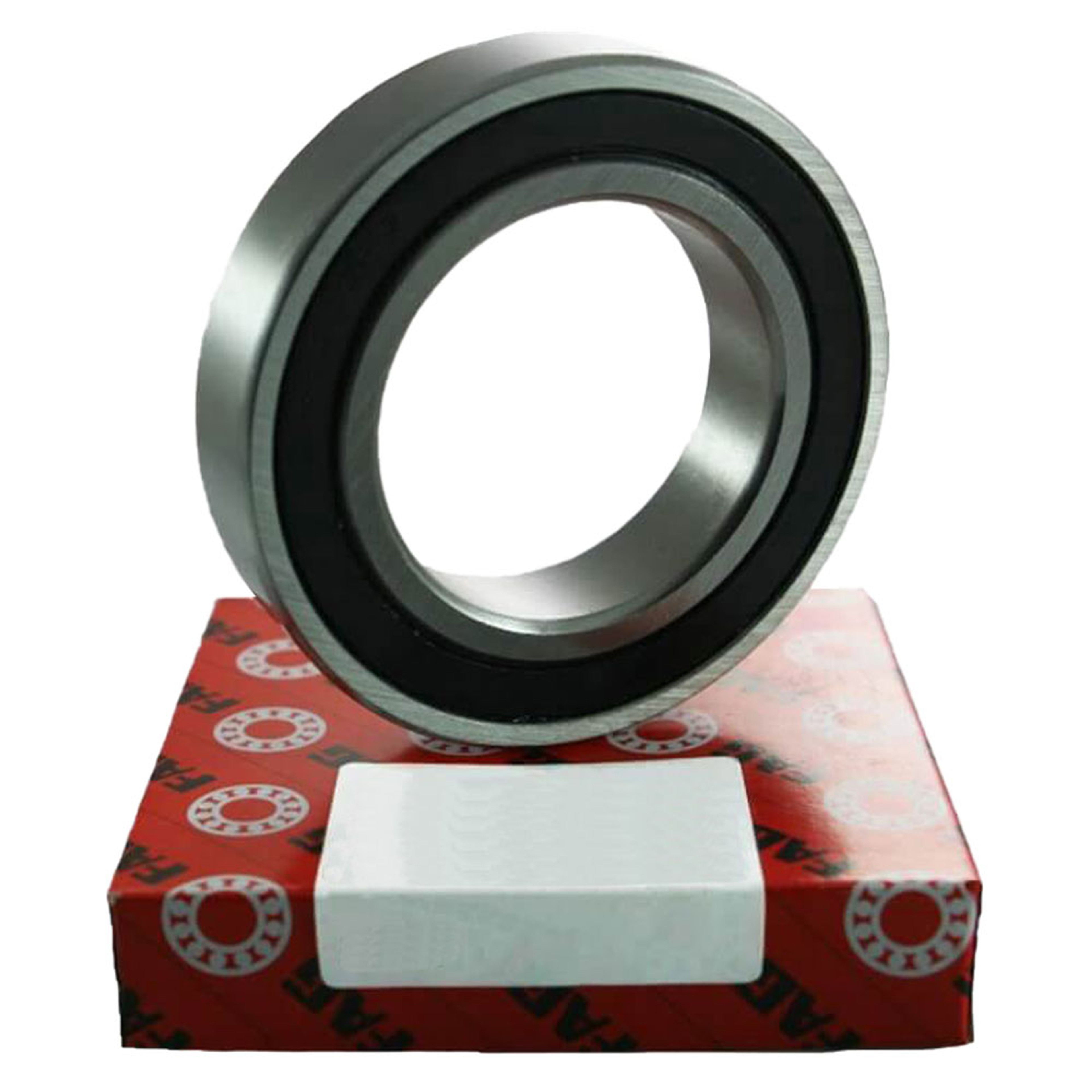

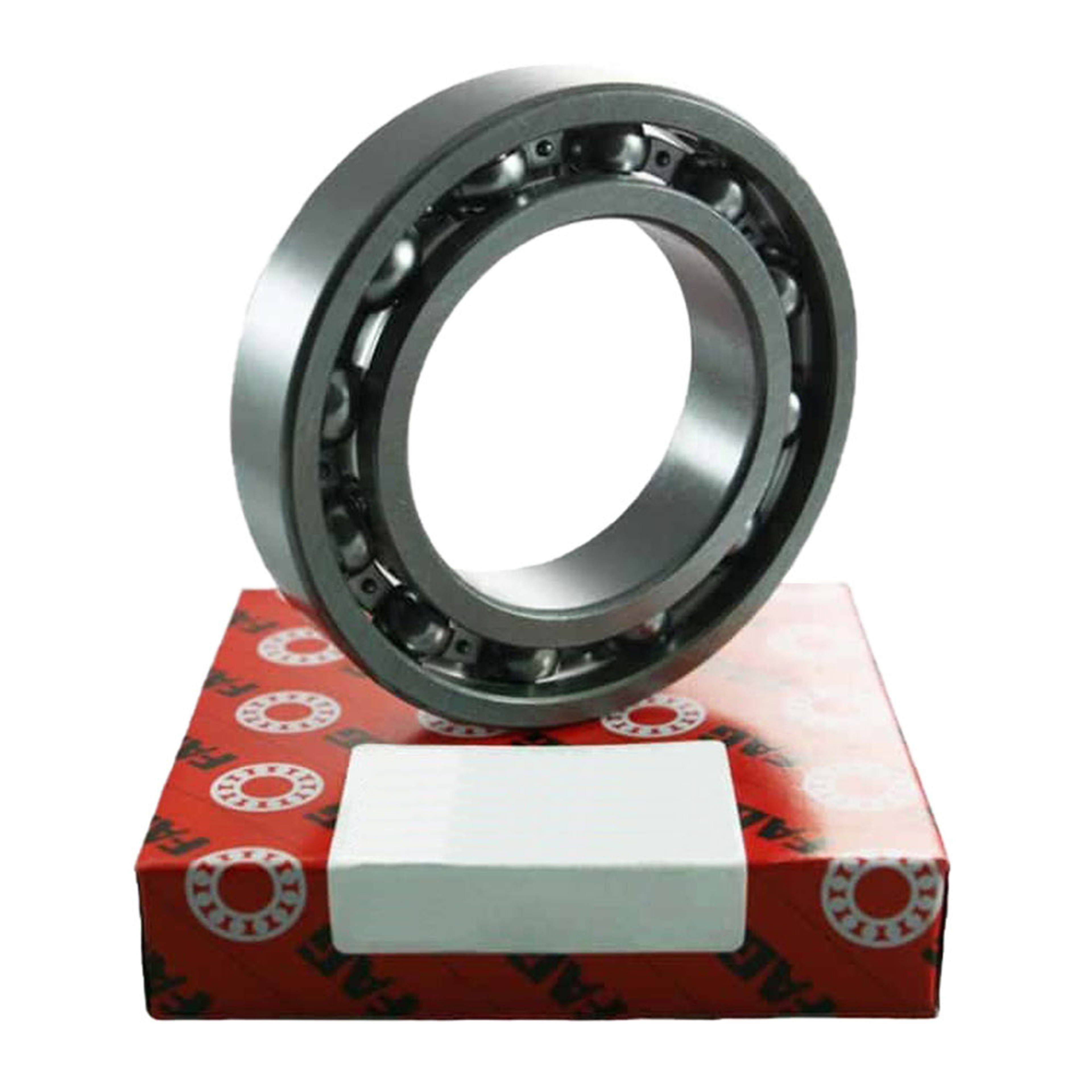

6203 C Z - FAG Deep Groove Bearing - 17x40x12mm

Name: 6203 C Z - FAG Deep Groove Bearing - 17x40x12mm
Brand: FAG
SKU: 6203-c-z-fag
Availability: InStock

SKU: 6203-c-z-fag

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

C$13.27

Description

This 6203 C Z FAG bearing is a Deep Groove Radial Ball Bearing Shielded on One Side with a standard radial internal clearance The bearing's dimensions are 17x40x12.

62	03	C Z
Light Series	17mm - Bore Size	Metal Shield on One Side	Normal Radial Internal Clearance

Product Information

BRAND:

SKU:6203-c-z-fag

AVAILABILITY:In Stock ✅

WEIGHT:0.067 kg

Technical Data

Inside Diameter (mm):

17mm

Outside Diameter (mm):

40mm

Width (mm):

12mm

Cage Type:

Steel

Clearance:

Standard

Dynamic Load Rating (kN):

10.4

Static Load Rating (kN):

4.75

Fatigue Load Rating (kN):

0.32

Reference Speed Rating (r/min):

20100

Limiting Speed Rating (r/min):

24600

Seals Or Shields:

One Metal Shield

Description

This 6203 C Z FAG bearing is a Deep Groove Radial Ball Bearing Shielded on One Side with a standard radial internal clearance The bearing's dimensions are 17x40x12.

62	03	C Z
Light Series	17mm - Bore Size	Metal Shield on One Side	Normal Radial Internal Clearance

Product Information

BRAND:

SKU:6203-c-z-fag

AVAILABILITY:In Stock ✅

WEIGHT:0.067 kg

Technical Data

Inside Diameter (mm):

17mm

Outside Diameter (mm):

40mm

Width (mm):

12mm

Cage Type:

Steel

Clearance:

Standard

Dynamic Load Rating (kN):

10.4

Static Load Rating (kN):

4.75

Fatigue Load Rating (kN):

0.32

Reference Speed Rating (r/min):

20100

Limiting Speed Rating (r/min):

24600

Seals Or Shields:

One Metal Shield
