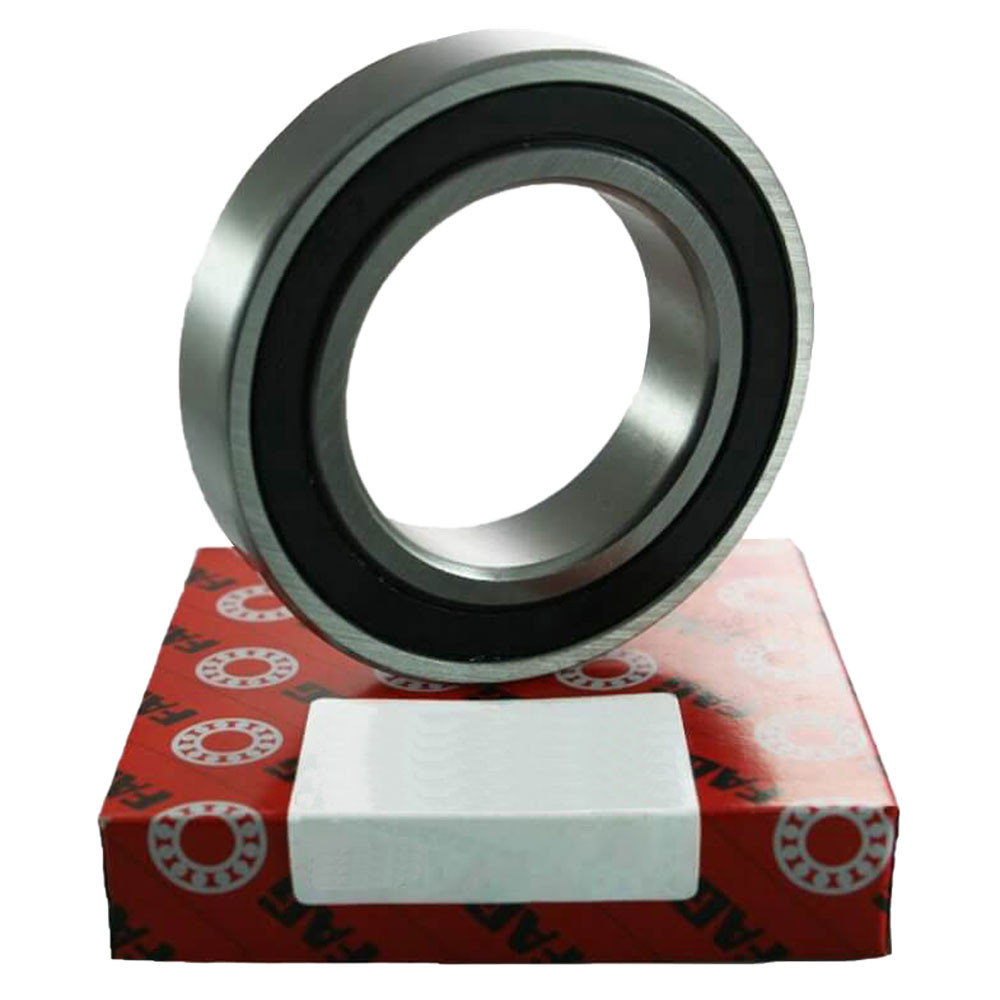

6302 Z C3 - FAG Deep Groove Bearing - 15x42x13mm

Name: 6302 Z C3 - FAG Deep Groove Bearing - 15x42x13mm
Brand: FAG
SKU: 6302-z-c3-fag
Availability: InStock

SKU: 6302-z-c3-fag

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

$15.16

Description

This 6302 Z C3 FAG bearing is a Deep Groove Radial Ball Bearing Shielded on One Side with a larger than standard radial internal clearance The bearing's dimensions are 15x42x13.

63	02	Z	C3
Medium Series	15mm - Bore Size	Metal Shield on One Side	Radial Internal Clearance Greater Than Normal

Product Information

BRAND:

SKU:6302-z-c3-fag

AVAILABILITY:In Stock ✅

WEIGHT:0.09 kg

Technical Data

Inside Diameter (mm):

15mm

Outside Diameter (mm):

42mm

Width (mm):

13mm

Cage Type:

Steel

Clearance:

Dynamic Load Rating (kN):

11.4

Static Load Rating (kN):

5.4

Fatigue Load Rating (kN):

0.35

Reference Speed Rating (r/min):

17500

Limiting Speed Rating (r/min):

18000

Seals Or Shields:

One Metal Shield

Description

This 6302 Z C3 FAG bearing is a Deep Groove Radial Ball Bearing Shielded on One Side with a larger than standard radial internal clearance The bearing's dimensions are 15x42x13.

63	02	Z	C3
Medium Series	15mm - Bore Size	Metal Shield on One Side	Radial Internal Clearance Greater Than Normal

Product Information

BRAND:

SKU:6302-z-c3-fag

AVAILABILITY:In Stock ✅

WEIGHT:0.09 kg

Technical Data

Inside Diameter (mm):

15mm

Outside Diameter (mm):

42mm

Width (mm):

13mm

Cage Type:

Steel

Clearance:

Dynamic Load Rating (kN):

11.4

Static Load Rating (kN):

5.4

Fatigue Load Rating (kN):

0.35

Reference Speed Rating (r/min):

17500

Limiting Speed Rating (r/min):

18000

Seals Or Shields:

One Metal Shield
