Description

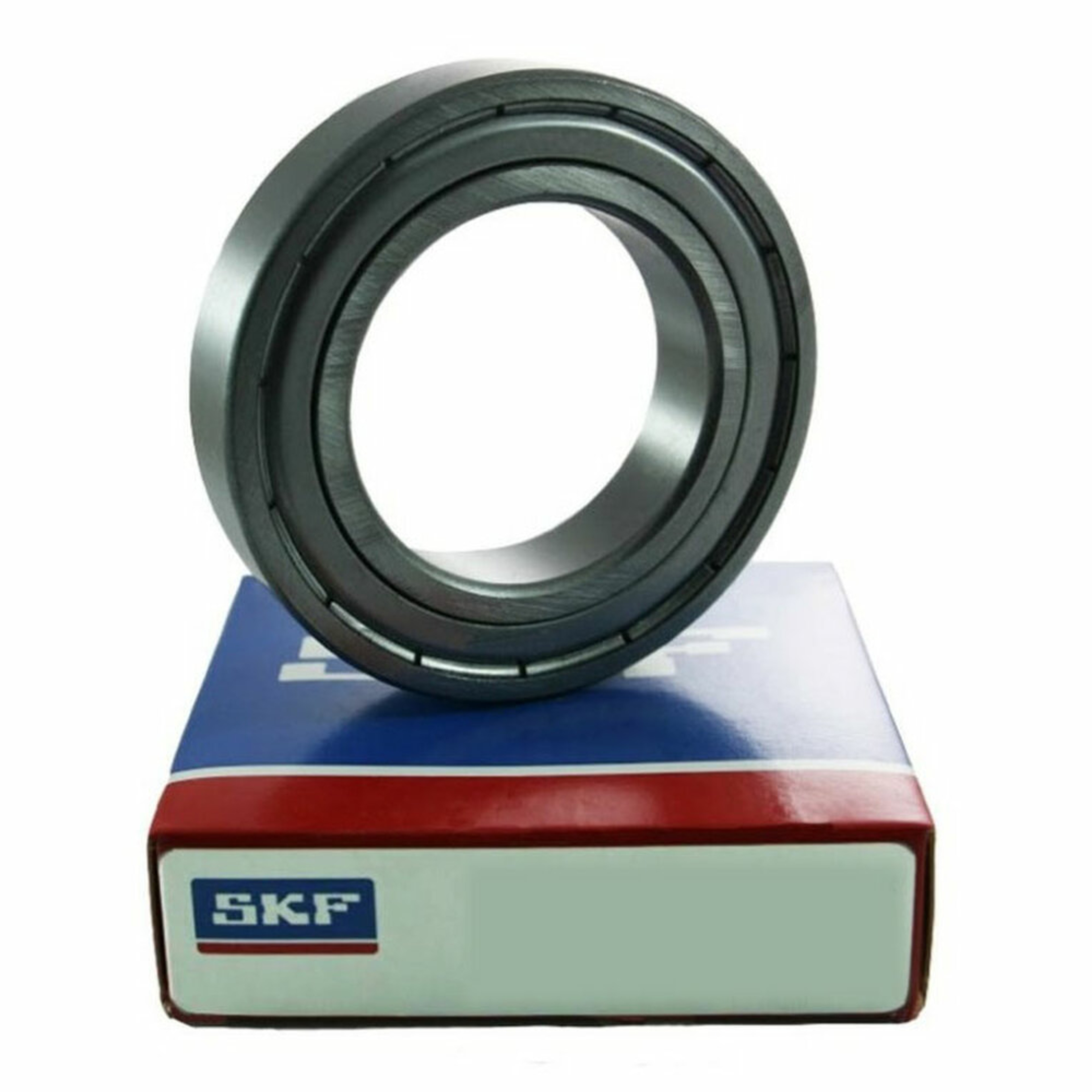

The SKF 6313-2Z/VA208 is a premium-quality bearing designed for extreme temperature applications. Manufactured by SKF, this Deep Groove Ball Bearing offers exceptional durability, performance, and a strong resistance to extreme operating conditions in a wide temperature range. The dimensions of this bearing are 65x140x33mm.
| 63 | 13 | 2z | va208 | ||
|---|---|---|---|---|---|
| Metric, Medium | 65mm - Bore Size | Metal Shields on Both Sides of Bearing | Steel Cage | Normal Internal Clearance | Bearing for high temperature applications, with a segmented cage made of graphite, manganese phosphate coated rings and rolling elements, and radial clearance of multiples of C5 |
Key Features
Extreme Temperature Resistance
Engineered for use in extreme temperatures, the SKF 6313-2Z/VA208 is a deep groove radial ball bearing that is capable of withstanding extreme operating conditions from -150°C (-240°F) up to 250°C (480°F).
Metal Shields (2Z)
The SKF 6313-2Z/VA208 Bearing has been purposely fitted by SKF with metal shields on both sides. This design helps to prevent contamination and reduces the need for bearing maintenance.
VA208 Designation
Specifically designed for extreme-temperature environments, the SKF 6313-2Z/VA208 bearing features a unique multiple C5 internal clearance and a manganese phosphate coating with polyalkylene glycol/graphite mixture lubricant for prolonged service life.
Robust Construction
The SKF 6313-2Z/VA208 Bearing is made from high-quality bearing steel with advanced heat treatments for superior performance under thermal stress. It is designed for minimal maintenance.
Product Information
Technical Data
Inside Diameter (mm) :
65mm
Outside Diameter (mm) :
140mm
Width (mm) :
33mm
Cage Type :
Steel
Seals Or Shields :
Two Metal Shields
Clearance :
Standard
Dynamic Load Rating (kN) :
97.5
Static Load Rating (kN) :
60
Fatigue Load Rating (kN) :
2.5
Reference Speed Rating (r/min) :
40
Operating Temperature Range :
-150°C to 350°C (-240°F to 660°F)
DescriptionThe SKF 6313-2Z/VA208 is a premium-quality bearing designed for extreme temperature applications. Manufactured by SKF, this Deep Groove Ball Bearing offers exceptional durability, performance, and a strong resistance to extreme operating conditions in a wide temperature range. The dimensions of this bearing are 65x140x33mm.
Key FeaturesExtreme Temperature ResistanceEngineered for use in extreme temperatures, the SKF 6313-2Z/VA208 is a deep groove radial ball bearing that is capable of withstanding extreme operating conditions from -150°C (-240°F) up to 250°C (480°F). Metal Shields (2Z)The SKF 6313-2Z/VA208 Bearing has been purposely fitted by SKF with metal shields on both sides. This design helps to prevent contamination and reduces the need for bearing maintenance. VA208 DesignationSpecifically designed for extreme-temperature environments, the SKF 6313-2Z/VA208 bearing features a unique multiple C5 internal clearance and a manganese phosphate coating with polyalkylene glycol/graphite mixture lubricant for prolonged service life. Robust ConstructionThe SKF 6313-2Z/VA208 Bearing is made from high-quality bearing steel with advanced heat treatments for superior performance under thermal stress. It is designed for minimal maintenance. Product InformationBRAND: SKU:6313-2z/va208-skf AVAILABILITY:In Stock ✅ WEIGHT:2.1 kg Technical DataInside Diameter (mm) :65mm Outside Diameter (mm) :140mm Width (mm) :33mm Cage Type :Steel Seals Or Shields :Two Metal Shields Clearance :Standard Dynamic Load Rating (kN) :97.5 Static Load Rating (kN) :60 Fatigue Load Rating (kN) :2.5 Reference Speed Rating (r/min) :40 Operating Temperature Range :-150°C to 350°C (-240°F to 660°F) | ||||||||||||
