Description

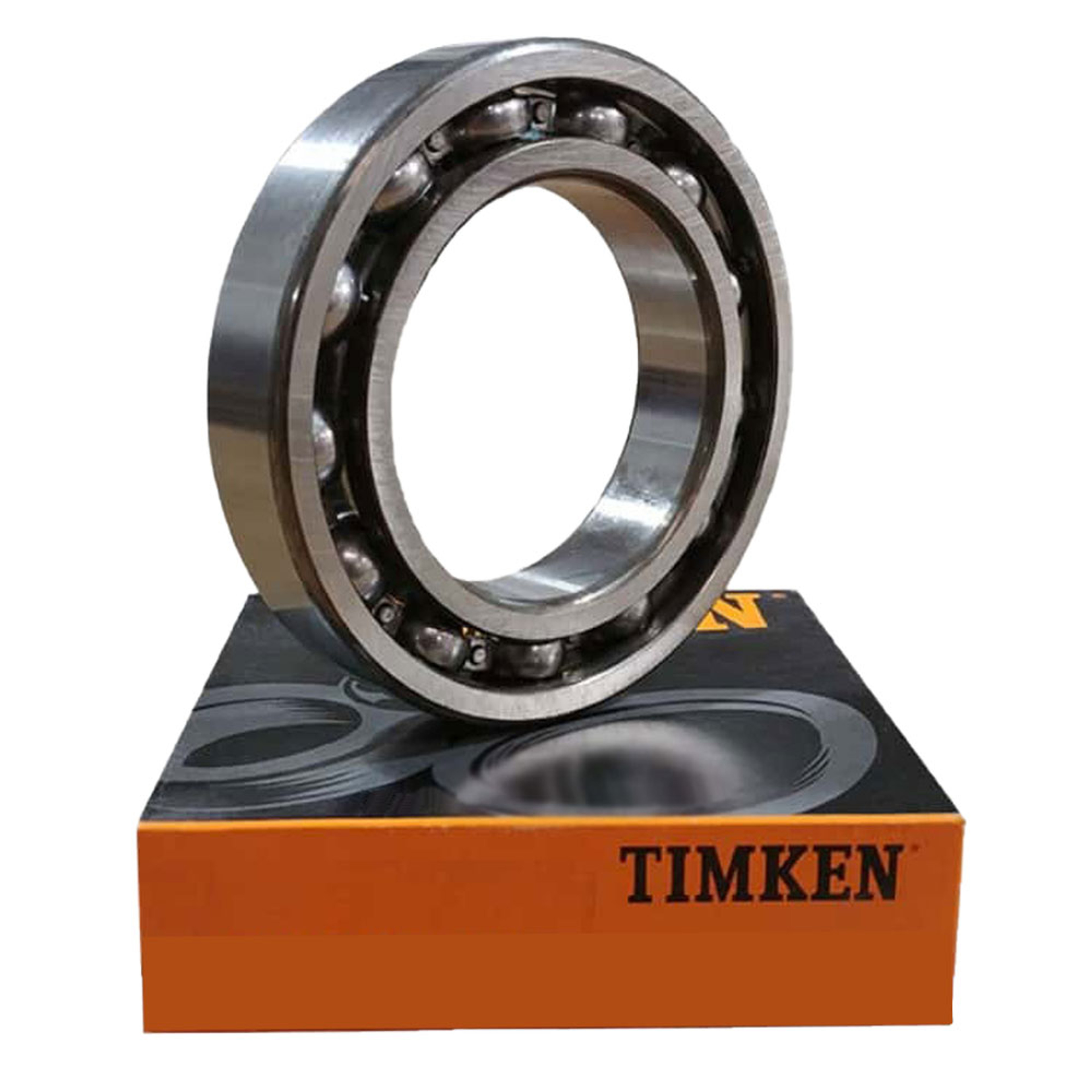

This 6316-ZC3 bearing is a shielded deep groove ball bearing with a Radial Internal Clearance Greater than Normal. The bearing's dimensions are 80x170x39mm
| 63 | 16 | Z | C3 |
|---|---|---|---|
| Medium Series | 80mm - Bore Size | Metal Shield on One Side of the Bearing | Radial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm):
80mm
Outside Diameter (mm):
170mm
Width (mm):
39mm
Cage Type:
Steel
Clearance:
C3
Dynamic Load Rating (kN):
123
Static Load Rating (kN):
86.5
Reference Speed Rating (r/min):
7500
Limiting Speed Rating (r/min):
5200
Seals Or Shields:
One Metal Shield
DescriptionThis 6316-ZC3 bearing is a shielded deep groove ball bearing with a Radial Internal Clearance Greater than Normal. The bearing's dimensions are 80x170x39mm
Product InformationBRAND: SKU:6316zc3-timken AVAILABILITY:In Stock ✅ WEIGHT:3.639 kg Technical DataInside Diameter (mm):80mm Outside Diameter (mm):170mm Width (mm):39mm Cage Type:Steel Clearance:C3 Dynamic Load Rating (kN):123 Static Load Rating (kN):86.5 Reference Speed Rating (r/min):7500 Limiting Speed Rating (r/min):5200 Seals Or Shields:One Metal Shield | ||||||||
