Description

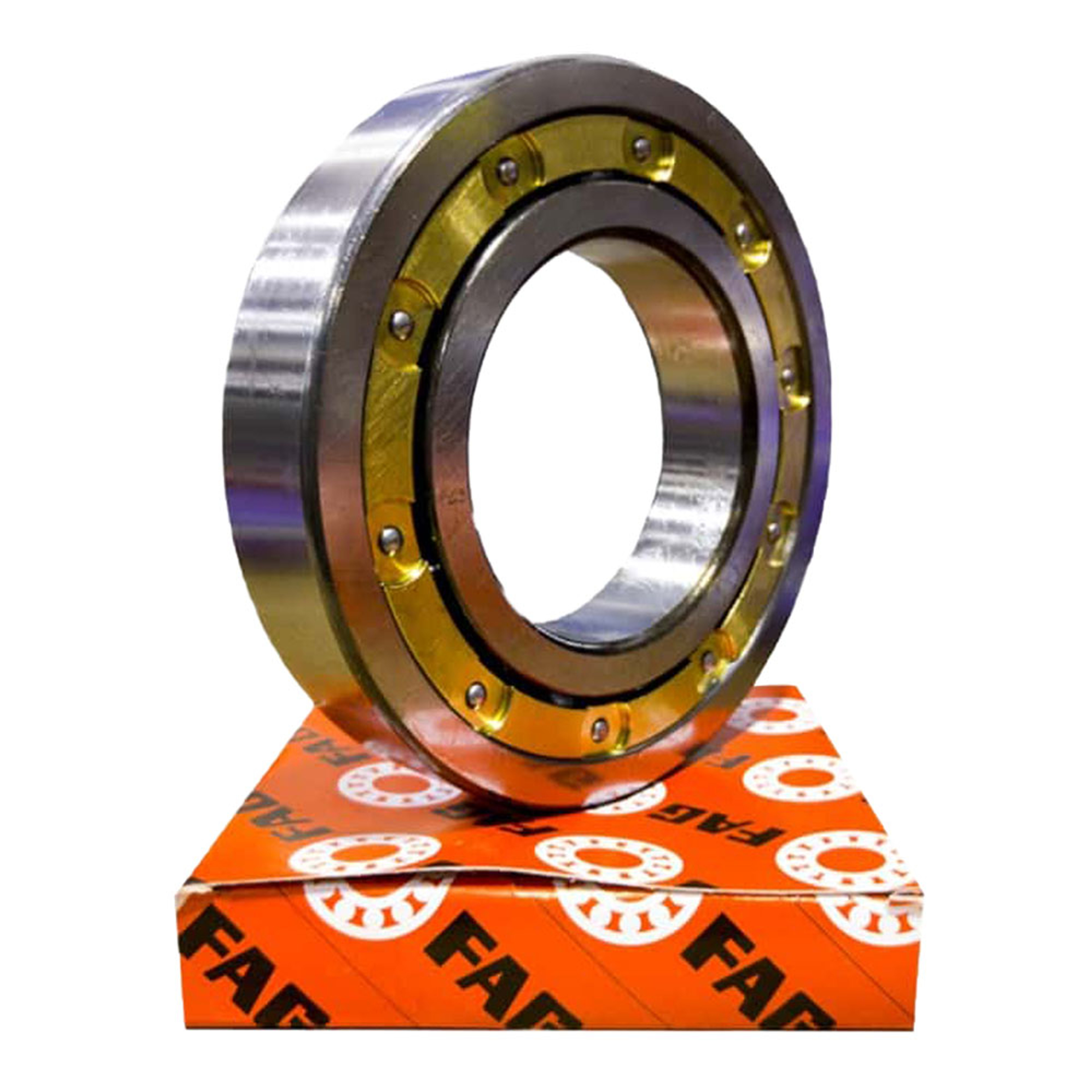

The 6330 M C3 J20 AA bearing is a premium FAG deep groove radial ball bearing, engineered for exceptional durability and efficiency in high-demand applications. Designed with an open design and C3 internal clearance and a brass cage (M), the FAG 6330 M C3 bearing ensures enhanced performance in both radial and axial loads, making it ideal for industrial and heavy-duty machinery. With a ceramic coated outer ring (J20AA), the bearing dimensions are 150x320x65mm.
| 63 | 30 | m | c3 | j20aa | |
|---|---|---|---|---|---|
| Metric, Medium | 150mm - Bore Size | Open Type | Brass Cage | Internal Clearance Greater Than Normal | Ceramic Coated Outer Ring |
Key Features
C3 Internal Clearance
The C3 internal clearance feature of the FAG 6330MC3J20AA bearing offers better heat expansion management and improved performance under high-speed or high-temperature conditions.
Non-Contact Insulation Coating (J20AA)
This feature of the 6330MC3/J20AA bearing provides electrical insulation, protecting against stray electric currents that can cause premature bearing failure in electric motors and generators. Its applied by plasma spraying, then sealed with synthetic resin, suitable for humid environments and able to withstand up to 3.000 V DC.
Brass Cage (M)
The FAG 6330 M C3 J20AA is a deep groove radial ball bearing with a brass cage that offers superior durability and wear resistance. This key feature ensures smooth operation every time even under high loads.
Product Information
Technical Data
Inside Diameter (mm) :
150mm
Outside Diameter (mm) :
320mm
Width (mm) :
65mm
Cage Type :
Brass
Seals Or Shields :
Open Type
Clearance :
C3
Dynamic Load Rating (kN) :
300
Static Load Rating (kN) :
290
Fatigue Load Rating (kN) :
13.1
Reference Speed Rating (r/min) :
3600
Limiting Speed Rating (r/min) :
3000
DescriptionThe 6330 M C3 J20 AA bearing is a premium FAG deep groove radial ball bearing, engineered for exceptional durability and efficiency in high-demand applications. Designed with an open design and C3 internal clearance and a brass cage (M), the FAG 6330 M C3 bearing ensures enhanced performance in both radial and axial loads, making it ideal for industrial and heavy-duty machinery. With a ceramic coated outer ring (J20AA), the bearing dimensions are 150x320x65mm.
Key FeaturesC3 Internal ClearanceThe C3 internal clearance feature of the FAG 6330MC3J20AA bearing offers better heat expansion management and improved performance under high-speed or high-temperature conditions. Non-Contact Insulation Coating (J20AA)This feature of the 6330MC3/J20AA bearing provides electrical insulation, protecting against stray electric currents that can cause premature bearing failure in electric motors and generators. Its applied by plasma spraying, then sealed with synthetic resin, suitable for humid environments and able to withstand up to 3.000 V DC. Brass Cage (M)The FAG 6330 M C3 J20AA is a deep groove radial ball bearing with a brass cage that offers superior durability and wear resistance. This key feature ensures smooth operation every time even under high loads. Product InformationBRAND: SKU:6330-m-c3-j20-aa-fag AVAILABILITY:In Stock ✅ WEIGHT:22.75 kg Technical DataInside Diameter (mm) :150mm Outside Diameter (mm) :320mm Width (mm) :65mm Cage Type :Brass Seals Or Shields :Open Type Clearance :C3 Dynamic Load Rating (kN) :300 Static Load Rating (kN) :290 Fatigue Load Rating (kN) :13.1 Reference Speed Rating (r/min) :3600 Limiting Speed Rating (r/min) :3000 | ||||||||||||
