7009CTRSUV1VLP3 - NSK Precision Angular Contact - 45x75x16mm

Name: 7009CTRSUV1VLP3 - NSK Precision Angular Contact - 45x75x16mm
Brand: NSK
SKU: 7009ctrsuv1vlp3-nsk
Availability: InStock

SKU: 7009ctrsuv1vlp3-nsk

Availability: In Stock ✅

BULK PRICING: Click Here to Enquire

C$392.16

7009CTRSUV1VLP3 - NSK Precision Angular Contact - 45x75x16mm

Description

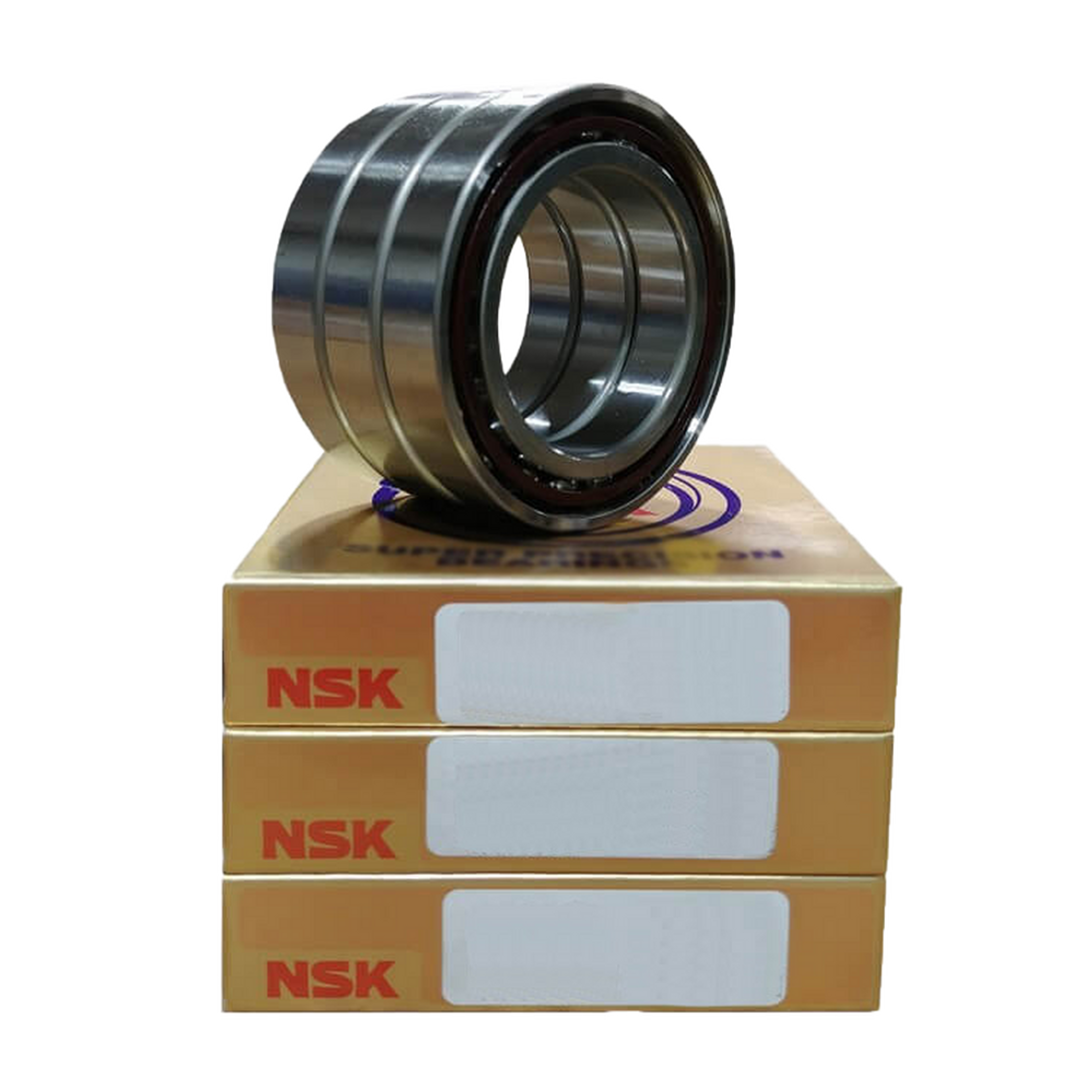

This 7009CTRSUV1VLP3 bearing is a Super Precision angular contact bearing with a 15° contact angle and a phenolic cage, this bearing is a universal fit single bearing with rubber seals, a light preload and a P3 precision rating. The bearing's dimensions are 45x75x16.

70	09	CTR	SU	V1V	L	P3
Extra Light Series	45mm - Bore Size	15° Contact Angle	Single Universal	Non-Contact Rubber Seal	Light Preload	Precision Rating

Product Information

BRAND:

SKU:7009ctrsuv1vlp3-nsk

AVAILABILITY:In Stock ✅

WEIGHT:0.238 kg

Technical Data

Inside Diameter (mm):

45mm

Outside Diameter (mm):

75mm

Width (mm):

16mm

Cage Type:

Plastic

Clearance:

Standard

Dynamic Load Rating (kN):

24.4

Static Load Rating (kN):

19.3

Grease Limiting Speed (r/min):

19200

Oil Limiting Speed (r/min):

29200

Preload:

Light

Seals Or Shields:

Two Rubber Seals

Description

70	09	CTR	SU	V1V	L	P3
Extra Light Series	45mm - Bore Size	15° Contact Angle	Single Universal	Non-Contact Rubber Seal	Light Preload	Precision Rating

Product Information

BRAND:

SKU:7009ctrsuv1vlp3-nsk

AVAILABILITY:In Stock ✅

WEIGHT:0.238 kg

Technical Data

Inside Diameter (mm):

45mm

Outside Diameter (mm):

75mm

Width (mm):

16mm

Cage Type:

Plastic

Clearance:

Standard

Dynamic Load Rating (kN):

24.4

Static Load Rating (kN):

19.3

Grease Limiting Speed (r/min):

19200

Oil Limiting Speed (r/min):

29200

Preload:

Light

Seals Or Shields:

Two Rubber Seals
