NSK

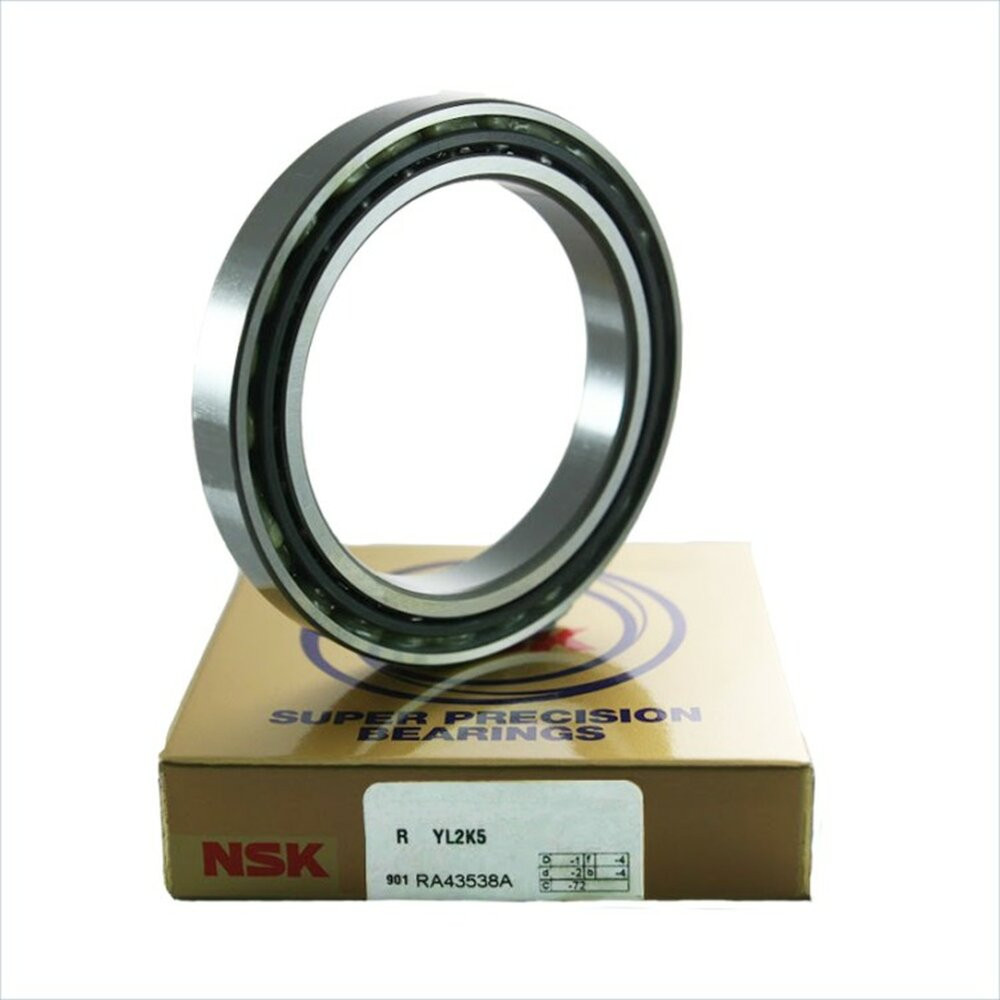

7903A5TRDUDMP3 - NSK Precision Angular Contact - 17x30x7mm
SKU: 7903a5trdudmp3-nsk
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
This 7903A5TRDUDMP3 bearing is a Super Precision angular contact bearing with a 25° contact angle and a phenolic cage, this bearing is a universal fit triple set of bearings with a medium preload and a P3 precision rating. The bearing's dimensions are 17x30x7.
| 79 | 03 | A5TR | DUD | M | P3 |
|---|---|---|---|---|---|
| Ultra Light Series | 17mm - Bore Size | 25° Contact Angle | Triplex Universal | Medium Preload | Precision Rating |
Product Information
Technical Data
Inside Diameter (mm):
17mm
Outside Diameter (mm):
30mm
Width (mm):
7mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
Standard
Dynamic Load Rating (kN):
4.75
Static Load Rating (kN):
2.8
Grease Limiting Speed (r/min):
42600
Oil Limiting Speed (r/min):
63900
Preload:
Medium
DescriptionThis 7903A5TRDUDMP3 bearing is a Super Precision angular contact bearing with a 25° contact angle and a phenolic cage, this bearing is a universal fit triple set of bearings with a medium preload and a P3 precision rating. The bearing's dimensions are 17x30x7.
Product InformationBRAND: SKU:7903a5trdudmp3-nsk AVAILABILITY:In Stock ✅ WEIGHT:0.017 kg Technical DataInside Diameter (mm):17mm Outside Diameter (mm):30mm Width (mm):7mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):4.75 Static Load Rating (kN):2.8 Grease Limiting Speed (r/min):42600 Oil Limiting Speed (r/min):63900 Preload:Medium | ||||||||||||
