Description

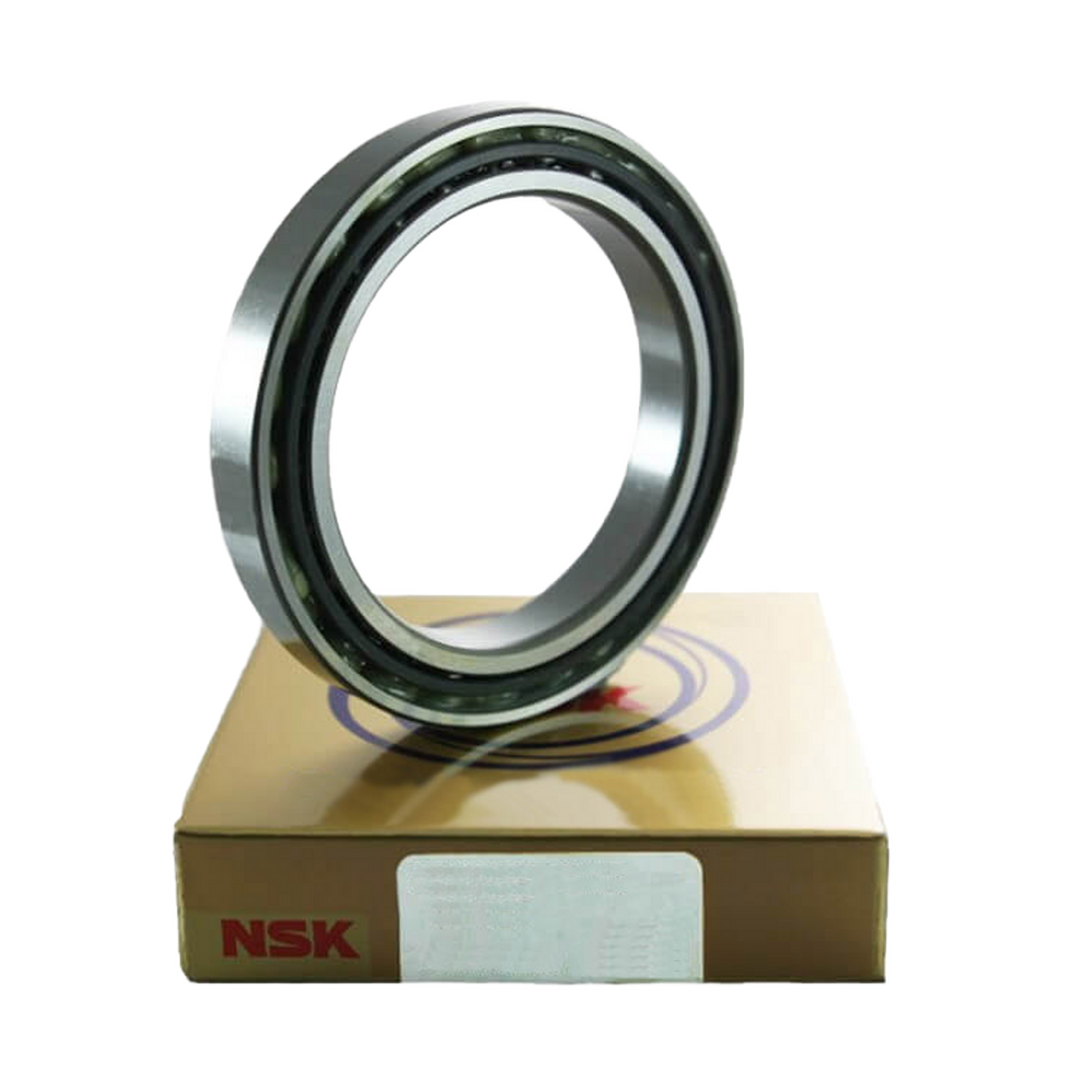

This 90BTR10STYNDBLP4A bearing is a super precision angular contact thrust bearing with a 40° contact angle, steel balls and a polyamide cage, this bearing is a back to back arranged double set of bearings with a light preload and a P3 precision rating. The bearing's dimensions are 60x95x18.
| 90 | BTR | 10 | S | TYN | DB | L | P4A | |
|---|---|---|---|---|---|---|---|---|
| Bore Size - 90mm | 40° Contact Angle | 10 Series | Rings and Rolling Elements - Bearing Steel | Ball Guided Polyamide Resin Cage | Open Type | Duplex Back to Back | Light | Precision Rating |
Product Information
Technical Data
Inside Diameter (mm) :
90mm
Outside Diameter (mm) :
140mm
Width (mm) :
45mm
Cage Type :
Plastic
Seals Or Shields :
Open Type
Clearance :
Standard
Dynamic Load Rating (kN) :
50
Static Load Rating (kN) :
105
Oil Limiting Speed (r/min) :
7400
Preload :
Light
DescriptionThis 90BTR10STYNDBLP4A bearing is a super precision angular contact thrust bearing with a 40° contact angle, steel balls and a polyamide cage, this bearing is a back to back arranged double set of bearings with a light preload and a P3 precision rating. The bearing's dimensions are 60x95x18.
Product InformationBRAND: SKU:90btr10styndblp4a-nsk AVAILABILITY:In Stock ✅ WEIGHT:1.198 kg Technical DataInside Diameter (mm) :90mm Outside Diameter (mm) :140mm Width (mm) :45mm Cage Type :Plastic Seals Or Shields :Open Type Clearance :Standard Dynamic Load Rating (kN) :50 Static Load Rating (kN) :105 Oil Limiting Speed (r/min) :7400 Preload :Light | ||||||||||||||||||
