Description

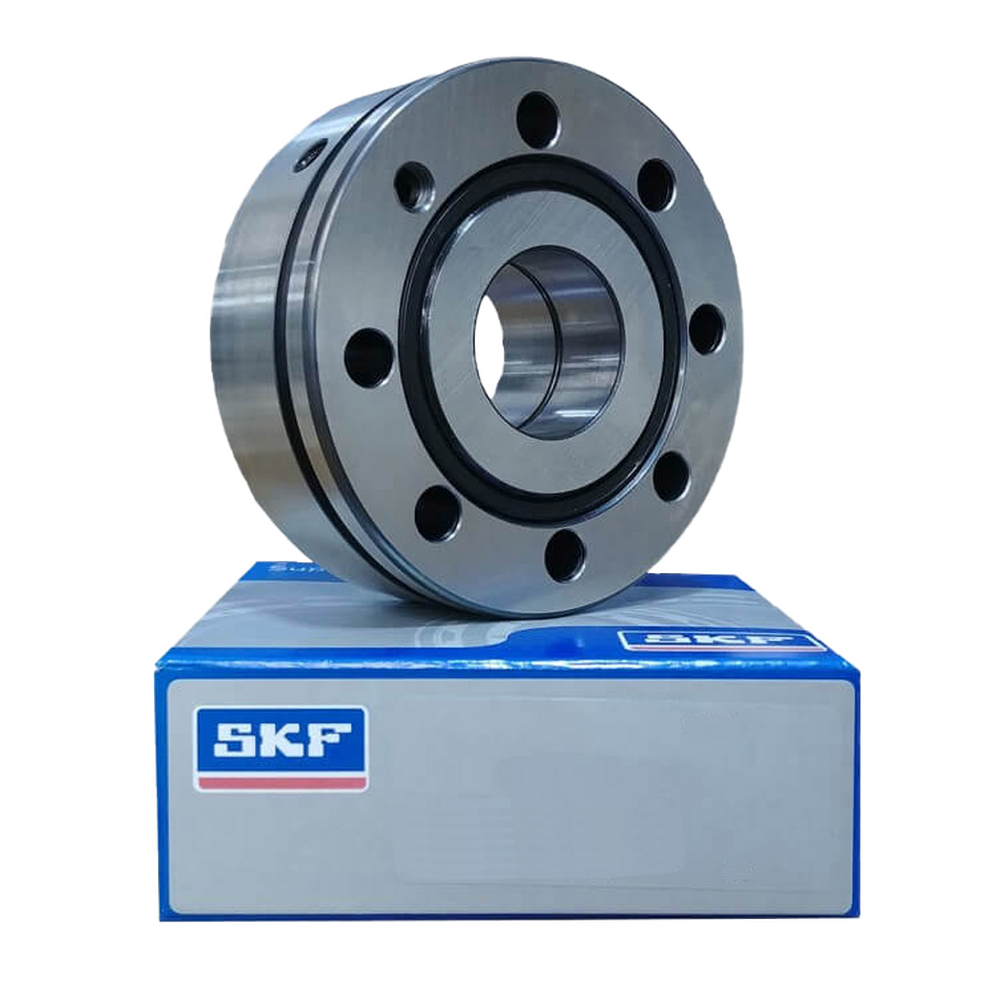

The BEAM015060C-2RSH Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. Engineered by SKF, an industry leader in bearing production, this bearing combines advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. With designs corresponding to the BEAS series, these double direction bearings have a much thicker outer ring which is equipped with through holes for attachment bolts. They have a 60° contact angle and an annular groove on the surface of the outer ring for dismounting the bearing from its seat on the screw drive shaft. The dimensions of this BEAM015060C-2RSH bearing are 15x60x25mm.
| BEAM | 015 | 060 | C | 2RSH |
|---|---|---|---|---|
| Double Direction Angular Contact Thrust Bearing For Bolt Mounting | 15mm - Bore Diameter | 60mm - Outside Diameter | Improved Internal Design | NBR Contact Seal on Both Sides |
Key Features
High Load Capacity
Designed to withstand high radial loads and axial loads in both directions, the BEAM015060C-2RSH Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications.
Precision Engineering
Manufactured with high precision to ensure smooth operation, the BEAM015060C-2RSH Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan.
Dual Seals
Equipped with dual rubber seals to protect against contaminants, the BEAM015060C-2RSH Bearing by SKF ensures a consistently clean and efficient lubrication throughout its operational life.
Angular Contact Design
This Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives.
Product Information
Technical Data
Inside Diameter (mm) :
15mm
Outside Diameter (mm) :
60mm
Width (mm) :
25mm
Clearance :
Standard
Seals Or Shields :
Two Rubber Seals
Cage Type :
Plastic
Dynamic Load Rating (kN) :
20.4
Fatigue Load Rating (kN) :
1.3
Static Load Rating (kN) :
33.5
Preload :
No Preload
Contact Angle :
60
Attainable Speed (r/min) :
4600
