Description

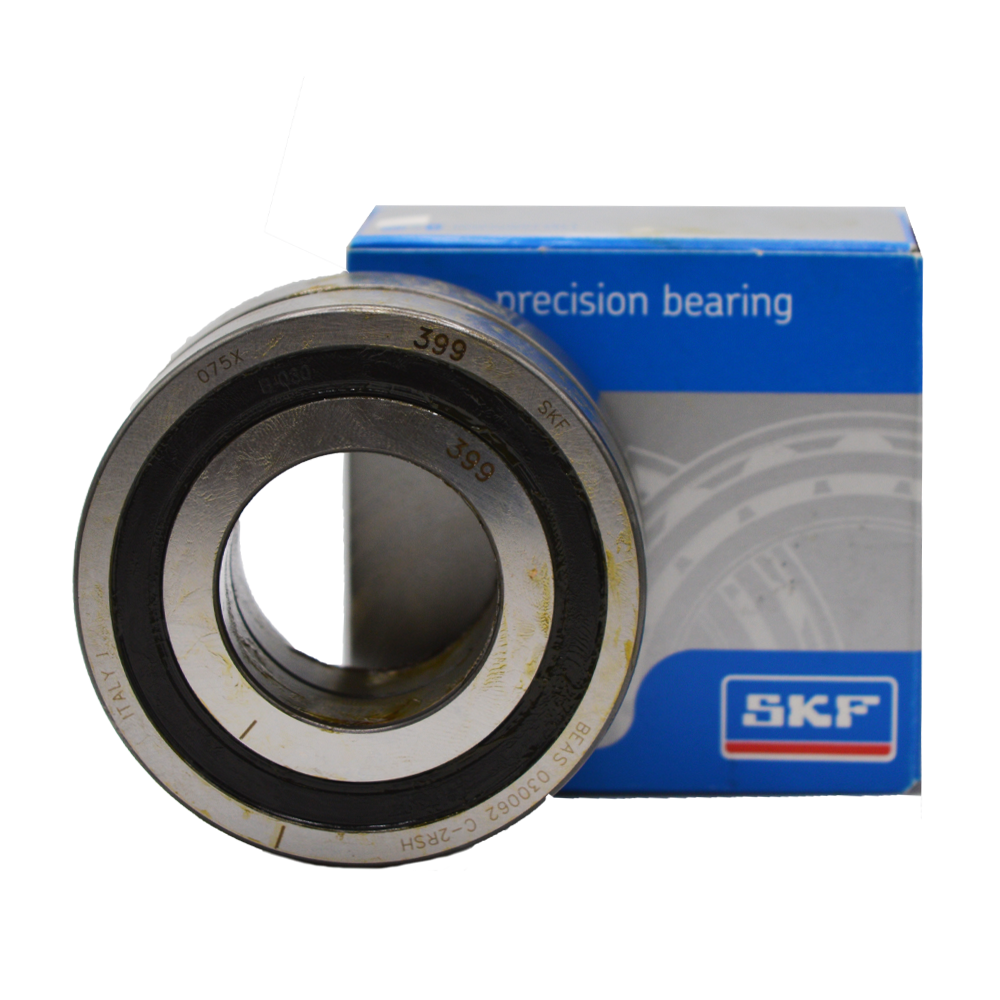

The BEAS030062-2RS Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. Engineered by SKF, an industry leader in bearing production, this bearing combines advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These double direction bearings have a 60° contact angle and an annular groove and lubrication holes in the outer ring for relubricating the bearing in situ. The dimensions of this BEAS030062-2RS bearing are 30x62x28mm.
| BEAS | 030 | 062 | 2RS |
|---|---|---|---|
| Double Direction Angular Contact Thrust Bearing For Bolt Mounting | 30mm - Bore Diameter | 62mm - Outside Diameter | NBR Contact Seal on Both Sides |
Key Features
High Load Capacity
Designed to withstand high radial loads and axial loads in both directions, the BEAS030062-2RS Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications.
Precision Engineering
Manufactured with high precision to ensure smooth operation, the BEAS030062-2RS Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan.
Dual Seals
Equipped with dual rubber seals to protect against contaminants, the BEAS030062-2RS Bearing by SKF ensures a consistently clean and efficient lubrication throughout its operational life.
Angular Contact Design
This Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives.
Product Information
Technical Data
Inside Diameter (mm) :
30mm
Outside Diameter (mm) :
62mm
Width (mm) :
28mm
Cage Type :
Plastic
Seals Or Shields :
Two Rubber Seals
Clearance :
Standard
Dynamic Load Rating (kN) :
31
Fatigue Load Rating (kN) :
2.6
Static Load Rating (kN) :
69.5
Preload :
No Preload
Contact Angle :
60
Attainable Speed (r/min) :
3200
