Description

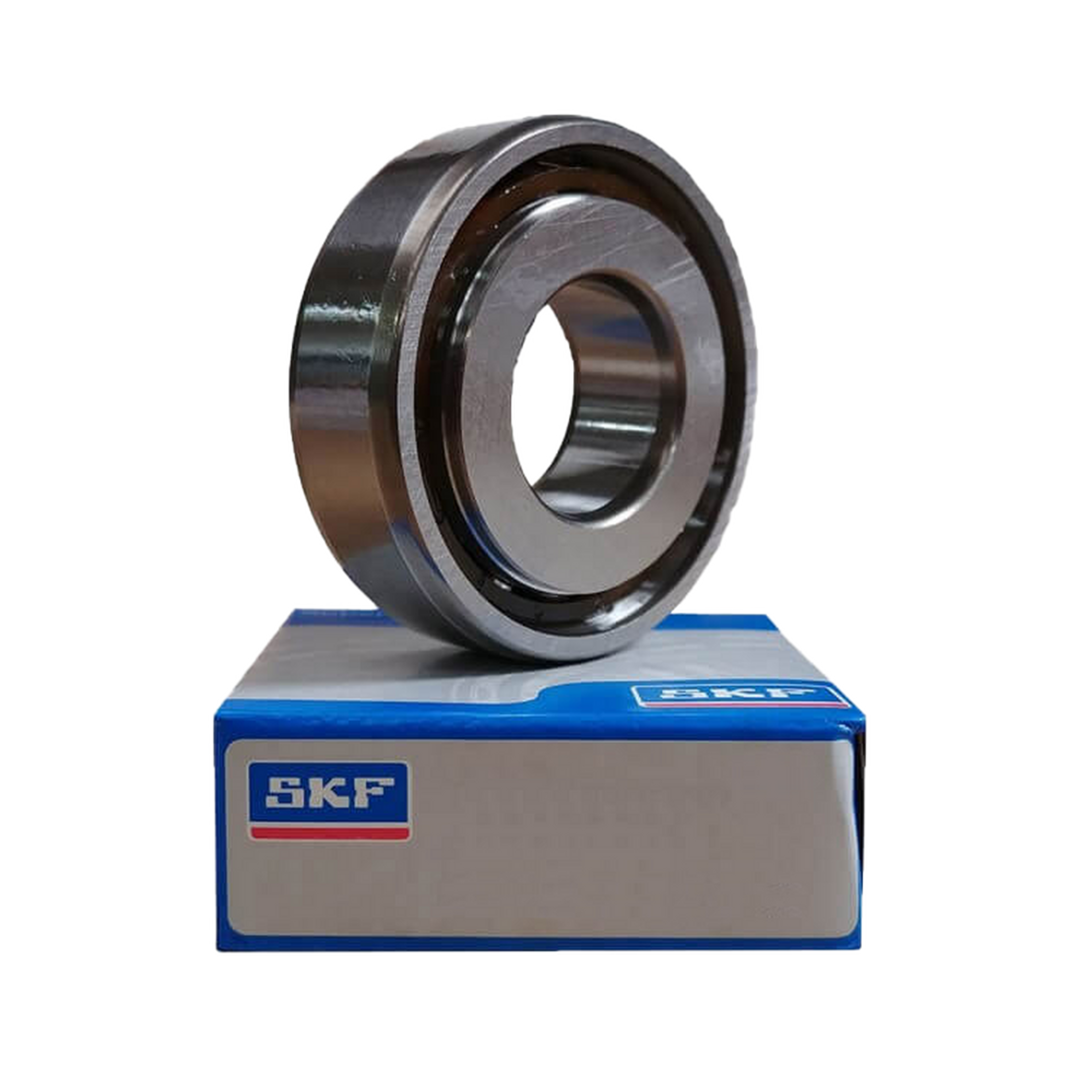

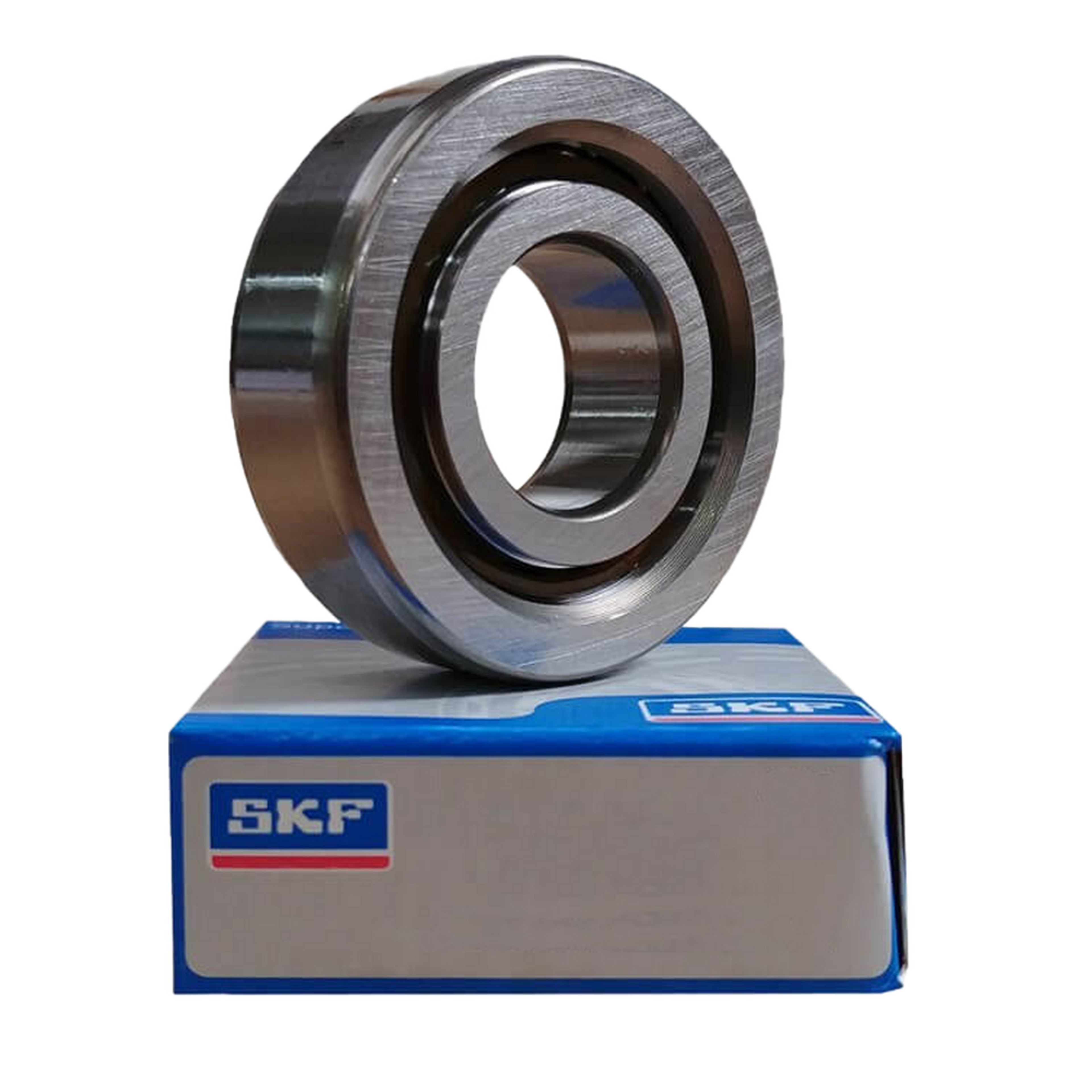

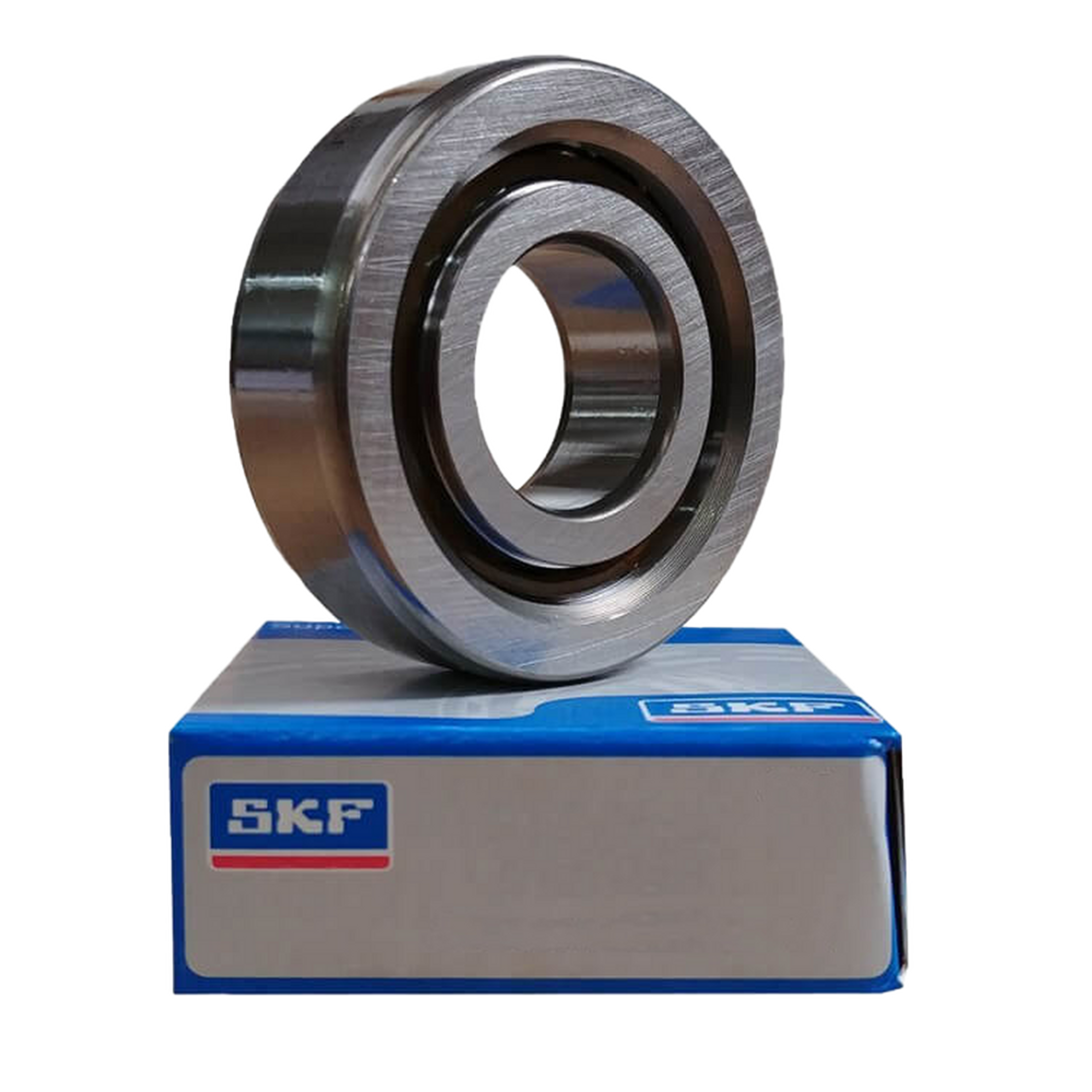

Engineered by SKF, the BSA202CGB Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSA202 CGB bearing are 15x35x11mm.
| BSA2 | 02 | C | GB |
|---|---|---|---|
| Single Direction Bearing - ISO Dimension Series 02 | 15mm - Bore Size | Improved Internal Design | Universally Matchable, Heavy Preload |
Key Features
High Load Capacity
Designed to withstand heavy radial loads and heavy axial loads in one direction, the BSA202CGB Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs.
Precision Engineering
Manufactured with high precision to ensure smooth operation, the BSA202 CGB Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan.
Angular Contact Design
This Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives.
Product Information
Technical Data
Inside Diameter (mm):
15mm
Outside Diameter (mm):
35mm
Width (mm):
11mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
Standard
Dynamic Load Rating (kN):
12.7
Static Load Rating (kN):
25.5
Fatigue Load Rating (kN):
0.95
Grease Limiting Speed (r/min):
12000
Oil Limiting Speed (r/min):
15000
Preload:
Medium
Contact Angle:
62
DescriptionEngineered by SKF, the BSA202CGB Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSA202 CGB bearing are 15x35x11mm.
Key FeaturesHigh Load CapacityDesigned to withstand heavy radial loads and heavy axial loads in one direction, the BSA202CGB Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs. Precision EngineeringManufactured with high precision to ensure smooth operation, the BSA202 CGB Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan. Angular Contact DesignThis Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives. Product InformationBRAND: SKU:bsa202cgb-skf AVAILABILITY:In Stock ✅ WEIGHT:0.0484 kg Technical DataInside Diameter (mm):15mm Outside Diameter (mm):35mm Width (mm):11mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):12.7 Static Load Rating (kN):25.5 Fatigue Load Rating (kN):0.95 Grease Limiting Speed (r/min):12000 Oil Limiting Speed (r/min):15000 Preload:Medium Contact Angle:62 | ||||||||
