Description

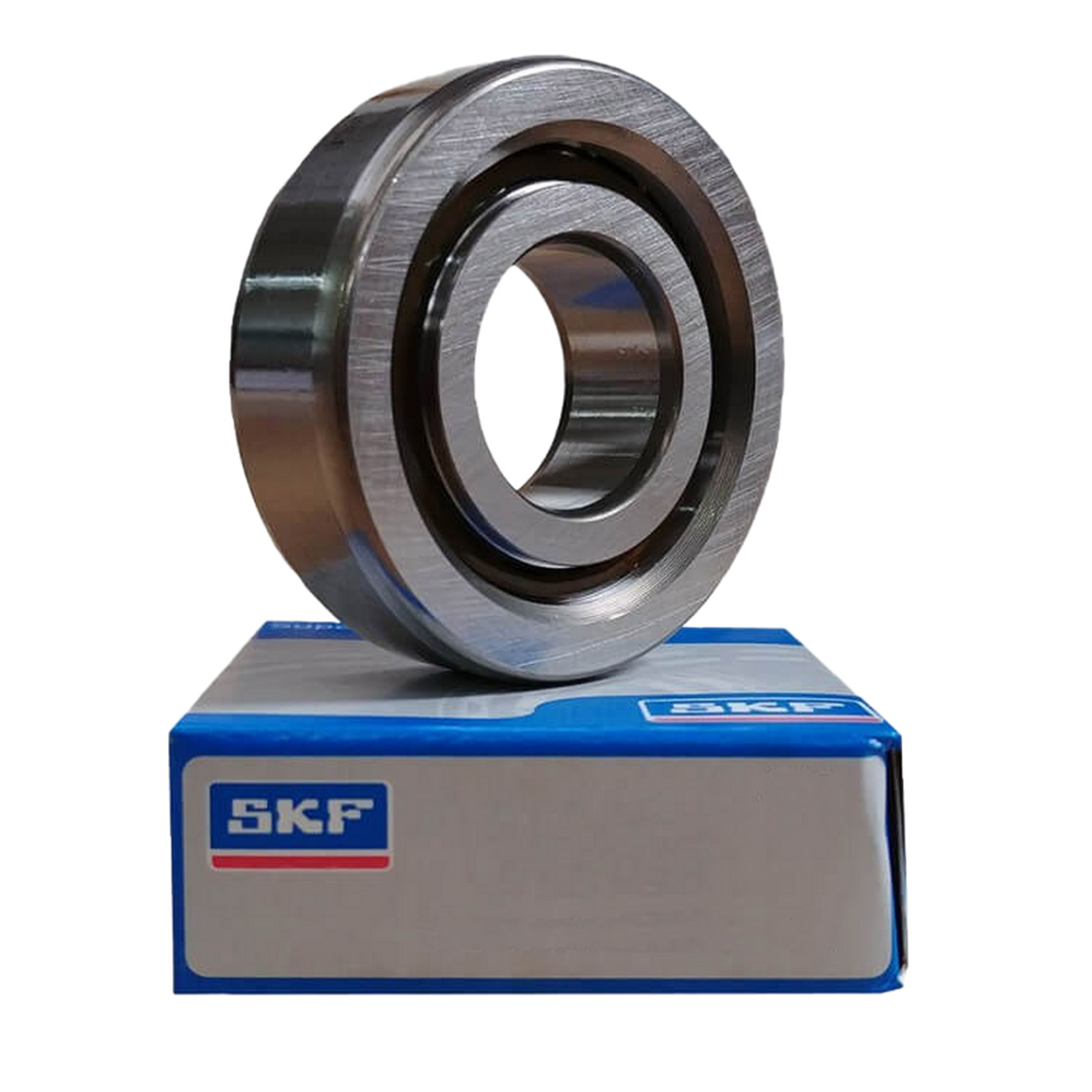

Engineered by SKF, the BSD2047CGA Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSD2047 CGA bearing are 20x47x15mm.
| BSD | 20 | 47 | C | GA |
|---|---|---|---|---|
| Single Direction Angular Contact Thrust Bearing | 20mm - Bore Diameter | 47mm – Outside Diameter | Improved Internal Design | Universally Matchable, Light Preload |
Key Features
High Load Capacity
Designed to withstand heavy radial loads and heavy axial loads in one direction, the BSD2047CGA Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs.
Precision Engineering
Manufactured with high precision to ensure smooth operation, the BSD2047 CGA Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan.
Angular Contact Design
This Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives.
Product Information
Technical Data
Inside Diameter (mm):
20mm
Outside Diameter (mm):
47mm
Width (mm):
15mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
Standard
Dynamic Load Rating (kN):
22
Static Load Rating (kN):
49
Fatigue Load Rating (kN):
1.8
Oil Limiting Speed (r/min):
12000
Grease Limiting Speed (r/min):
9000
Preload:
Light
Contact Angle:
62
DescriptionEngineered by SKF, the BSD2047CGA Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSD2047 CGA bearing are 20x47x15mm.
Key FeaturesHigh Load CapacityDesigned to withstand heavy radial loads and heavy axial loads in one direction, the BSD2047CGA Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs. Precision EngineeringManufactured with high precision to ensure smooth operation, the BSD2047 CGA Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan. Angular Contact DesignThis Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives. Product InformationBRAND: SKU:bsd2047cga-skf AVAILABILITY:In Stock ✅ WEIGHT:0.13 kg Technical DataInside Diameter (mm):20mm Outside Diameter (mm):47mm Width (mm):15mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):22 Static Load Rating (kN):49 Fatigue Load Rating (kN):1.8 Oil Limiting Speed (r/min):12000 Grease Limiting Speed (r/min):9000 Preload:Light Contact Angle:62 | ||||||||||
