SKF
SKU: bsd3062cgb-skf
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire

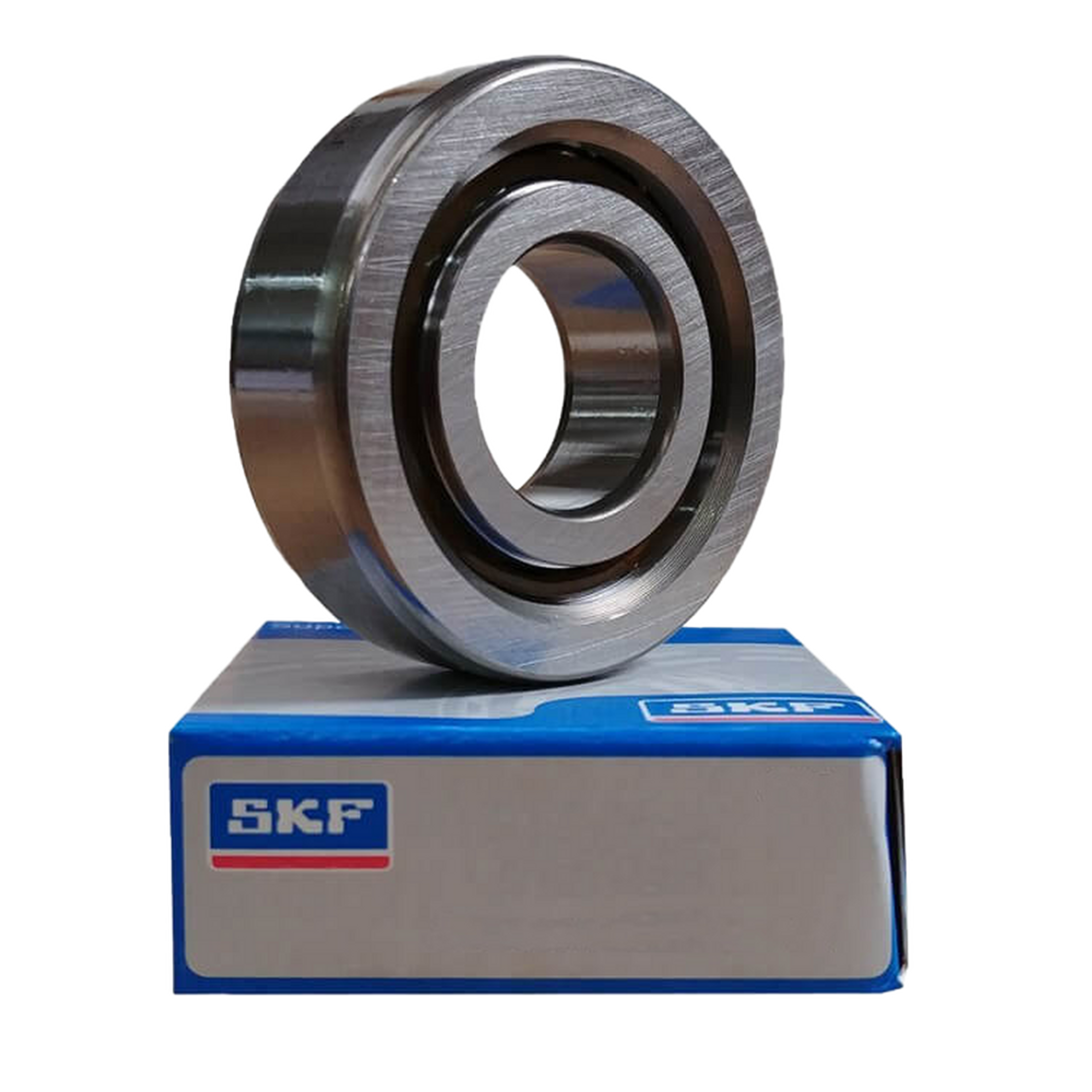

Engineered by SKF, the BSD3062CGB Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSD3062 CGB bearing are 30x62x15mm.
| BSD | 30 | 62 | C | GB |
|---|---|---|---|---|
| Single Direction Angular Contact Thrust Bearing | 30mm - Bore Diameter | 62mm – Outside Diameter | Improved Internal Design | Universally Matchable, Heavy Preload |
Designed to withstand heavy radial loads and heavy axial loads in one direction, the BSD3062CGB Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs.
Manufactured with high precision to ensure smooth operation, the BSD3062 CGB Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan.
This Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives.
30mm
62mm
15mm
Plastic
Open Type
Standard
28.5
71
2.65
8000
9500
Medium
62
DescriptionEngineered by SKF, the BSD3062CGB Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSD3062 CGB bearing are 30x62x15mm.
Key FeaturesHigh Load CapacityDesigned to withstand heavy radial loads and heavy axial loads in one direction, the BSD3062CGB Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs. Precision EngineeringManufactured with high precision to ensure smooth operation, the BSD3062 CGB Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan. Angular Contact DesignThis Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives. Product InformationBRAND: SKU:bsd3062cgb-skf AVAILABILITY:In Stock ✅ WEIGHT:0.211 kg Technical DataInside Diameter (mm):30mm Outside Diameter (mm):62mm Width (mm):15mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):28.5 Static Load Rating (kN):71 Fatigue Load Rating (kN):2.65 Grease Limiting Speed (r/min):8000 Oil Limiting Speed (r/min):9500 Preload:Medium Contact Angle:62 | ||||||||||
Bulk PricingFor bulk discount on this product, contact our dedicated sales team today by filling out the form below: | ||||||||||
