Description

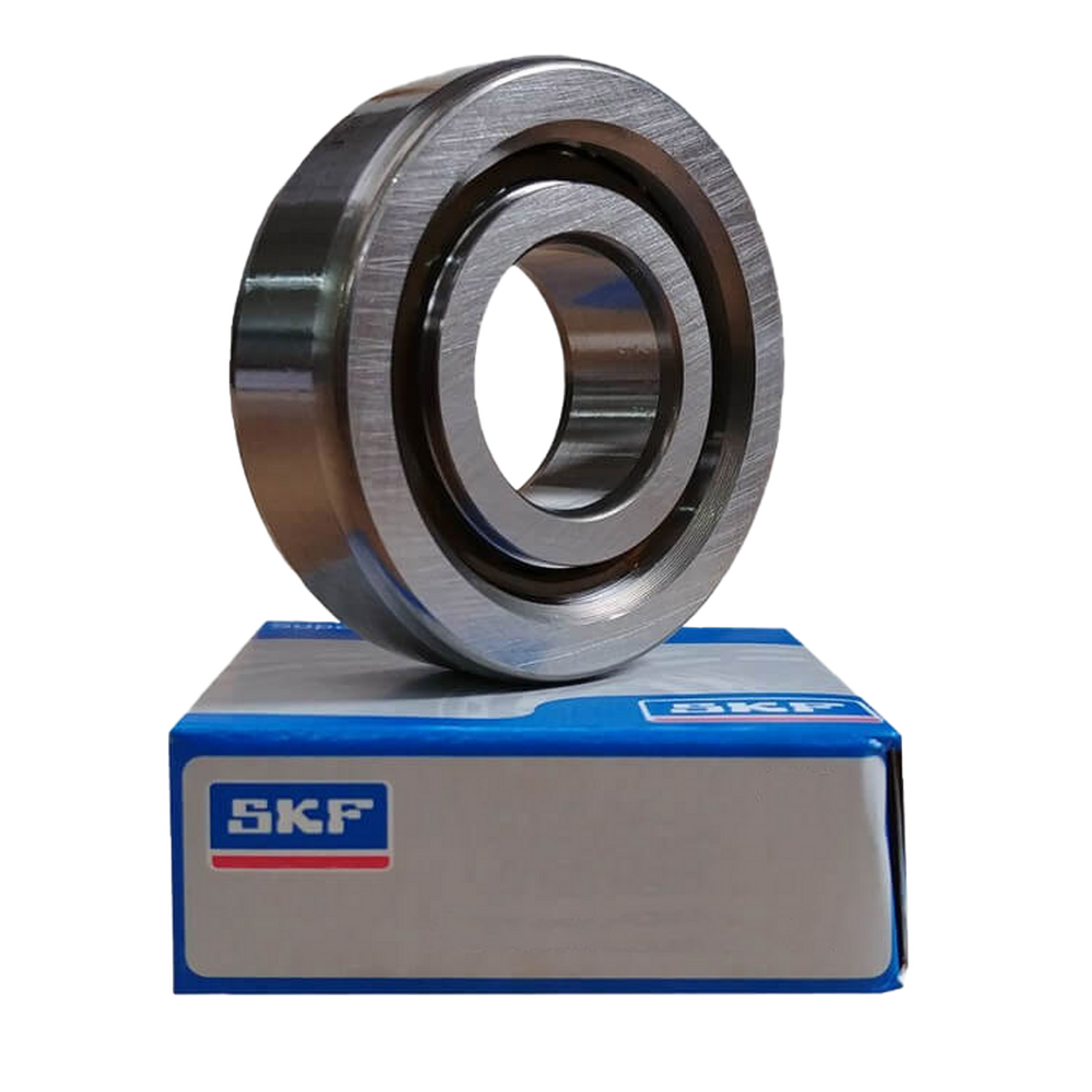

Engineered by SKF, the BSD4072CGA Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSD4072 CGA bearing are 40x72x15mm.
| BSD | 40 | 72 | C | GA |
|---|---|---|---|---|
| Single Direction Angular Contact Thrust Bearing | 40mm - Bore Diameter | 72mm – Outside Diameter | Improved Internal Design | Universally Matchable, Light Preload |
Key Features
High Load Capacity
Designed to withstand heavy radial loads and heavy axial loads in one direction, the BSD4072CGA Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs.
Precision Engineering
Manufactured with high precision to ensure smooth operation, the BSD4072 CGA Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan.
Angular Contact Design
This Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives.
Product Information
Technical Data
Inside Diameter (mm):
40mm
Outside Diameter (mm):
72mm
Width (mm):
15mm
Cage Type:
Plastic
Seals Or Shields:
Open Type
Clearance:
Standard
Dynamic Load Rating (kN):
36.5
Static Load Rating (kN):
98
Fatigue Load Rating (kN):
3.65
Grease Limiting Speed (r/min):
7500
Oil Limiting Speed (r/min):
9000
Preload:
Light
Contact Angle:
62
DescriptionEngineered by SKF, the BSD4072CGA Super Precision Angular Contact Thrust is a premium-quality bearing designed specifically for high-performance screw drives. SKF is an industry leader in bearing production, and with this bearing they have combined advanced technology with robust materials to ensure exceptional durability, precision, and efficiency in demanding applications. These bearings have a 62° contact angle and accommodate axial loads in one direction only, meaning they are adjusted against a second bearing or fitted as a set. The dimensions of this BSD4072 CGA bearing are 40x72x15mm.
Key FeaturesHigh Load CapacityDesigned to withstand heavy radial loads and heavy axial loads in one direction, the BSD4072CGA Angular Contact Thrust Bearing is purposely manufactured to provide reliable performance in heavy-duty applications, including incidental overloading, better than other more conventional designs. Precision EngineeringManufactured with high precision to ensure smooth operation, the BSD4072 CGA Angular Contact Thrust Bearing helps to reduce friction and wear, ultimately contributing to an extended lifespan. Angular Contact DesignThis Angular Contact Thrust Bearing offers excellent stability and support for axial loads, enhancing the performance and accuracy of screw drivers. It is ideal for use in a variety of screw drives. Product InformationBRAND: SKU:bsd4072cga-skf AVAILABILITY:In Stock ✅ WEIGHT:0.254 kg Technical DataInside Diameter (mm):40mm Outside Diameter (mm):72mm Width (mm):15mm Cage Type:Plastic Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):36.5 Static Load Rating (kN):98 Fatigue Load Rating (kN):3.65 Grease Limiting Speed (r/min):7500 Oil Limiting Speed (r/min):9000 Preload:Light Contact Angle:62 | ||||||||||
