Description

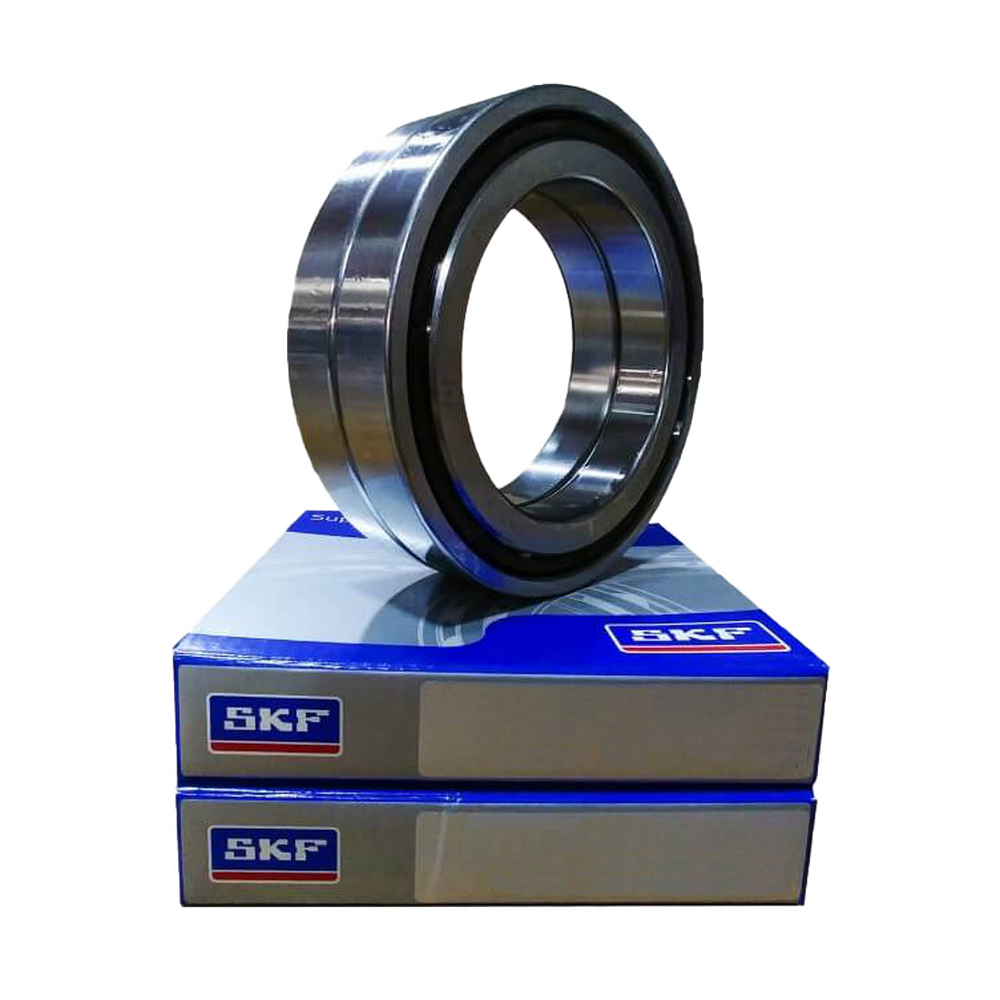

Enhance the performance of your machinery with the SKF BTM100A/P4CDBA Super Precision Angular Contact Thrust Ball Bearing. Specifically engineered for high-speed applications, these bearings provide exceptional accuracy and stability and are designed to axially locate the shafts of spindles in both directions. BTM100 A/P4CDBA bearings offer a high-speed design and are intended for mounting in combination with NN30 K or N10 K Cylindrical Roller Bearings. The dimensions of this BTM100A/P4CDBA bearing are 100x150x45mm.
| BTM | 100 | A | /P4C | DB | A |
|---|---|---|---|---|---|
| High-Speed Design Double Direction Angular Contact Thrust Bearing | 100mm - Bore Size | 30° Contact Angle | Precision Rating ISO Tolerance Class 4 | Two Bearings Arranged Back-to-Back | Light Preload |
Key Features
High Precision
Manufactured with tight tolerances, the Super Precision BTM100 A/P4CDBA bearing is manufactured by SKF to ensure a consistently high rotational accuracy and optimal performance.
Double Directional Loads
Capable of handling axial loads in both directions, the BTM100A/P4CDBA Super Precision Angular Contact Thrust Bearing has a double direction design which provides enhanced versatility and reliability in machinery.
Angular Contact Design
The BTM100 A/P4CDBA bearing is made up of two non-separable Single Row Angular Contact Bearings in a back-to-back arrangement and are designed to accommodate axial loads in both directions while providing a high degree of system rigidity. They have a 30° contact angle which can operate at much higher speeds than bearings with a 40° contact angle.
Product Information
Technical Data
Inside Diameter (mm) :
100mm
Outside Diameter (mm) :
150mm
Width (mm) :
45mm
Cage Type :
Plastic
Seals Or Shields :
Open Type
Clearance :
Standard
Dynamic Load Rating (kN) :
41.5
Static Load Rating (kN) :
102
Fatigue Load Rating (kN) :
3.8
Grease Limiting Speed (r/min) :
6300
Oil Limiting Speed (r/min) :
7900
Preload :
Light
Contact Angle :
30
