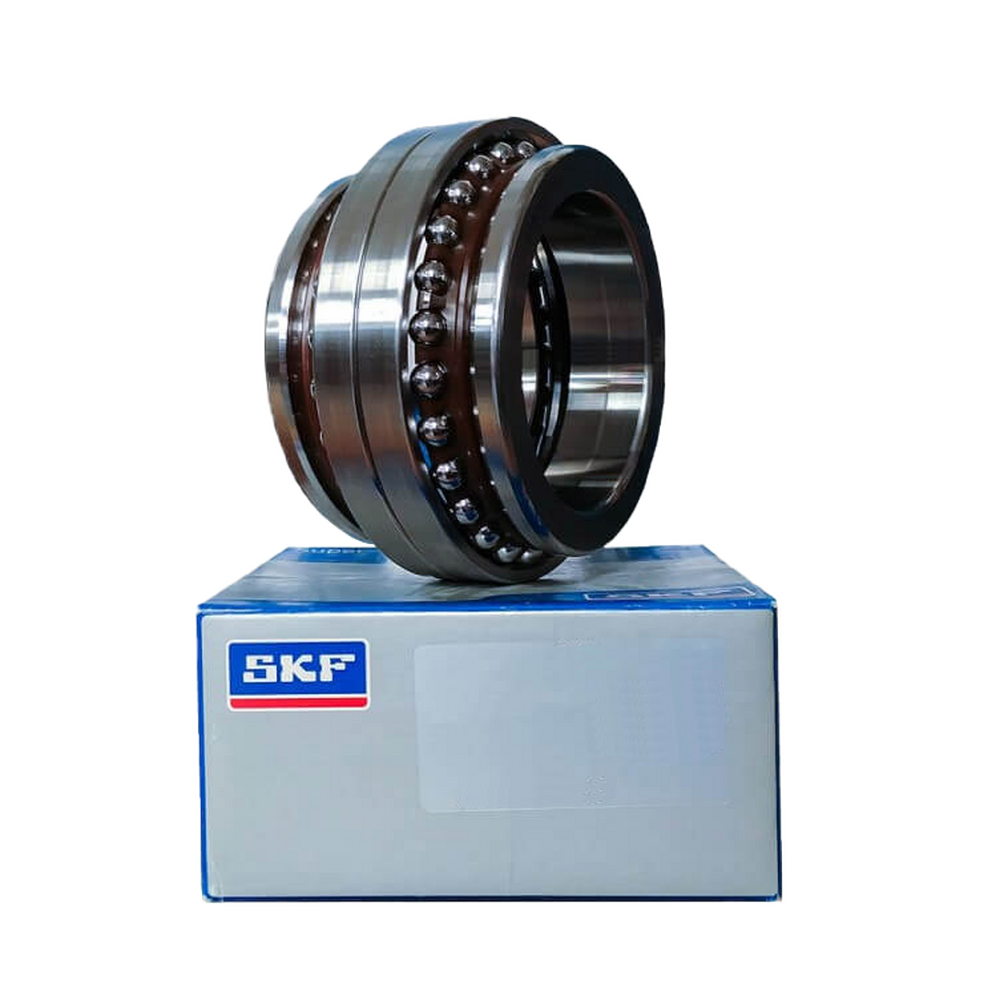

Enhance the performance of your machinery with the SKF BTW100CTN9/SP Super Precision Angular Contact Thrust Ball Bearing. Specifically engineered for high-speed applications, these bearings provide exceptional accuracy and stability and are designed to axially locate the shafts of spindles in both directions. BTW100 CTN9/SP bearings offer a high-speed design and are intended for mounting in combination with NN30 K or N10 K Cylindrical Roller Bearings. The dimensions of this BTW100CTN9/SP bearing are 100x150x60mm.

Key Features

High Precision

Manufactured with tight tolerances, the Super Precision BTW100 CTN9/SP bearing is manufactured by SKF to ensure a consistently high rotational accuracy and optimal performance.

Double Directional Loads

Capable of handling axial loads in both directions, the BTW100CTN9/SP Super Precision Angular Contact Thrust Bearing has a double direction design which provides enhanced versatility and reliability in machinery.

Angular Contact Design

The BTW100 CTN9/SP bearing is made up of two separable Single Row Angular Contact Thrust Ball Bearings with a 60° contact angle in a back-to-back arrangement. Configured in this way, and with the large number of balls the bearings contain, means these bearings can accommodate heavy axial loads in both directions while providing a high degree of system rigidity.
