Description

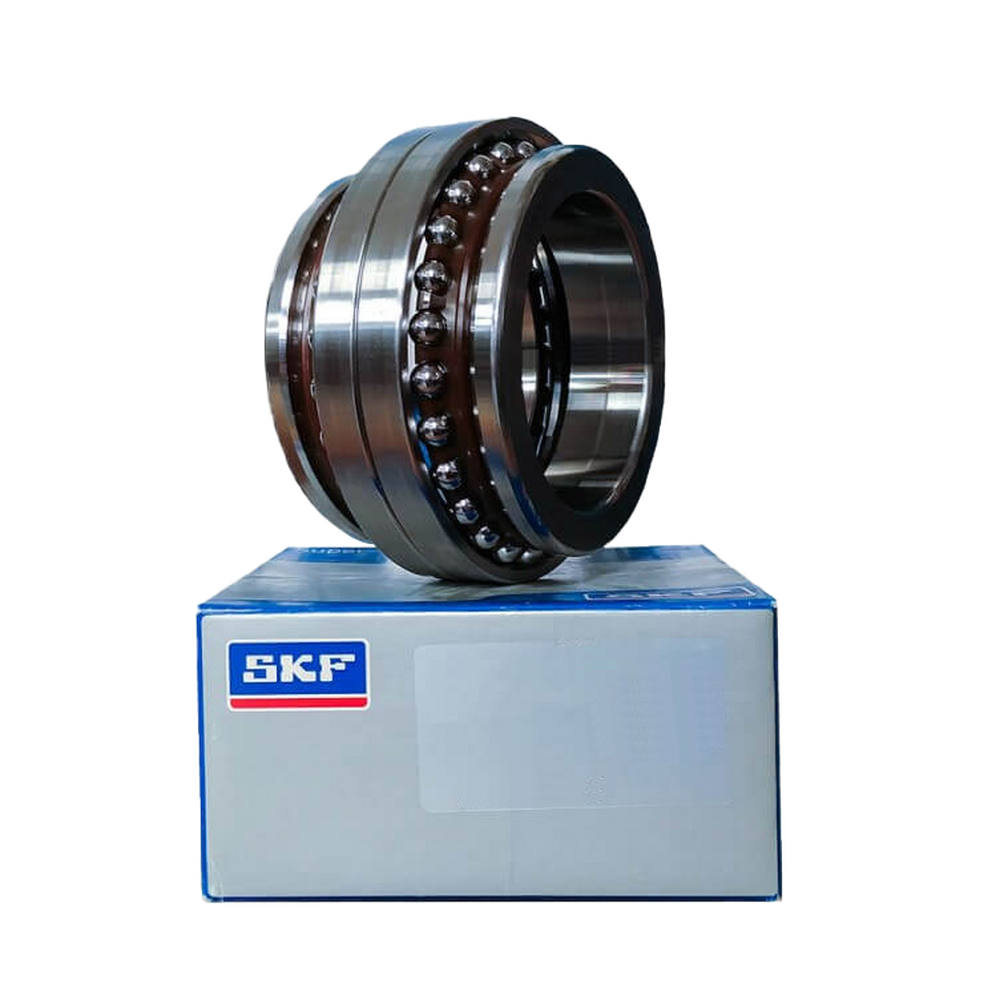

Enhance the performance of your machinery with the SKF BTW120CTN9/SPW33 Super Precision Angular Contact Thrust Ball Bearing. Specifically engineered for high-speed applications, these bearings provide exceptional accuracy and stability and are designed to axially locate the shafts of spindles in both directions. BTW120 CTN9/SPW33 bearings offer a high-speed design and are intended for mounting in combination with NN30 K or N10 K Cylindrical Roller Bearings. The dimensions of this BTW120CTN9/SPW33 bearing are 120x180x72mm.
| BTW | 120 | C | TN9 | /SP | W33 |
|---|---|---|---|---|---|
| Basic Design Double Direction Angular Contact Thrust Bearing | 120mm - Bore Size | 60° Contact Angle | Two Glass Fibre Reinforced PA66 Cages, Snap-Type, Ball Centered | ISO Tolerance Class 5 Dimensional Accuracy, Class 4 Running Accuracy | Annular Groove and Three Lubrication Holes in the Outer Ring |
Key Features
High Precision
Manufactured with tight tolerances, the Super Precision BTW120 CTN9/SPW33 bearing is manufactured by SKF to ensure a consistently high rotational accuracy and optimal performance.
Double Directional Loads
Capable of handling axial loads in both directions, the BTW120CTN9/SPW33 Super Precision Angular Contact Thrust Bearing has a double direction design which provides enhanced versatility and reliability in machinery.
Angular Contact Design
The BTW120 CTN9/SPW33 bearing is made up of two separable Single Row Angular Contact Thrust Ball Bearings with a 60° contact angle in a back-to-back arrangement. Configured in this way, and with the large number of balls the bearings contain, means these bearings can accommodate heavy axial loads in both directions while providing a high degree of system rigidity.
Product Information
Technical Data
Inside Diameter (mm) :
120mm
Outside Diameter (mm) :
180mm
Width (mm) :
72mm
Clearance :
Standard
Seals Or Shields :
Open Type
Cage Type :
Plastic
Dynamic Load Rating (kN) :
85.2
Fatigue Load Rating (kN) :
10.8
Grease Limiting Speed (r/min) :
4000
Oil Limiting Speed (r/min) :
4800
Static Load Rating (kN) :
280
Preload :
No Preload
Contact Angle :
60
DescriptionEnhance the performance of your machinery with the SKF BTW120CTN9/SPW33 Super Precision Angular Contact Thrust Ball Bearing. Specifically engineered for high-speed applications, these bearings provide exceptional accuracy and stability and are designed to axially locate the shafts of spindles in both directions. BTW120 CTN9/SPW33 bearings offer a high-speed design and are intended for mounting in combination with NN30 K or N10 K Cylindrical Roller Bearings. The dimensions of this BTW120CTN9/SPW33 bearing are 120x180x72mm.
Key FeaturesHigh PrecisionManufactured with tight tolerances, the Super Precision BTW120 CTN9/SPW33 bearing is manufactured by SKF to ensure a consistently high rotational accuracy and optimal performance. Double Directional LoadsCapable of handling axial loads in both directions, the BTW120CTN9/SPW33 Super Precision Angular Contact Thrust Bearing has a double direction design which provides enhanced versatility and reliability in machinery. Angular Contact DesignThe BTW120 CTN9/SPW33 bearing is made up of two separable Single Row Angular Contact Thrust Ball Bearings with a 60° contact angle in a back-to-back arrangement. Configured in this way, and with the large number of balls the bearings contain, means these bearings can accommodate heavy axial loads in both directions while providing a high degree of system rigidity. Product InformationBRAND: SKU:btw120ctn9/spw33-skf AVAILABILITY:In Stock ✅ WEIGHT:5.05 kg Technical DataInside Diameter (mm) :120mm Outside Diameter (mm) :180mm Width (mm) :72mm Clearance :Standard Seals Or Shields :Open Type Cage Type :Plastic Dynamic Load Rating (kN) :85.2 Fatigue Load Rating (kN) :10.8 Grease Limiting Speed (r/min) :4000 Oil Limiting Speed (r/min) :4800 Static Load Rating (kN) :280 Preload :No Preload Contact Angle :60 | ||||||||||||
