Description

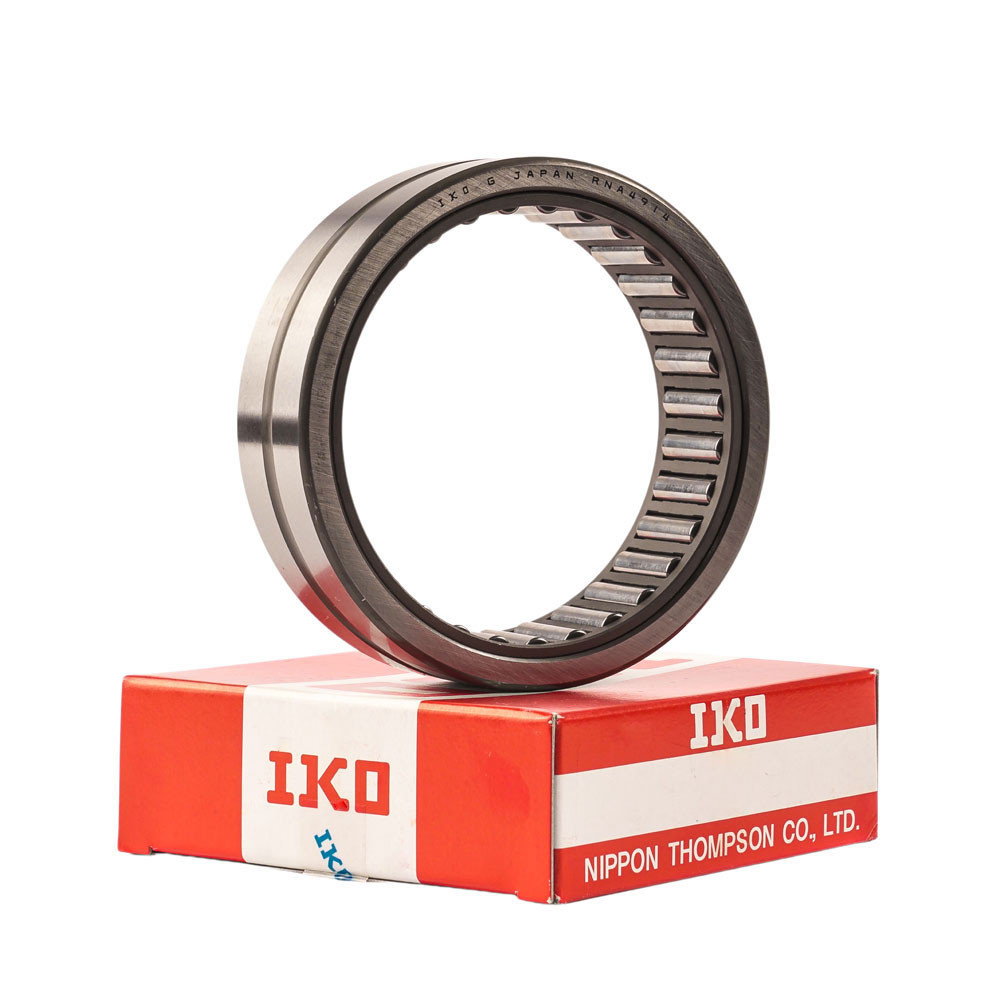

The NA4868 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage and has an oil groove and an oil hole. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 340X420X80mm.
The INA equivalent is NA4868-XL.
| NA | 48 | 68 | |
|---|---|---|---|
| Single Row Caged Needle Roller Bearing | Dimension Series 48 | 340mm - Bore Size | Including Inner Ring |
Product Information
Technical Data
Inside Diameter (mm):
340
Outside Diameter (mm):
420
Width (mm):
80
Nominal Roller Set Bore Diameter (mm):
370
Dynamic Load Rating (kN):
651
Static Load Rating (kN):
2140
Allowable Rotational Speed (r/min):
700
INA Equivalent:
NA4868-XL
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-20°C/-4°F
DescriptionThe NA4868 is a Standard Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage and has an oil groove and an oil hole. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 340X420X80mm. The INA equivalent is NA4868-XL.
Product InformationBRAND: SKU:na4868-iko AVAILABILITY:In Stock ✅ WEIGHT:25 kg Technical DataInside Diameter (mm):340 Outside Diameter (mm):420 Width (mm):80 Nominal Roller Set Bore Diameter (mm):370 Dynamic Load Rating (kN):651 Static Load Rating (kN):2140 Allowable Rotational Speed (r/min):700 INA Equivalent:NA4868-XL Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||||
