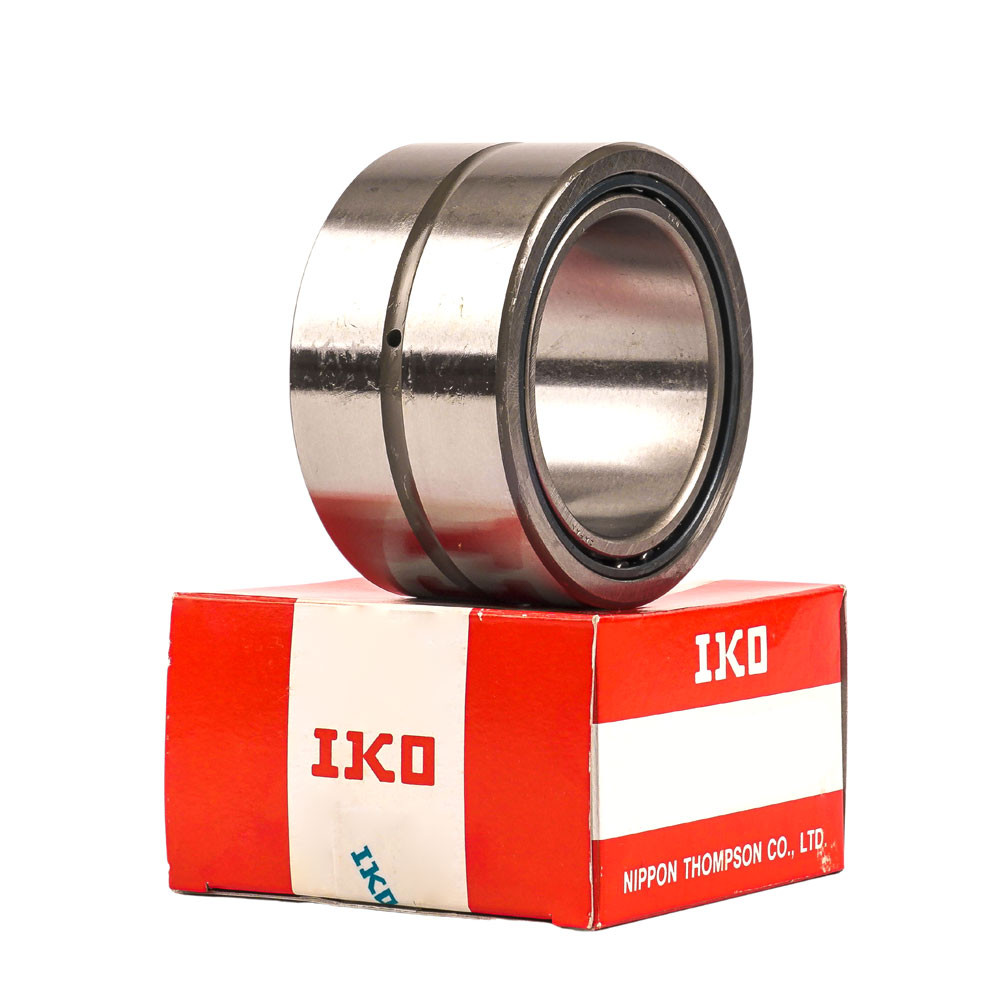

NA6916UU IKO Machined Needle Roller Bearing - 80X110X54MM
SKU: na6916uu-iko
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
The NA6916UU is a Standard Duty, Double Row Machined Needle Roller Bearing with an Inner Ring and 2 Rubber Seals. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage and has an oil groove and an oil hole. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 80X110X54mm.
| NA | 69 | 16 | UU | |
|---|---|---|---|---|
| Double Row Caged Needle Roller Bearing | Dimension Series 69 | 80mm - Bore Size | 2 Rubber Seals | Including Inner Ring |
Product Information
Technical Data
Inside Diameter (mm):
80
Outside Diameter (mm):
110
Outer Ring Width (mm):
54
Inner Ring Width (mm):
55
Nominal Roller Set Bore Diameter (mm):
90
Dynamic Load Rating (kN):
132
Static Load Rating (kN):
317
Allowable Rotational Speed (r/min):
2000
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-20°C/-4°F
Seals Or Shields:
Two Rubber Seals
DescriptionThe NA6916UU is a Standard Duty, Double Row Machined Needle Roller Bearing with an Inner Ring and 2 Rubber Seals. The Inner Ring is separable from the Cage and Outer Ring, while the Outer Ring is fixed to the Cage and has an oil groove and an oil hole. Bearings with an Inner Ring are used when the shaft being used isn't heat-treated and finished by grinding. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 80X110X54mm.
Product InformationBRAND: SKU:na6916uu-iko AVAILABILITY:In Stock ✅ WEIGHT:1.57 kg Technical DataInside Diameter (mm):80 Outside Diameter (mm):110 Outer Ring Width (mm):54 Inner Ring Width (mm):55 Nominal Roller Set Bore Diameter (mm):90 Dynamic Load Rating (kN):132 Static Load Rating (kN):317 Allowable Rotational Speed (r/min):2000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F Seals Or Shields:Two Rubber Seals | ||||||||||
