Description

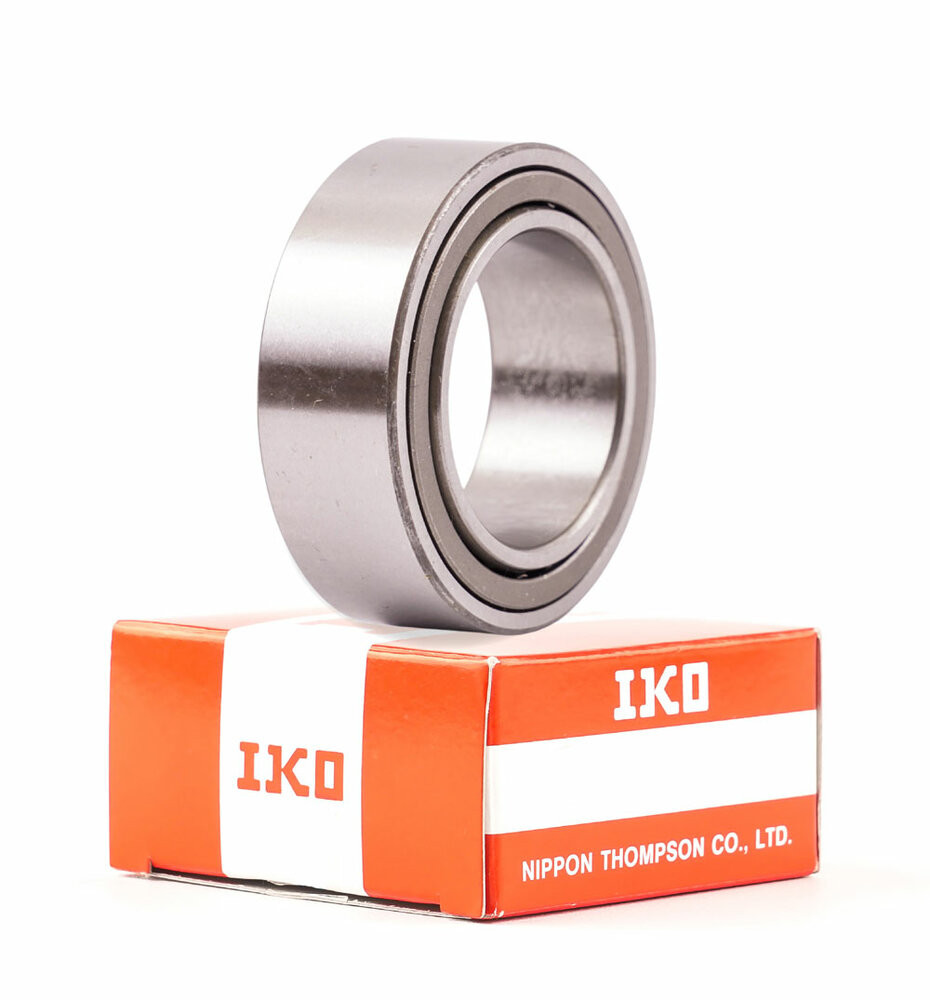

The NAF72012 is a Light Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. Both the Inner and Outer Ring are easily separable from the Needle Roller Cage. The Needle Roller Cage means that these Bearings have excellent rotational performance and a simple structure with high accuracy. These Bearings are most suitable for mass-production, high running accuracy applications like Machine Tools, Printing Equipment, and Textile Machinery. The bearing dimensions are 7X20X12MM.
| NAF | 7 | 20 | 12 | |
|---|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 7mm Bore | 20mm OD | 12mm Width | Including Inner Ring |
Product Information
Technical Data
Inside Diameter (mm):
7
Outside Diameter (mm):
20
Width (mm):
12
Nominal Roller Set Bore Diameter (mm):
10
Dynamic Load Rating (kN):
5.94
Static Load Rating (kN):
6
Allowable Rotational Speed (r/min):
50000
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-20°C/-4°F
DescriptionThe NAF72012 is a Light Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. Both the Inner and Outer Ring are easily separable from the Needle Roller Cage. The Needle Roller Cage means that these Bearings have excellent rotational performance and a simple structure with high accuracy. These Bearings are most suitable for mass-production, high running accuracy applications like Machine Tools, Printing Equipment, and Textile Machinery. The bearing dimensions are 7X20X12MM.
Product InformationBRAND: SKU:naf72012-iko AVAILABILITY:In Stock ✅ WEIGHT:0.023 kg Technical DataInside Diameter (mm):7 Outside Diameter (mm):20 Width (mm):12 Nominal Roller Set Bore Diameter (mm):10 Dynamic Load Rating (kN):5.94 Static Load Rating (kN):6 Allowable Rotational Speed (r/min):50000 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-20°C/-4°F | ||||||||||
