Description

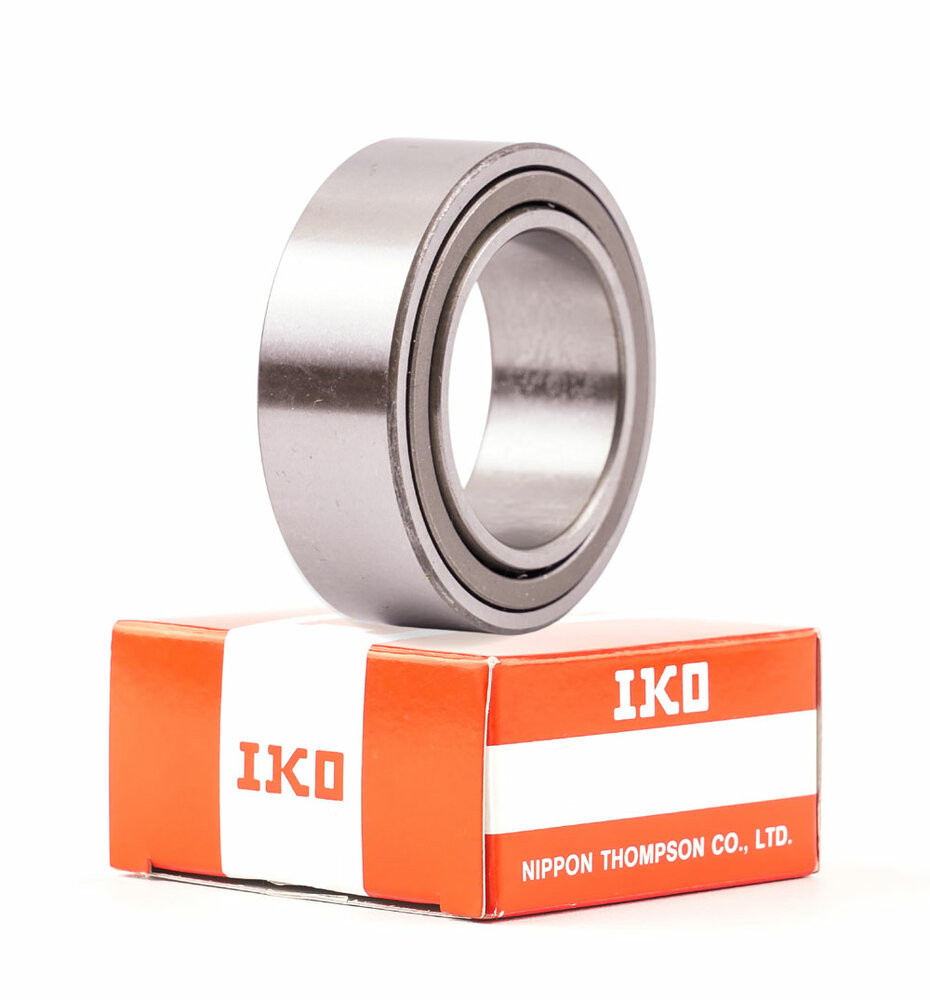

The NAO50x68x20-IS1-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. Both the Inner and Outer Ring are easily separable from the Needle Roller Cage and the Inner Ring includes a Lubrication hole. The Needle Roller Cage means that these Bearings have excellent rotational performance and a simple structure with high accuracy. These Bearings are most suitable for mass-production, high running accuracy applications like Machine Tools, Printing Equipment, and Textile Machinery. The bearing dimensions are 50X68X20mm.
The IKO equivalent is NAF506820.
| NAO | 50 | 68 | 20 | IS1 | XL | |
|---|---|---|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 50mm Bore | 68mm OD | 20mm Width | Lubrication Hole in the Inner Ring | X-Life Bearing | Including Inner Ring |
Product Information
Technical Data
Inside Diameter (mm):
50
Outside Diameter (mm):
68
Width (mm):
20
Raceway Diameter Inner Ring (mm):
55
Fatigue Load Rating (kN):
10.9
IKO Equivalent:
NAF506820
Dynamic Load Rating (kN):
32
Limiting Speed Rating (r/min):
8500
Reference Speed Rating (r/min):
5100
Static Load Rating (kN):
66
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-30°C/-22°F
DescriptionThe NAO50x68x20-IS1-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing with an Inner Ring. Both the Inner and Outer Ring are easily separable from the Needle Roller Cage and the Inner Ring includes a Lubrication hole. The Needle Roller Cage means that these Bearings have excellent rotational performance and a simple structure with high accuracy. These Bearings are most suitable for mass-production, high running accuracy applications like Machine Tools, Printing Equipment, and Textile Machinery. The bearing dimensions are 50X68X20mm. The IKO equivalent is NAF506820.
Product InformationBRAND: SKU:nao50x68x20-is1-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.23 kg Technical DataInside Diameter (mm):50 Outside Diameter (mm):68 Width (mm):20 Raceway Diameter Inner Ring (mm):55 Fatigue Load Rating (kN):10.9 IKO Equivalent:NAF506820 Dynamic Load Rating (kN):32 Limiting Speed Rating (r/min):8500 Reference Speed Rating (r/min):5100 Static Load Rating (kN):66 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||||||||
