FAG

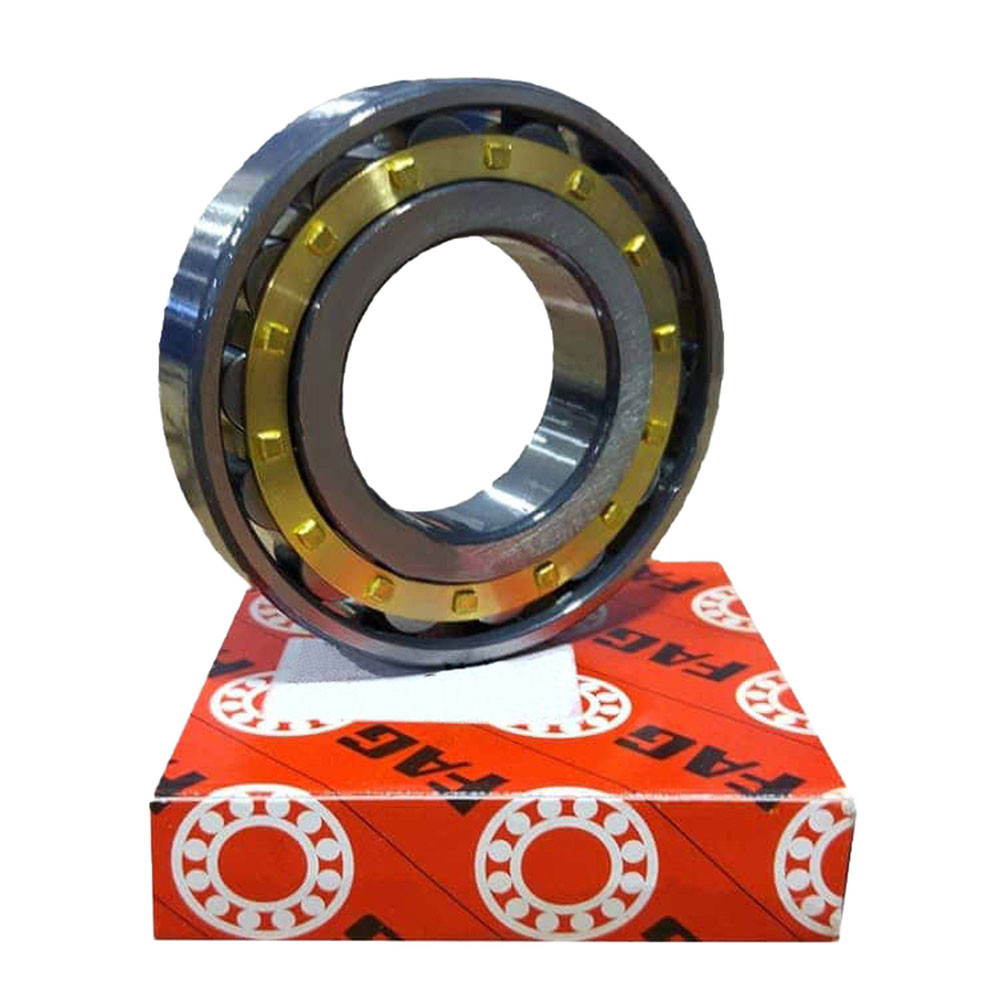

NJ2232-E-M1 - FAG Cylindrical Roller Bearing - 160x290x80mm
SKU: nj2232-e-m1-fag
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
This NJ2232-E-M1 bearing is a single row cylindrical roller bearing, it has 1 flange on the inner ring, an increased capacity design, a two-piece solid brass cage, roller guided and a normal radial internal clearance. The bearing's dimensions are 160x290x80.
| NJ | 22 | 32 | E | M1 | |
|---|---|---|---|---|---|
| Two Flanges on Outer Ring and One on Inner Ring | Light, Wide Series | 160mm - Bore Size | Increased Capacity Design | Solid Brass Cage, Two-piece, Roller-guided | Normal Radial Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm):
160mm
Outside Diameter (mm):
290mm
Width (mm):
80mm
Cage Type:
Brass
Seals Or Shields:
Open Type
Clearance:
Standard
Dynamic Load Rating (kN):
940
Static Load Rating (kN):
1170
Fatigue Load Rating (kN):
171
Reference Speed Rating (r/min):
1670
Limiting Speed Rating (r/min):
3800
DescriptionThis NJ2232-E-M1 bearing is a single row cylindrical roller bearing, it has 1 flange on the inner ring, an increased capacity design, a two-piece solid brass cage, roller guided and a normal radial internal clearance. The bearing's dimensions are 160x290x80.
Product InformationBRAND: SKU:nj2232-e-m1-fag AVAILABILITY:In Stock ✅ WEIGHT:23.9 kg Technical DataInside Diameter (mm):160mm Outside Diameter (mm):290mm Width (mm):80mm Cage Type:Brass Seals Or Shields:Open Type Clearance:Standard Dynamic Load Rating (kN):940 Static Load Rating (kN):1170 Fatigue Load Rating (kN):171 Reference Speed Rating (r/min):1670 Limiting Speed Rating (r/min):3800 | ||||||||||||
