Description

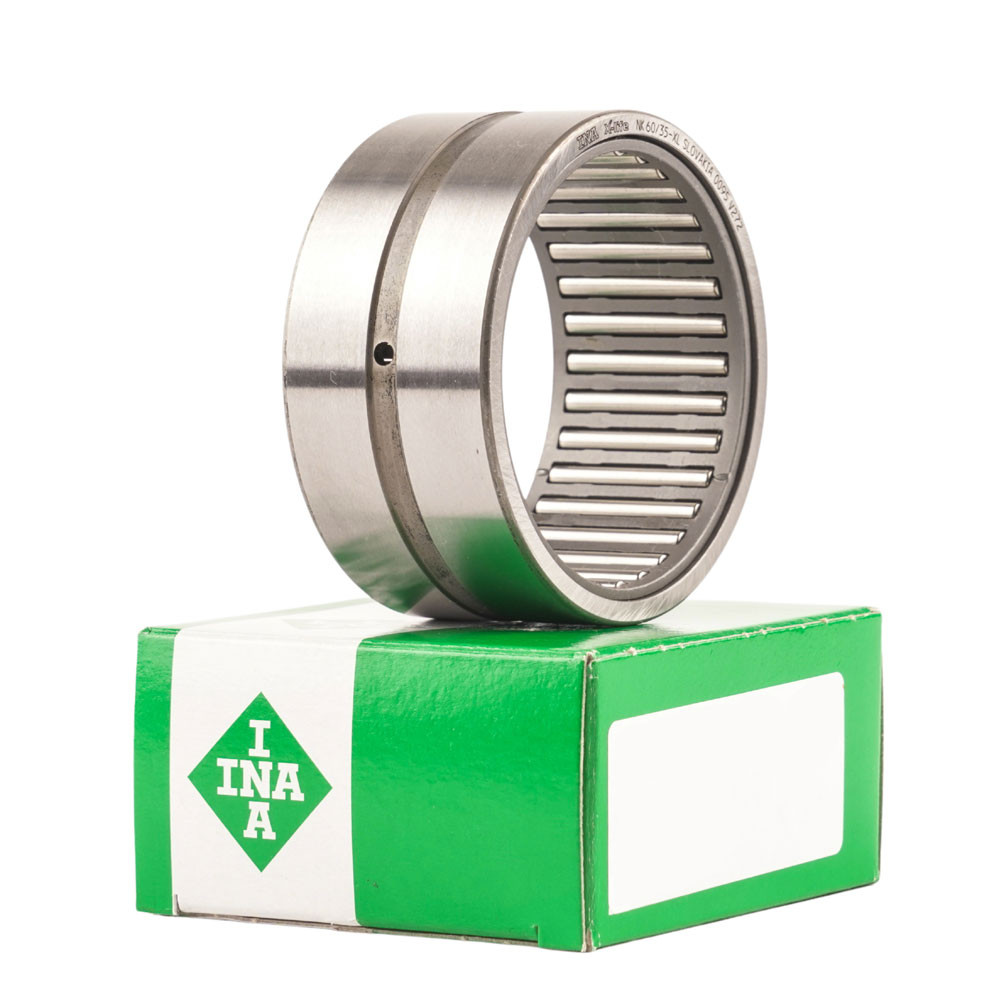

The NK110/30-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 110x130x30mm.
The IKO equivalent is TAF11013030.
| NK | 110 | /30 | XL |
|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 110mm Bore Size | 30mm Width | X-Life Bearing |
Product Information
Technical Data
Inside Diameter (mm):
110
Outside Diameter (mm):
130
Width (mm):
30
Under Roller Diameter (mm):
110
IKO Equivalent:
TAF11013030
Dynamic Load Rating (kN):
111
Fatigue Load Rating (kN):
36
Limiting Speed Rating (r/min):
4200
Reference Speed Rating (r/min):
2800
Static Load Rating (kN):
210
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-30°C/-22°F
DescriptionThe NK110/30-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 110x130x30mm. The IKO equivalent is TAF11013030.
Product InformationBRAND: SKU:nk110/30-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.608 kg Technical DataInside Diameter (mm):110 Outside Diameter (mm):130 Width (mm):30 Under Roller Diameter (mm):110 IKO Equivalent:TAF11013030 Dynamic Load Rating (kN):111 Fatigue Load Rating (kN):36 Limiting Speed Rating (r/min):4200 Reference Speed Rating (r/min):2800 Static Load Rating (kN):210 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||
