INA

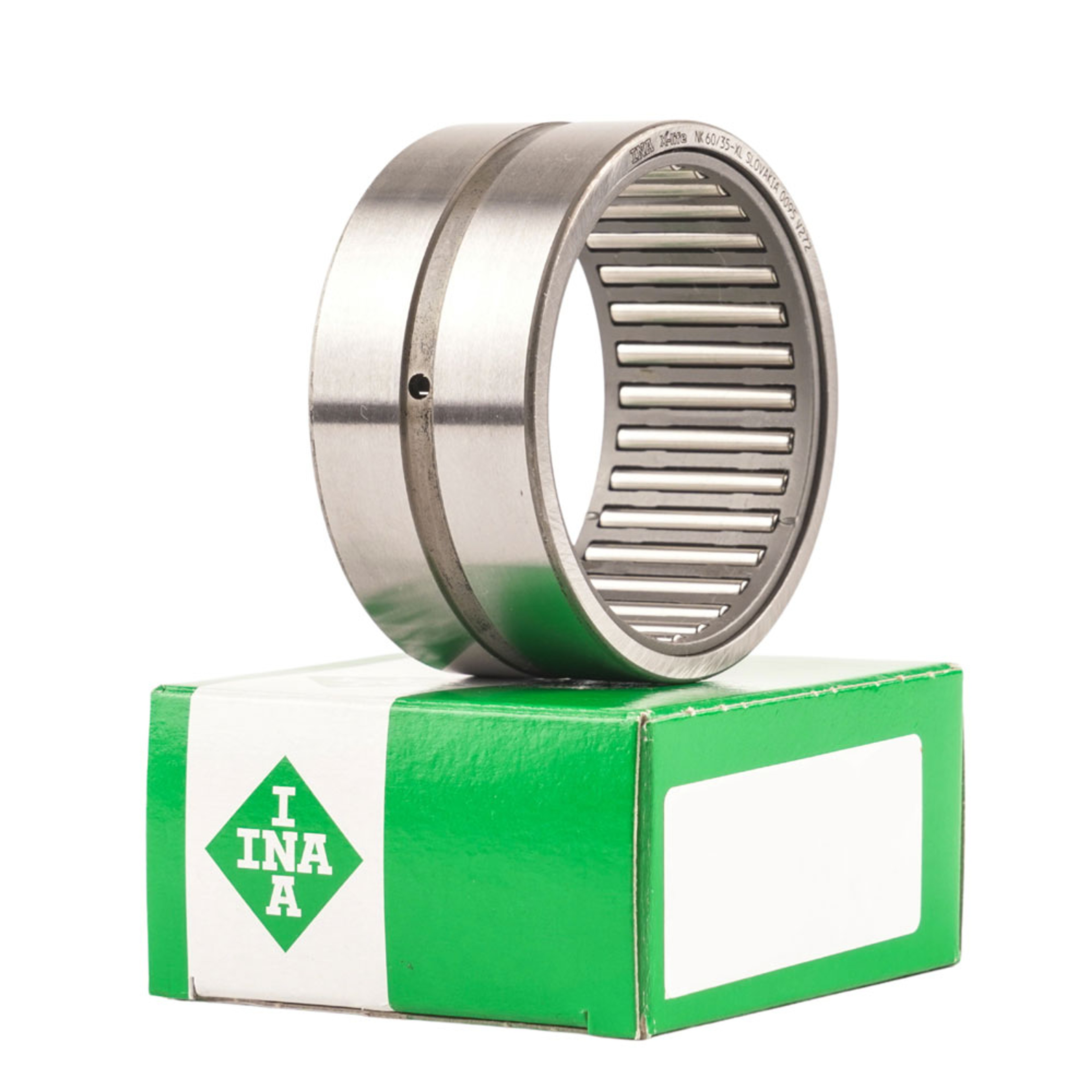

NK70/35-XL INA Machined Needle Roller Bearing - 70X85X35MM
SKU: nk70/35-xl-ina
Availability: In Stock ✅
BULK PRICING: Click Here to Enquire
Description
The NK70/35-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 70x85x35mm.
The IKO equivalent is TAF708535.
| NK | 70 | /35 | XL |
|---|---|---|---|
| Single Row Caged Needle Roller Bearing | 70mm Bore Size | 35mm Width | X-Life Bearing |
Product Information
Technical Data
Inside Diameter (mm):
70
Outside Diameter (mm):
85
Width (mm):
35
Under Roller Diameter (mm):
70
IKO Equivalent:
TAF708535
Dynamic Load Rating (kN):
71
Fatigue Load Rating (kN):
27
Limiting Speed Rating (r/min):
6600
Reference Speed Rating (r/min):
4300
Static Load Rating (kN):
144
Max. Operating Temperature:
120°C/248°F
Min. Operating Temperature:
-30°C/-22°F
DescriptionThe NK70/35-XL is a Light Duty Open Type, Single Row Machined Needle Roller Bearing. This Bearing has no Inner Ring, meaning the Needle Rollers are mounted directly onto the shaft. As such, the Bearing has better running accuracy as it isn't affected by assembling an Inner Ring with the shaft. In caged Needle Roller Bearings like this one, the Needles are precisely guided by the Cage to achieve ideal load distribution. These Bearings are designed for high load carrying capacity in radially compact arrangements and are used in most general purpose applications. The Bearing's dimensions are 70x85x35mm. The IKO equivalent is TAF708535.
Product InformationBRAND: SKU:nk70/35-xl-ina AVAILABILITY:In Stock ✅ WEIGHT:0.382 kg Technical DataInside Diameter (mm):70 Outside Diameter (mm):85 Width (mm):35 Under Roller Diameter (mm):70 IKO Equivalent:TAF708535 Dynamic Load Rating (kN):71 Fatigue Load Rating (kN):27 Limiting Speed Rating (r/min):6600 Reference Speed Rating (r/min):4300 Static Load Rating (kN):144 Max. Operating Temperature:120°C/248°F Min. Operating Temperature:-30°C/-22°F | ||||||||
